FOX XV2 Rear Shock Air Sleeve 7.875 × 2.00 / 2.25 – 806-29-076-KIT

FOX XV2 rear shock air sleeve, listed under service-set reference 806-29-076-KIT. The historical FOX parts list documents base number 806-29-076 as “06 Sleeve Assembly XV2” for 7.875 × 2.00-inch and 7.875 × 2.25-inch shock applications.

Archived specifications for 806-29-076

• Model-year reference: 2006
• Version: XV2
• Listed bore: 1.500 in (38.10 mm)
• Listed outside diameter: 2.025 in (51.44 mm)
• Listed overall length: 3.948 in (100.28 mm)
• Listed shock sizes: 7.875 × 2.00 in and 7.875 × 2.25 in (approximately 200.03 mm eye-to-eye, with 50.80 mm or 57.15 mm stroke)

These are archived specifications for the base part number, not independent measurements of the stocked sleeve. Shock size describes the intended application, not the sleeve's physical length.

Identification and compatibility

The shop reference includes the suffix -KIT, while the archive entry checked lists 806-29-076 without that suffix. Exact kit contents and equivalence have not been independently confirmed. The previous 2005–2010 application range is not established by this entry.

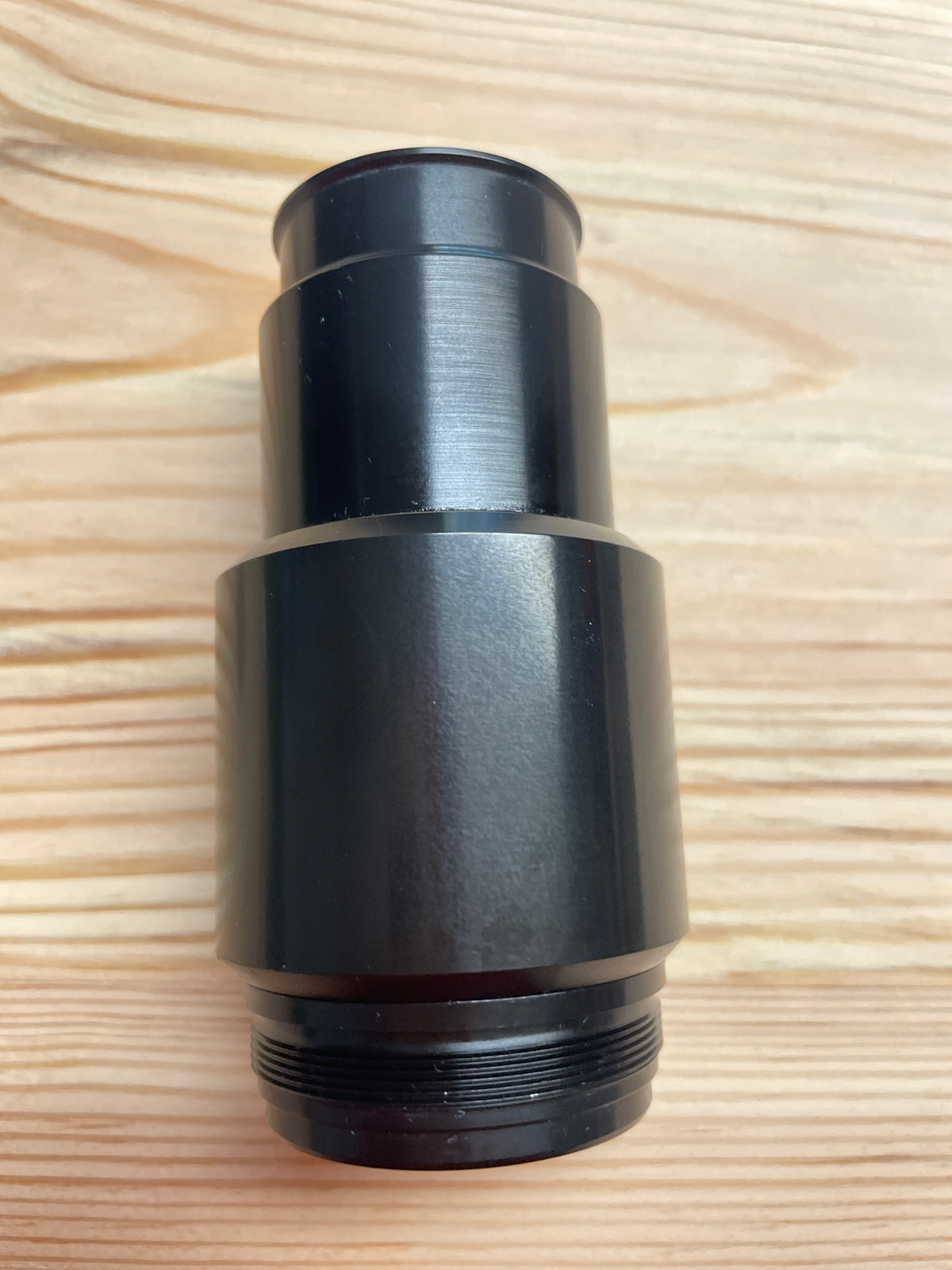

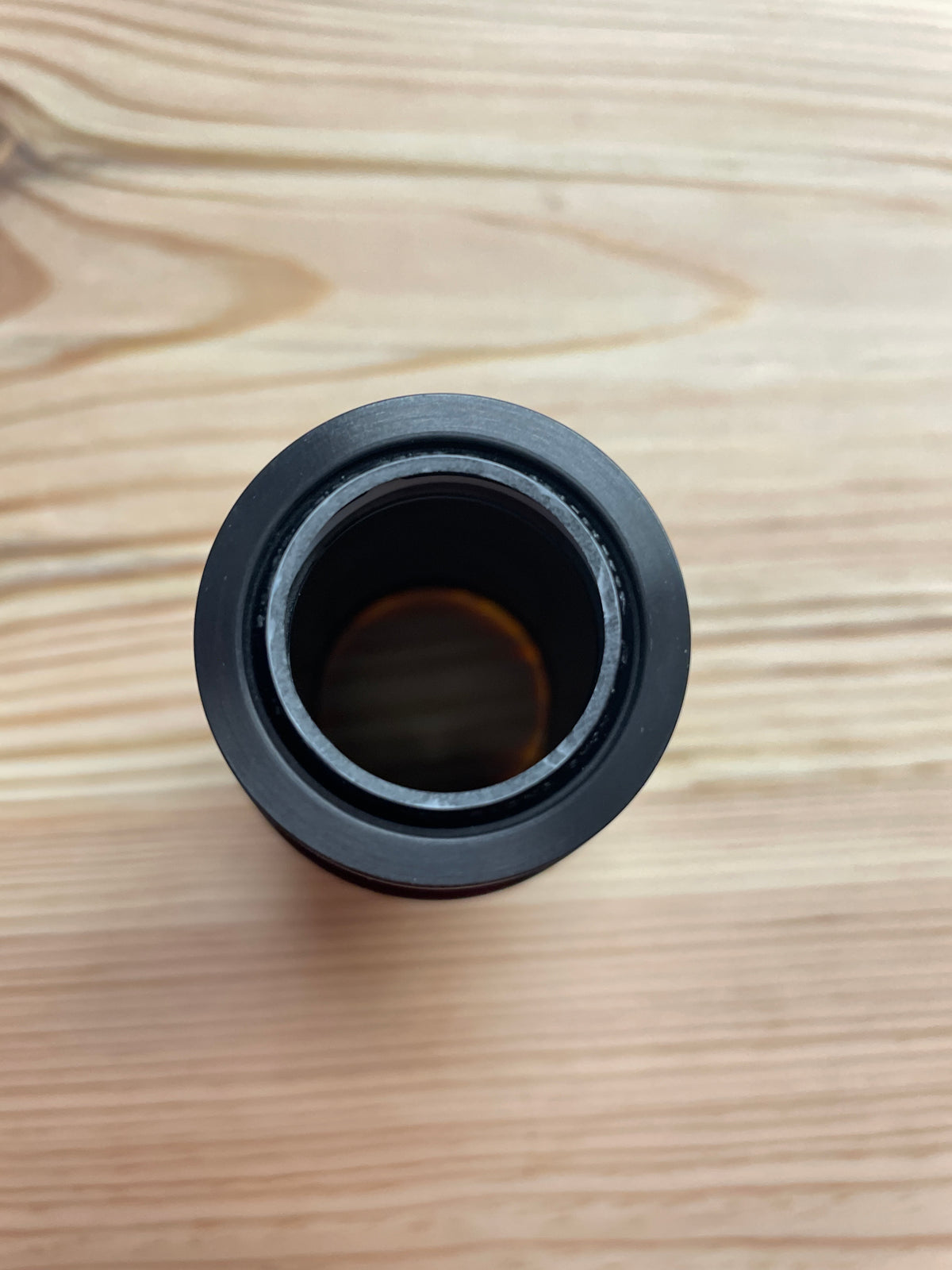

The photographs show a black stepped sleeve with an externally threaded end. The exact archive entry does not name a specific shock model. Match the complete reference, XV2 version, dimensions and interfaces against the parts documentation for your exact shock before ordering.

Do not assume interchangeability with XV1 or other XV2 sleeves, or compatibility based solely on matching eye-to-eye length and stroke.

Supplied equipment

This listing is for the pictured air sleeve, not a complete rear shock or fork component. The presence and condition of internal seals, bearings and wipers have not been independently verified. Additional service parts, fluids and hardware are not specified as included.

Installation should be carried out by an experienced suspension technician following the correct service procedure for the identified shock.
