FOX 32 Terralogic 130 mm Cartridge Service Seal Kit – 803-00-547

FOX service seal kit for compatible FOX 32 FIT Terralogic damper cartridges in the 130 mm travel configuration. Part number: 803-00-547.

FOX-documented identification

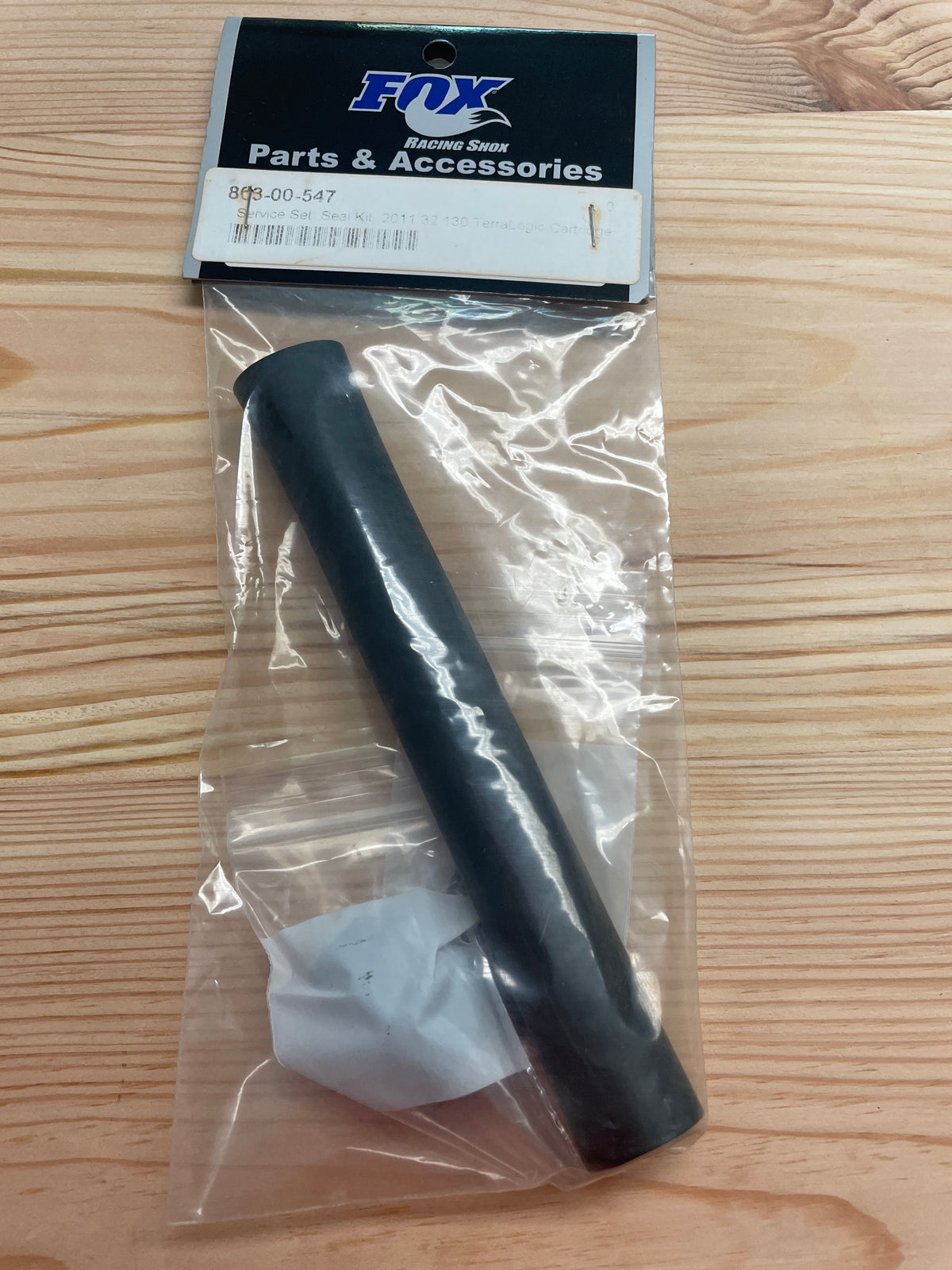

FOX identifies this part as “Service Set: Seal Kit, 2011 32 130 TerraLogic Cartridge”. The photographed FOX packaging also carries part number 803-00-547.

The 2011 reference is part of FOX's service-part description. FOX also lists this kit in its 2013–2016 FIT Terralogic cartridge rebuild procedure. This does not establish universal compatibility with every fork from 2011 to 2016: match the kit number to the specification for your exact cartridge.

Contents

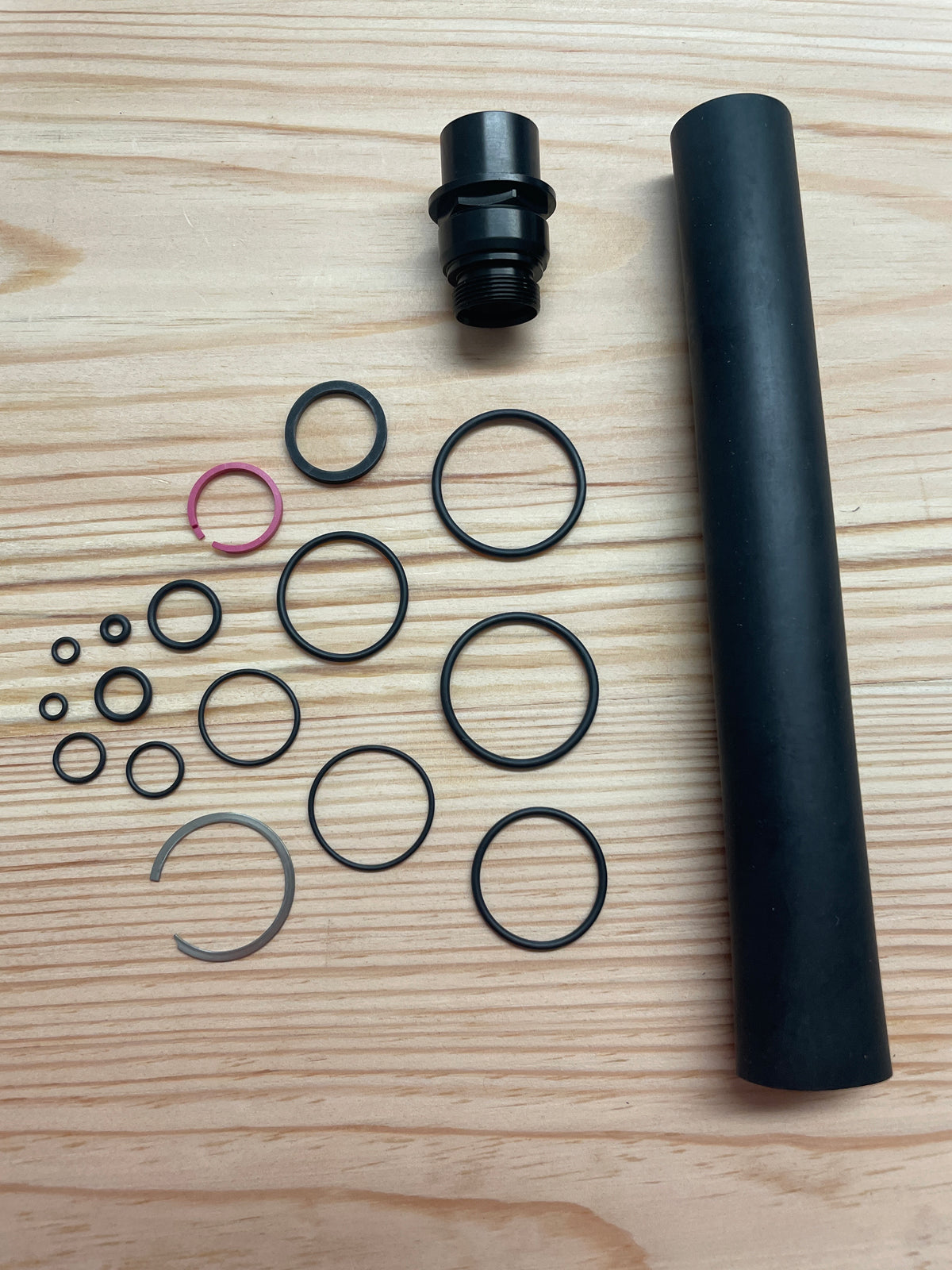

The product photographs show seals, O-rings, retaining rings, a long black tubular component and an additional black threaded component. Individual component identities, materials and dimensions have not been independently verified. Refer to the photographs for a visual overview of the supplied set.

Compatibility

Intended for the matching 130 mm FOX 32 Terralogic cartridge application. FOX lists separate service kits for other Terralogic travel configurations; do not substitute this kit for 80–100, 120, 140 or 150 mm versions without explicit parts-documentation confirmation.

This is a cartridge service set, not a complete damper cartridge, complete fork or universal lower-leg and air-spring rebuild kit. Compatibility with RL, RLC, CTD or FIT4 dampers is not established.

For professional suspension service. FOX specifies stringent cleanliness requirements for Terralogic inertia-valve components. Installation and damper service should be performed by a qualified suspension technician following the correct FOX procedure. Fluids and service tools are not specified as included.
