Fox

FOX 32 FIT RLC Damper Cartridge – 820-04-203

Sale price: €299,00 Regular price: €349,00 Save 14%

Why buy here

  • Shipped from our workshop in Berlin
  • Expert help with fit and compatibility
  • Parts for classics, chosen by specialists

Product details

Description

FOX fork damper cartridge, listed as a FOX 32 FIT RLC assembly under part number 820-04-203. A replacement damping component, not a complete fork, air spring or TALAS travel-adjustment assembly.

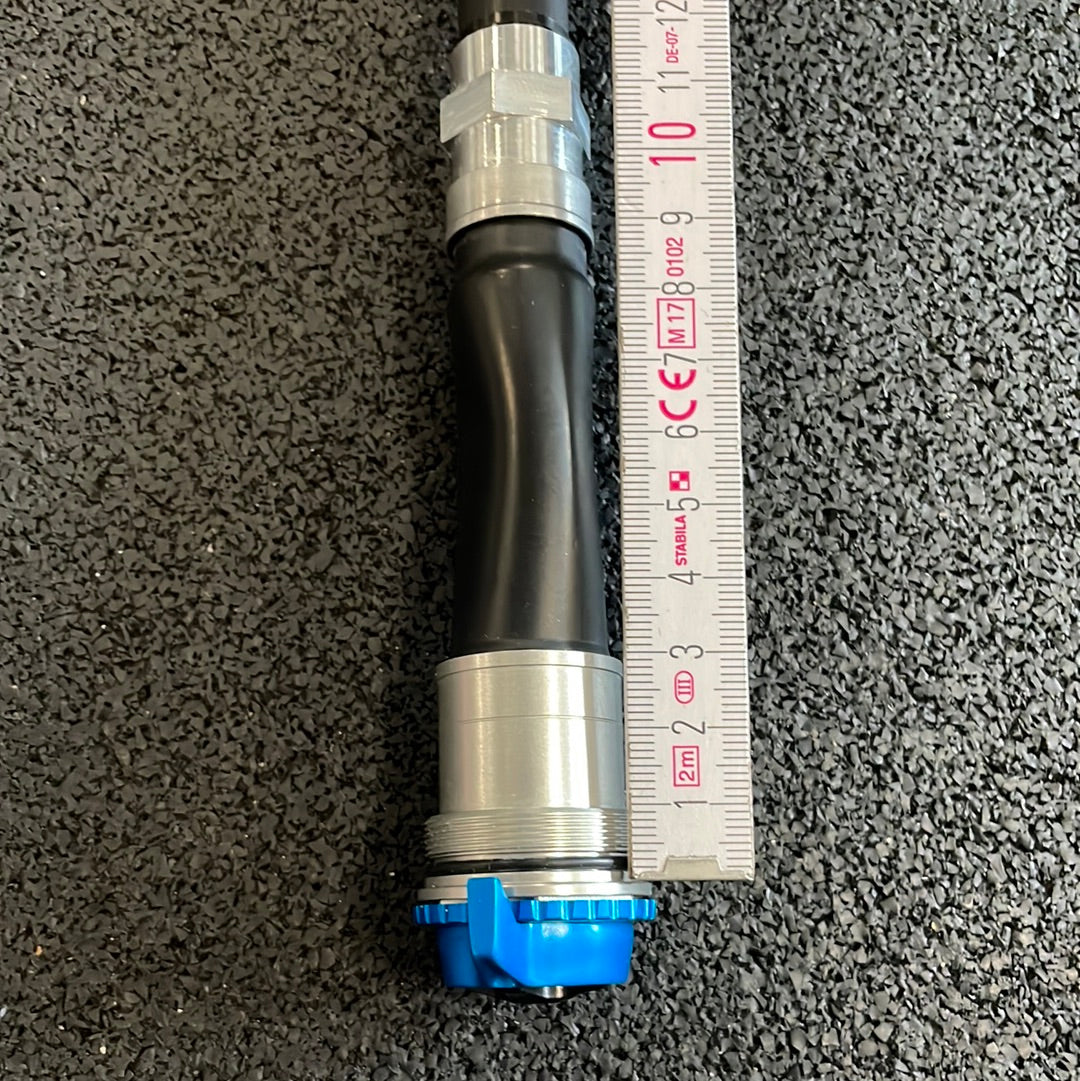

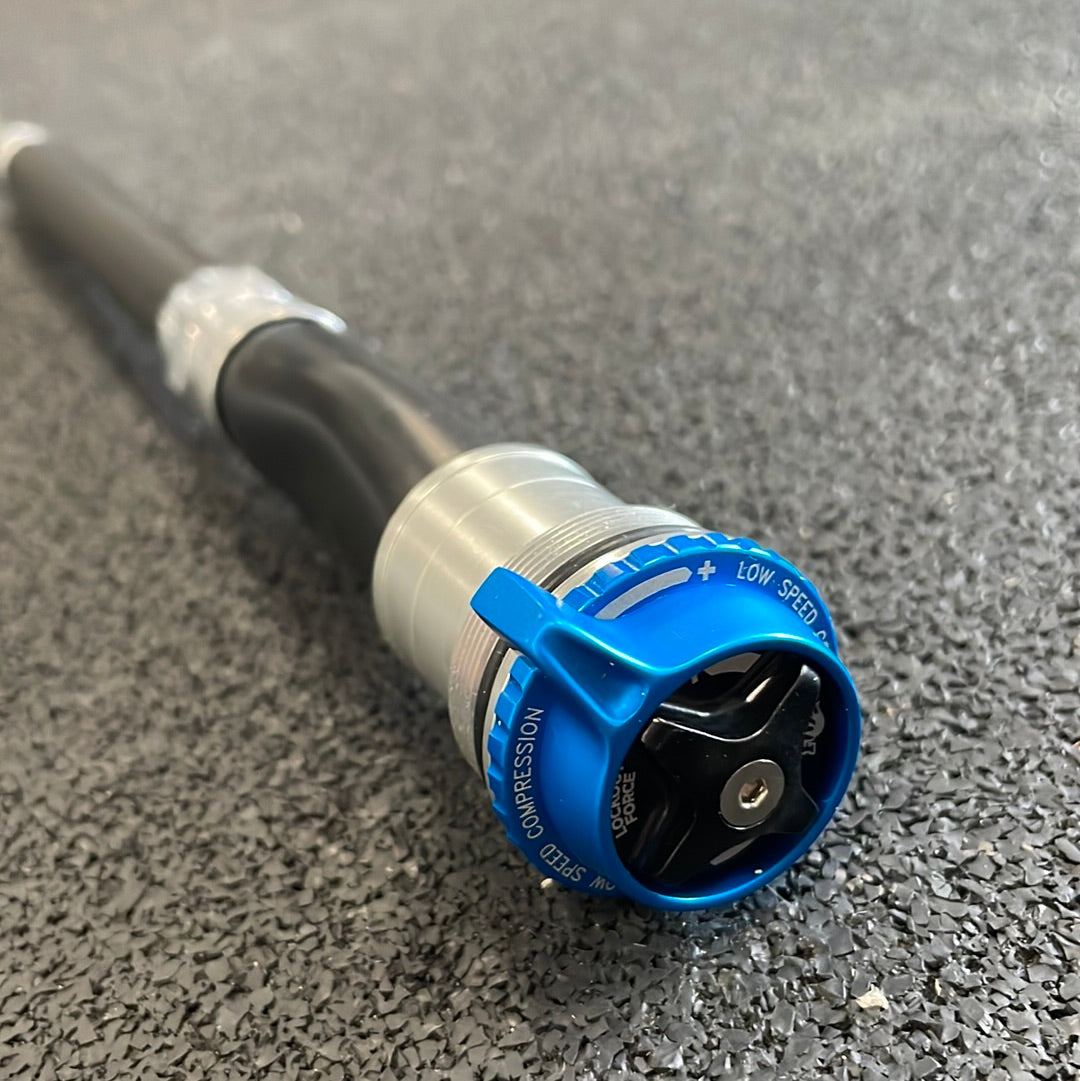

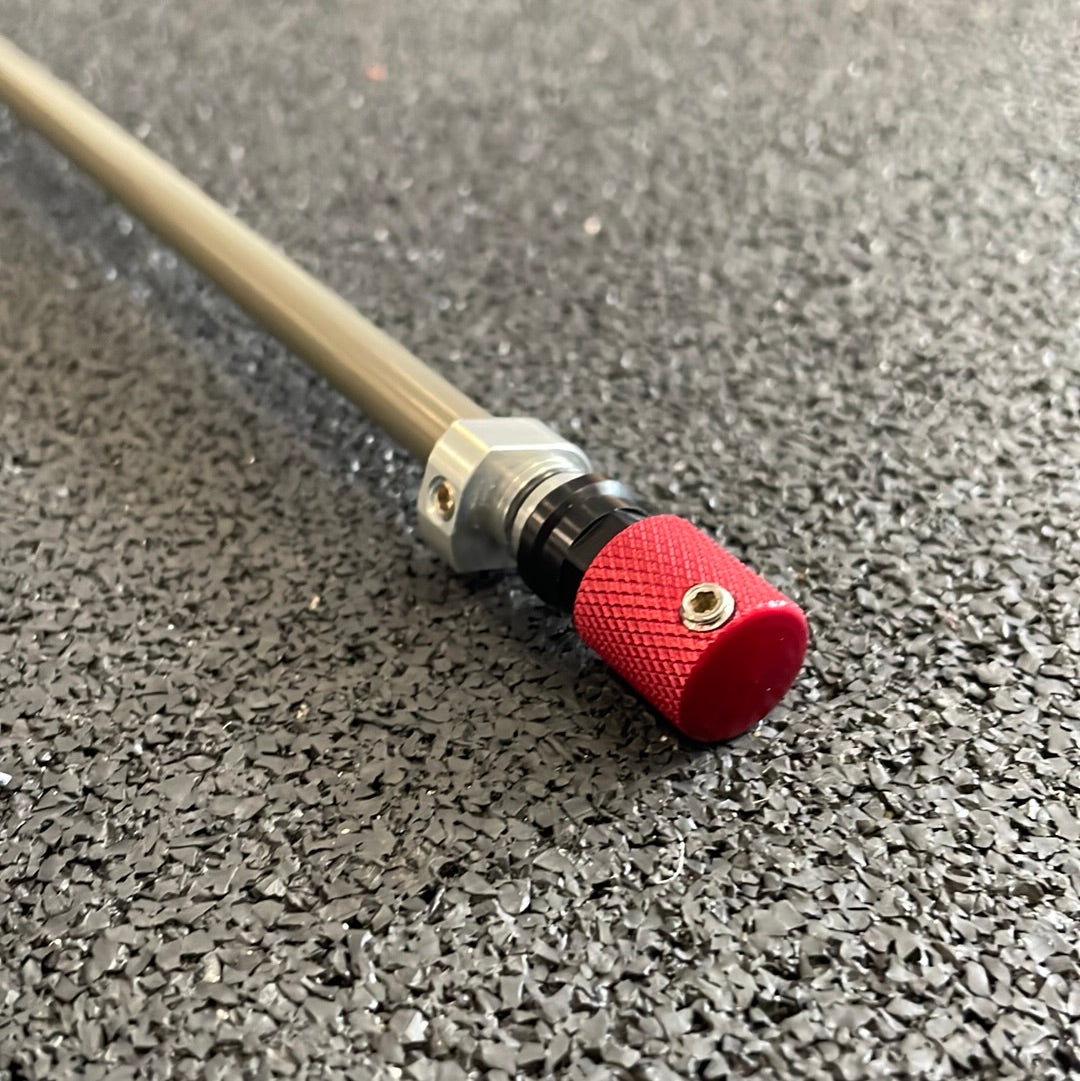

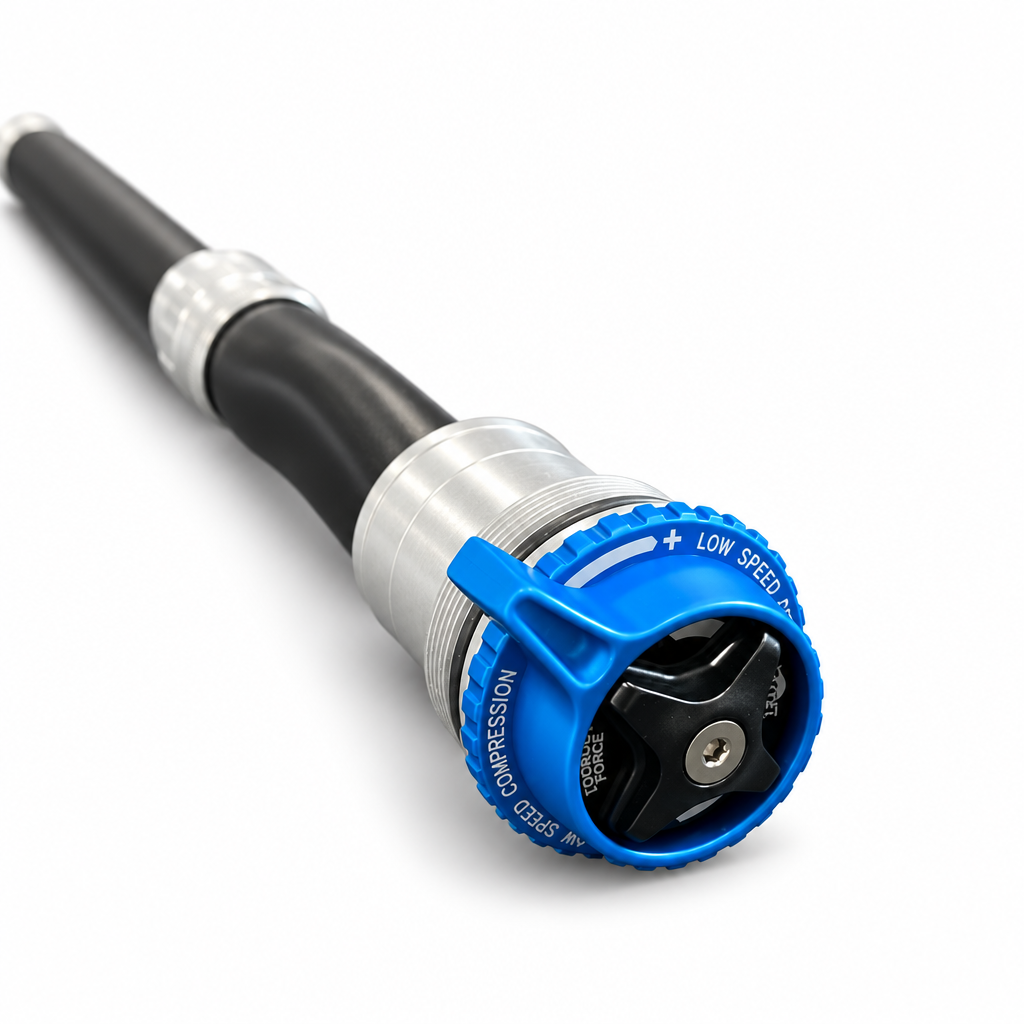

The photographs show a blue low-speed compression dial and lockout lever, a black lockout-force adjuster and a red adjuster at the shaft end.

Identification and compatibility

The previous shop listing describes an 80–120 mm application. This travel range has not been independently confirmed for part number 820-04-203. No direct match was located in the parts lists checked during this review, so no exact model year, wheel size or universal retrofit compatibility is specified.

Match the complete part number, damper version, mounting interfaces and dimensions against the service specification for your exact fork before ordering. Compatibility with all FOX 32 forks, TALAS models or other RLC cartridges must not be assumed. This cartridge is not a travel-adjustment unit.

Recorded dimensions — verification required

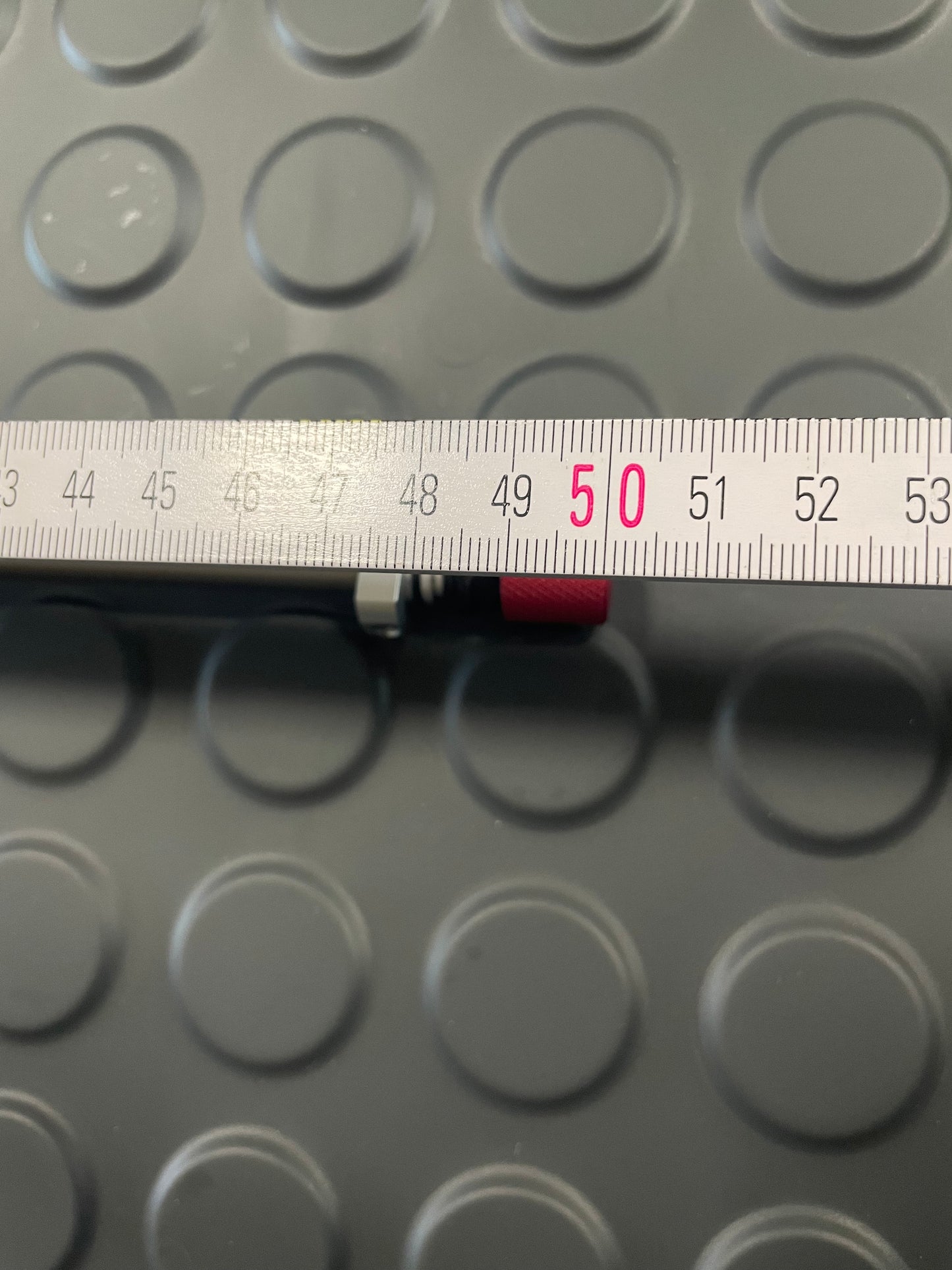

  • Listed maximum overall length: 501 mm

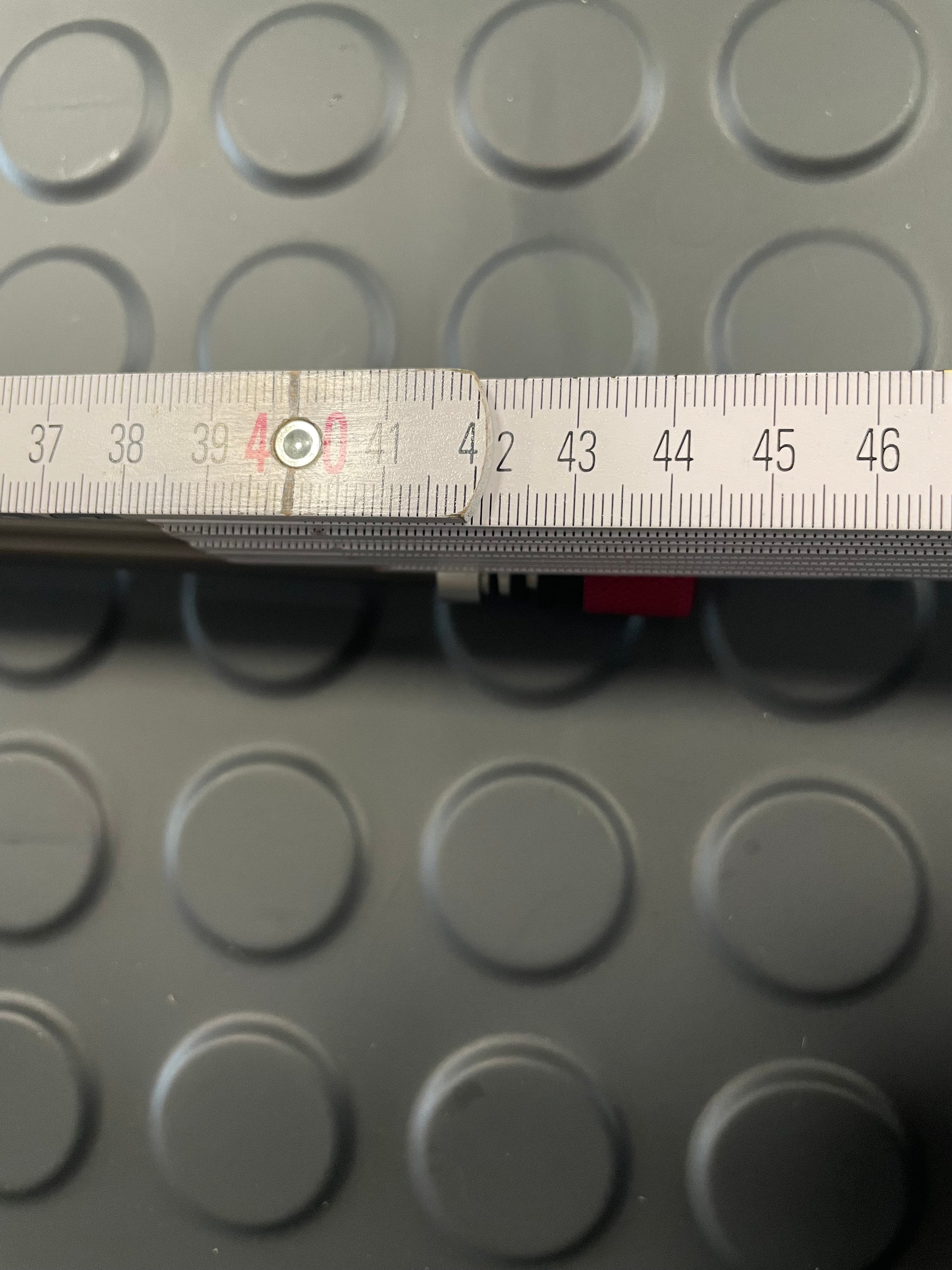

  • Listed minimum overall length: 443 mm
  • Listed thread diameter: 30 mm

These figures are retained from the existing shop record, not independently verified measurements. The maximum and minimum lengths differ by 58 mm; measurement reference points and whether these represent the full extended and compressed positions require confirmation. Do not use these figures as proof of cartridge stroke or fork travel. Thread pitch is not specified.

Installation and supplied equipment

Confirm the dimensions, exact application, item condition, service history and any additional mounting hardware or fluids required before purchase. Additional accessories are not specified as included. Installation should be carried out by an experienced suspension mechanic following the correct FOX procedure for the identified fork and damper.
