FOX 34 TALAS 5 Assembly, 29er 150 mm, 2014–2015 – 820-01-332

FOX TALAS 5 spring and travel-adjustment assembly, listed part number 820-01-332, for a FOX 34 29-inch fork with 150 mm travel.

FOX archive reference

FOX's “2014–2015 34mm TALAS 5 29” parts documentation lists 820-01-332-KIT as “Service Set: TALAS 5, 34, 29, 150, Cartridge Assembly Complete”. The number in this shop listing omits the catalogue's -KIT suffix. Confirm the identification of the supplied item and any separately required installation parts before purchase.

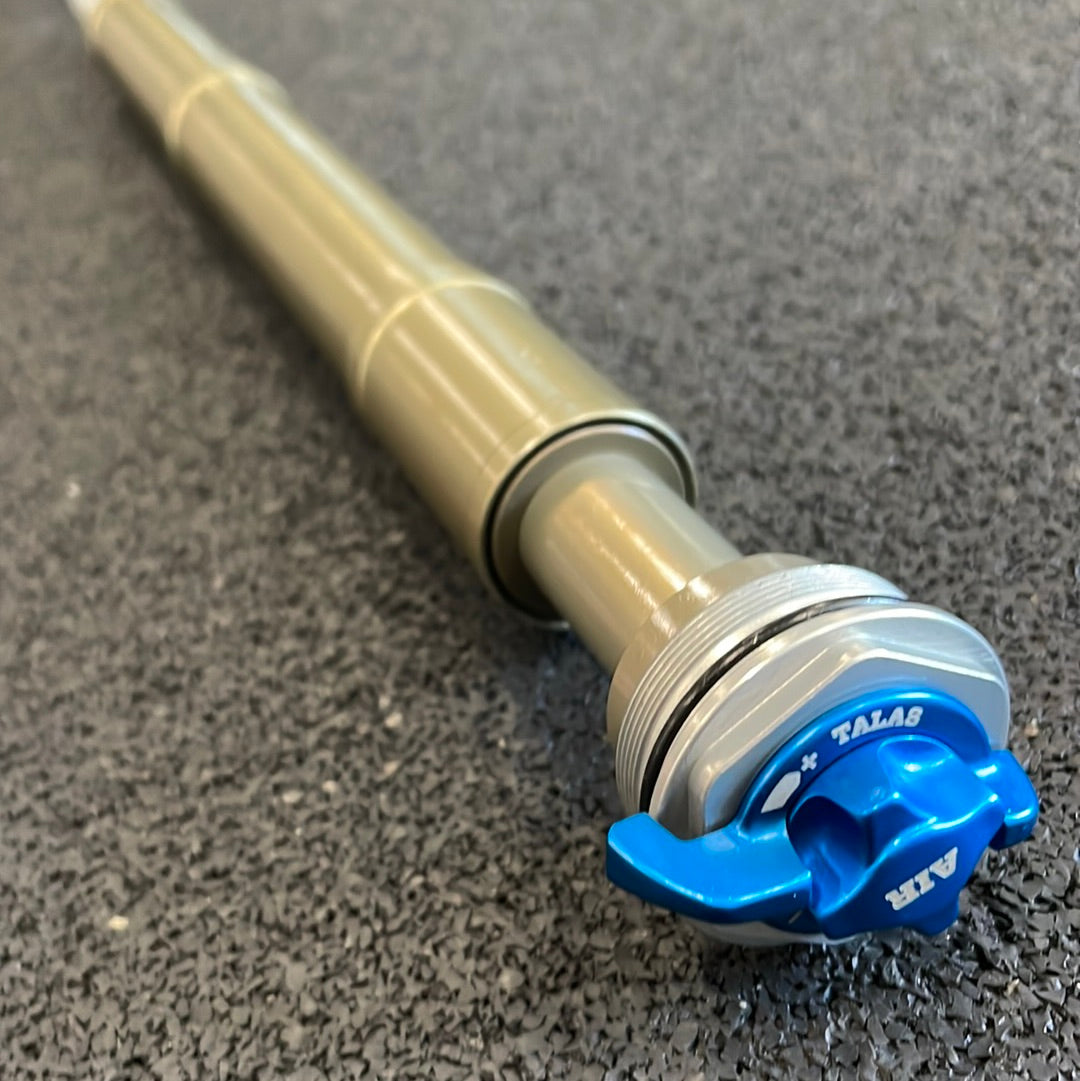

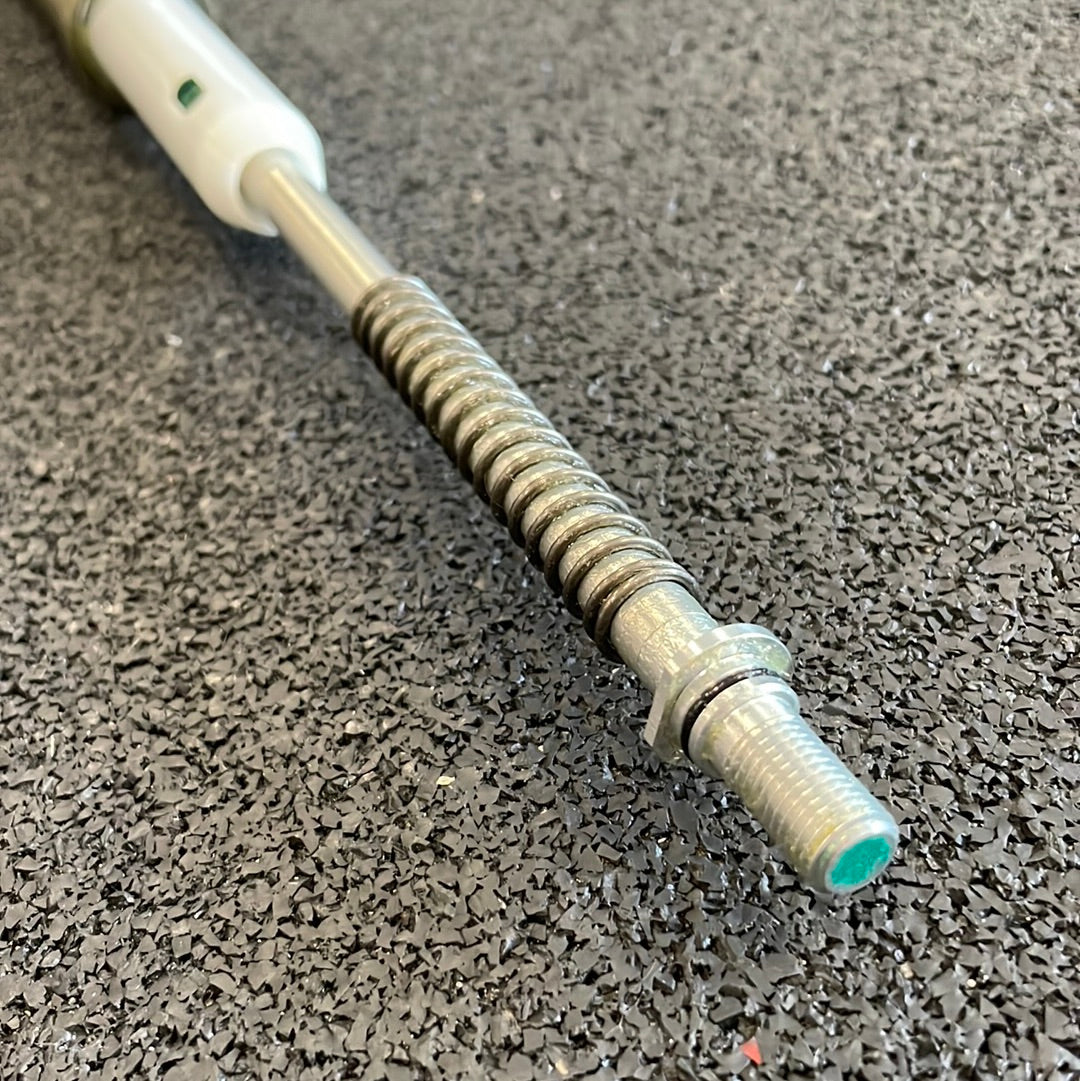

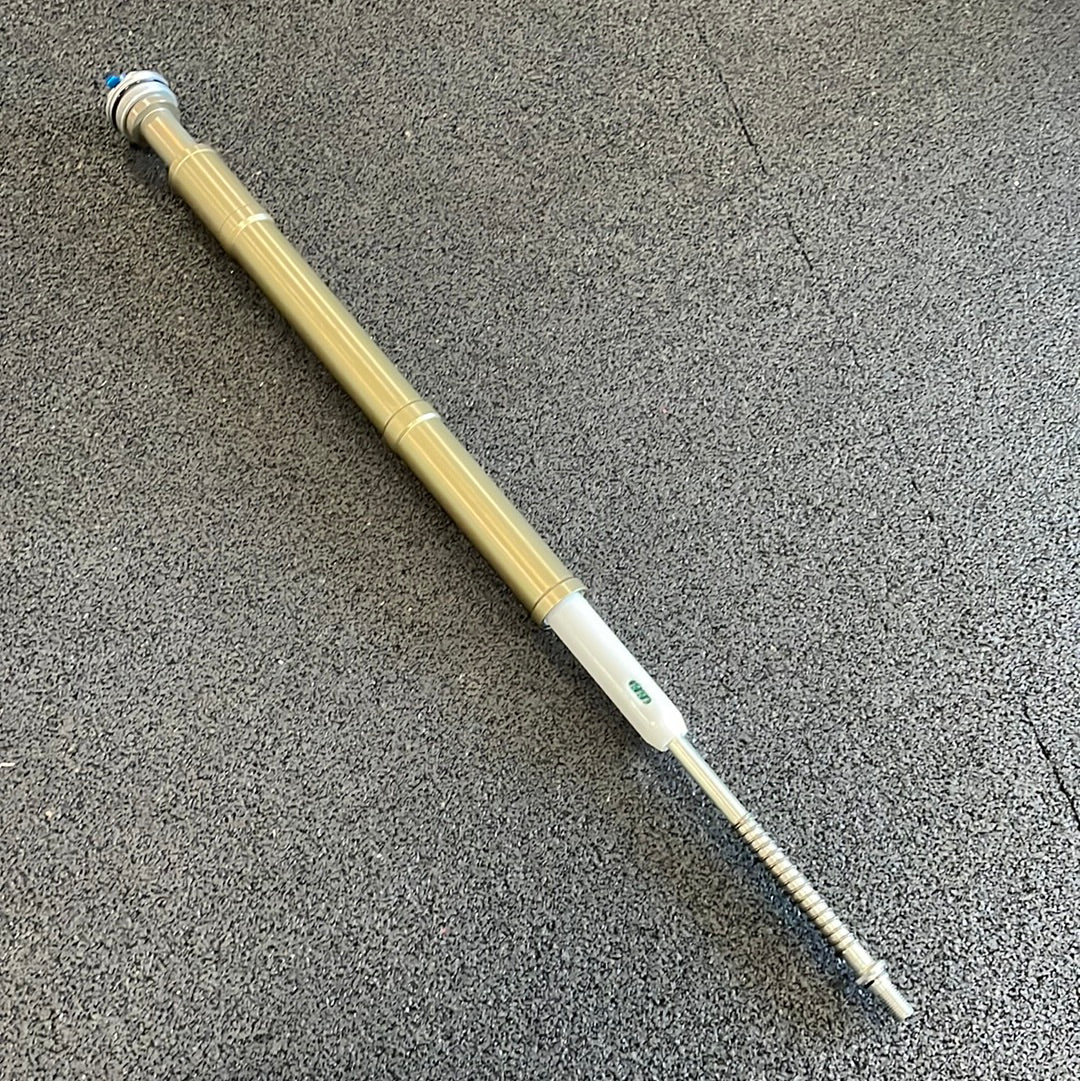

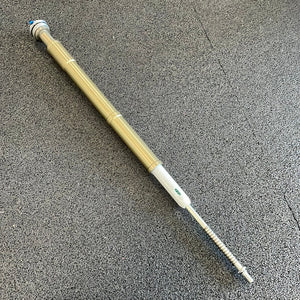

This is a TALAS spring-side travel-adjustment assembly, not a damping cartridge, seal-only service kit or complete fork. The photos show the assembly with a blue TALAS control and its lower mounting end.

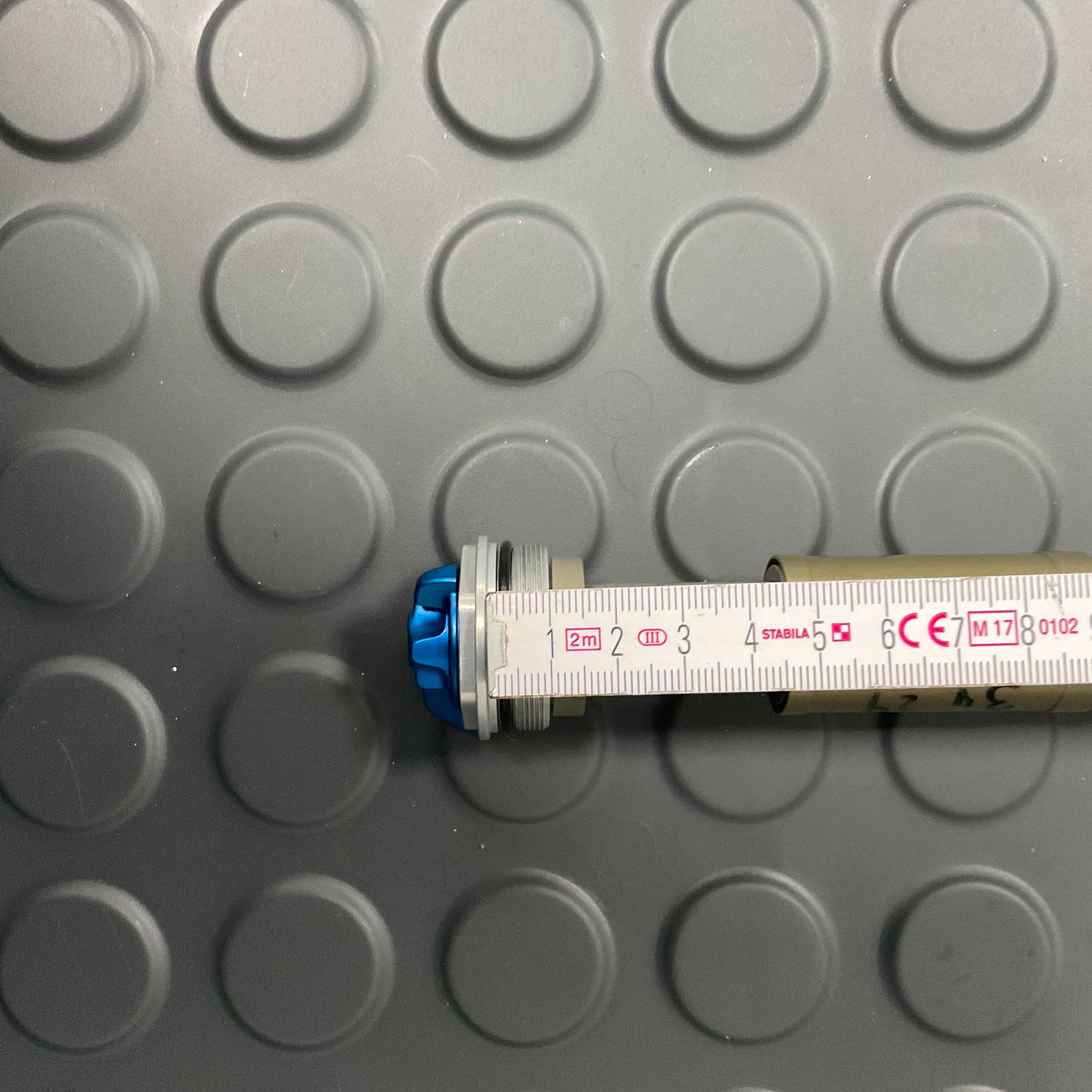

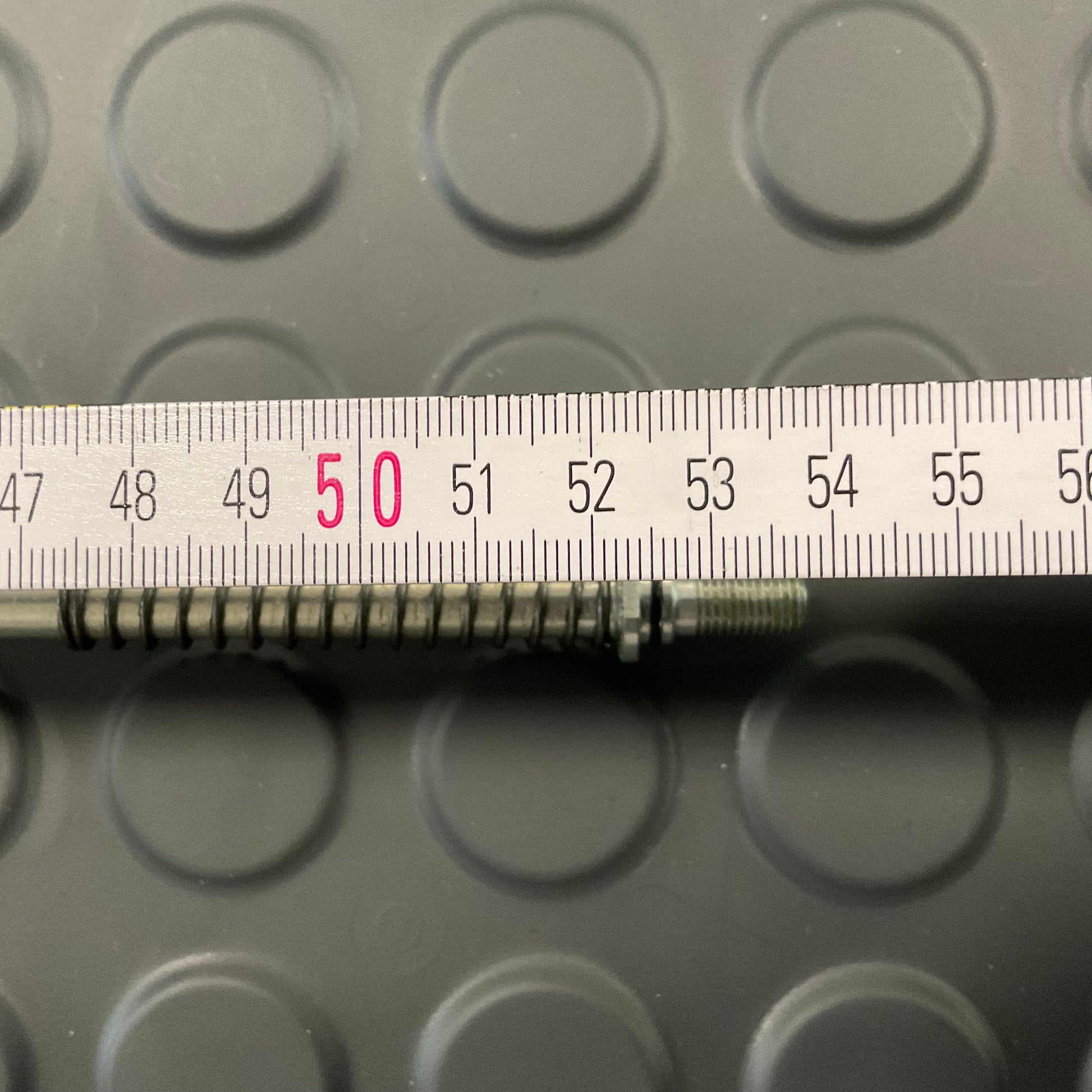

Listed dimensions

• Length: 538 mm
• Thread diameter: 31 mm

These dimensions come from the existing shop information, not the cited FOX parts entry. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall assembly length is not the same as fork travel.

Compatibility and installation

Match the complete service part identification, TALAS generation and mounting interfaces to your exact fork. Do not assume compatibility with 26-inch or 27.5-inch versions, other travel configurations or 2016 assemblies. A reduced-travel setting is not specified here.

Confirm the item's condition and service history and any additional hardware or fluids required. Installation should be carried out by an experienced suspension mechanic following the appropriate FOX instructions.
