Fox
FOX 34 TALAS 5 Assembly, 29er 140 mm – 820-01-333
Why buy here
- Shipped from our workshop in Berlin
- Expert help with fit and compatibility
- Parts for classics, chosen by specialists
Product details
Description
FOX TALAS 5 spring and travel-adjustment assembly, part number 820-01-333. Listed application: FOX 34, 29-inch wheel configuration, 140 mm travel.

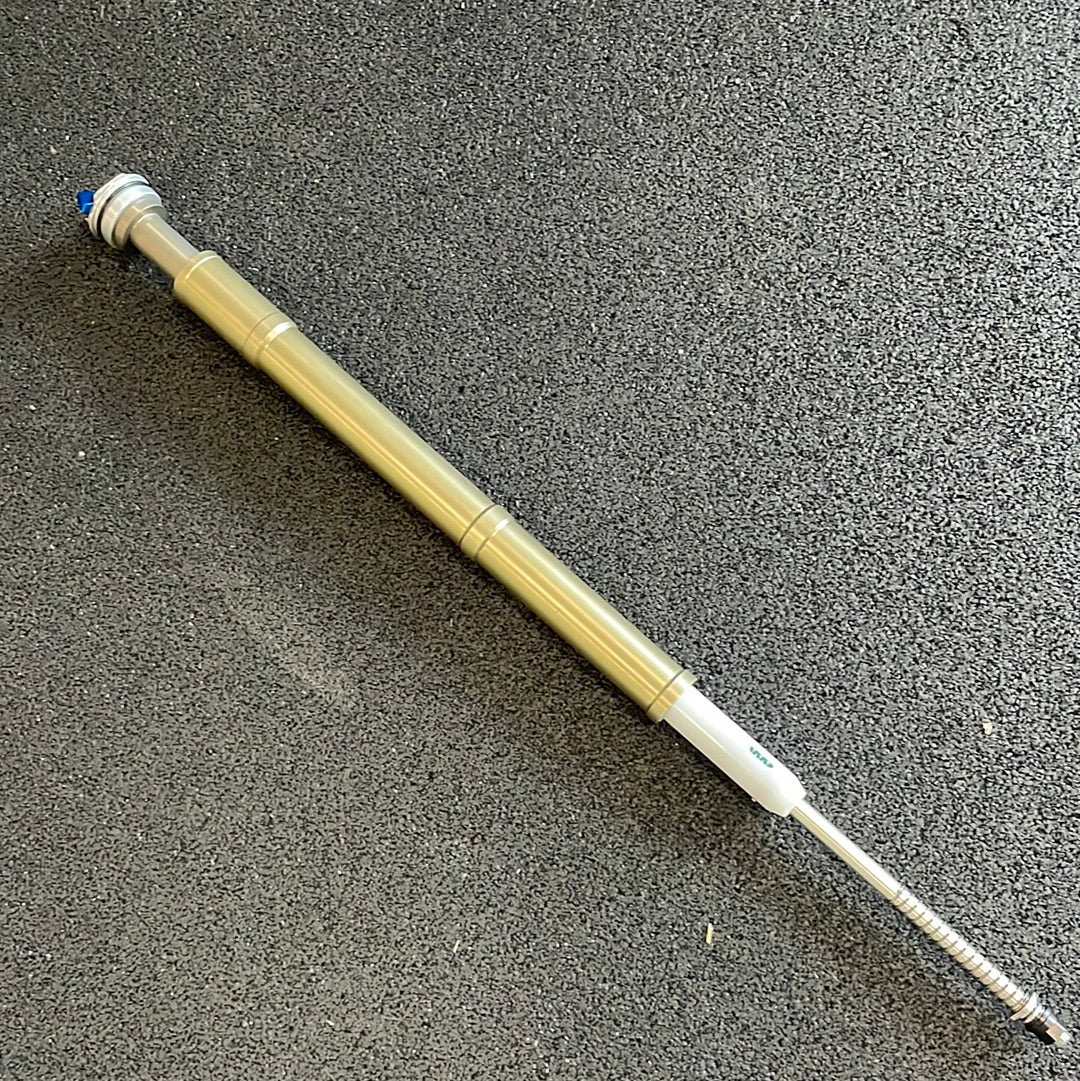

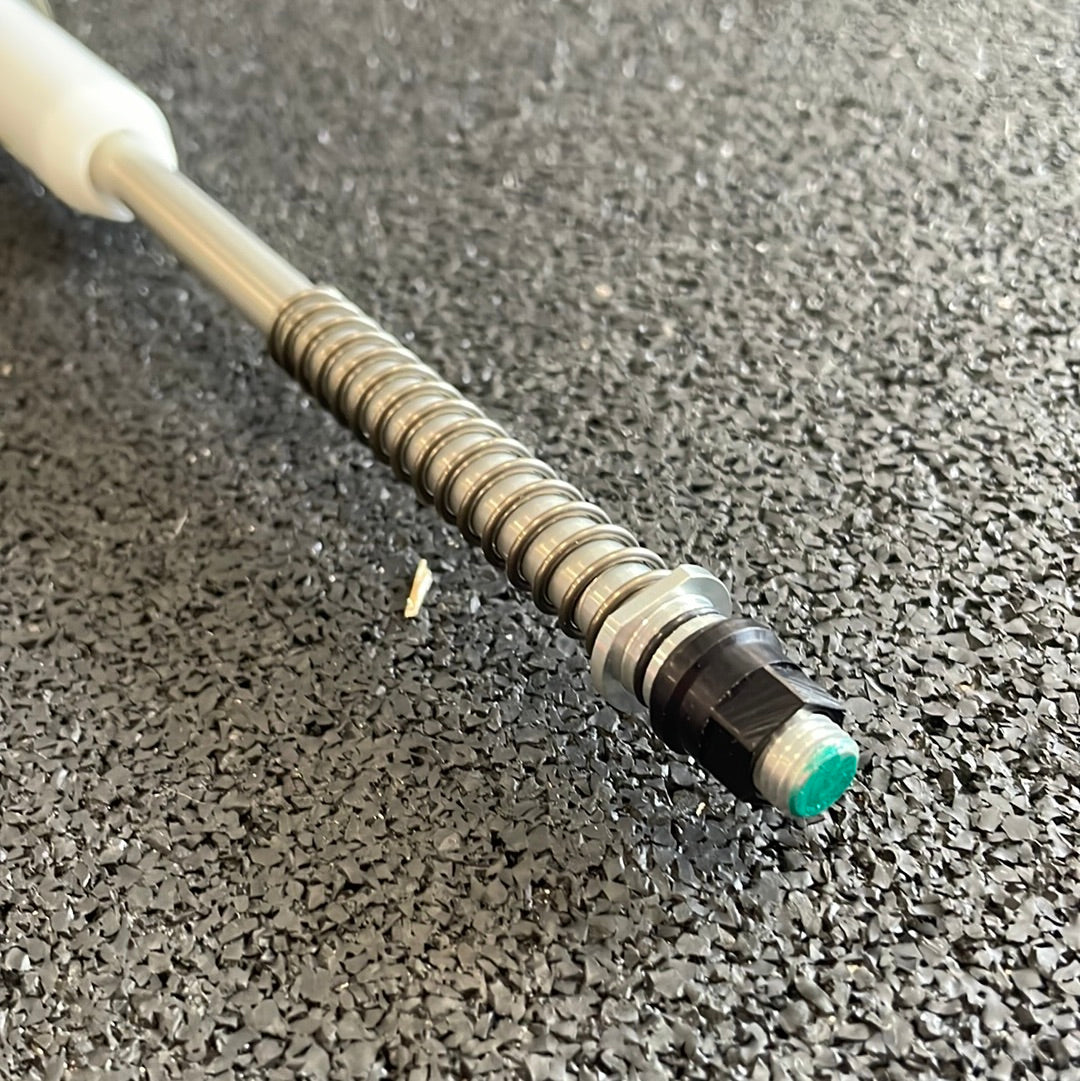

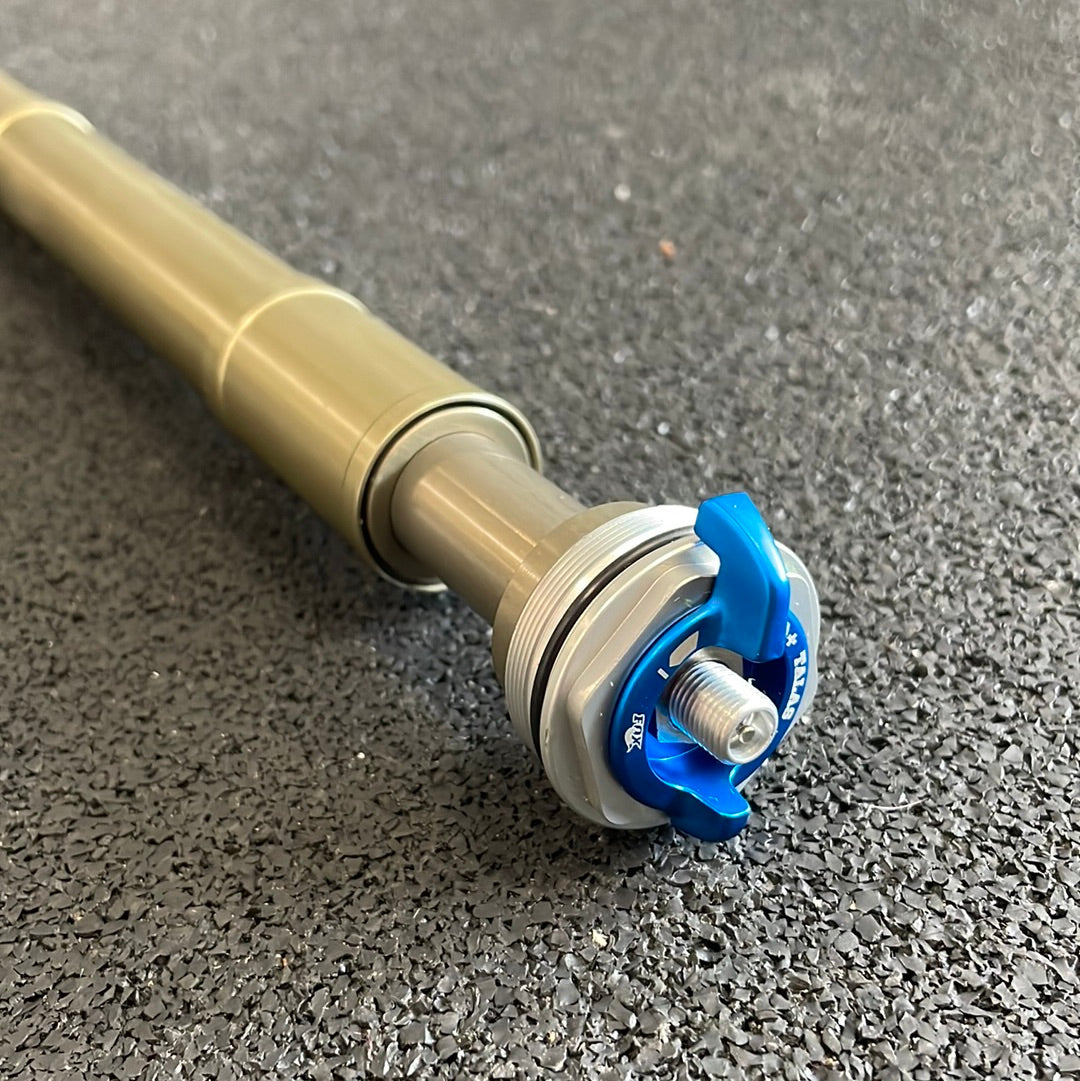

The photos show the assembly with a blue TALAS control and its lower mounting end. This is a TALAS spring-side assembly, not a damping cartridge, seal-only service kit or complete fork.
Listed dimensions

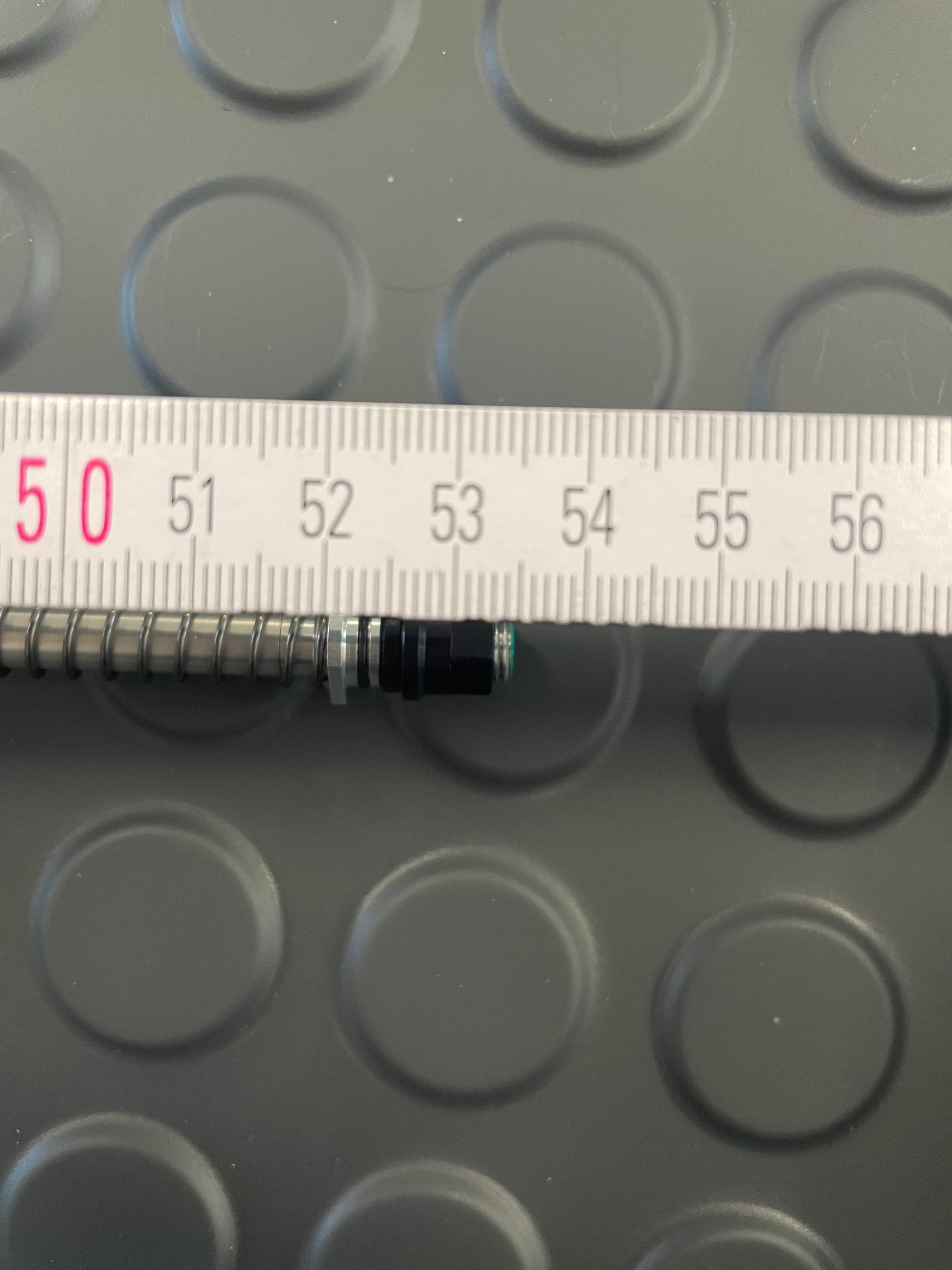

- Overall length: 535 mm

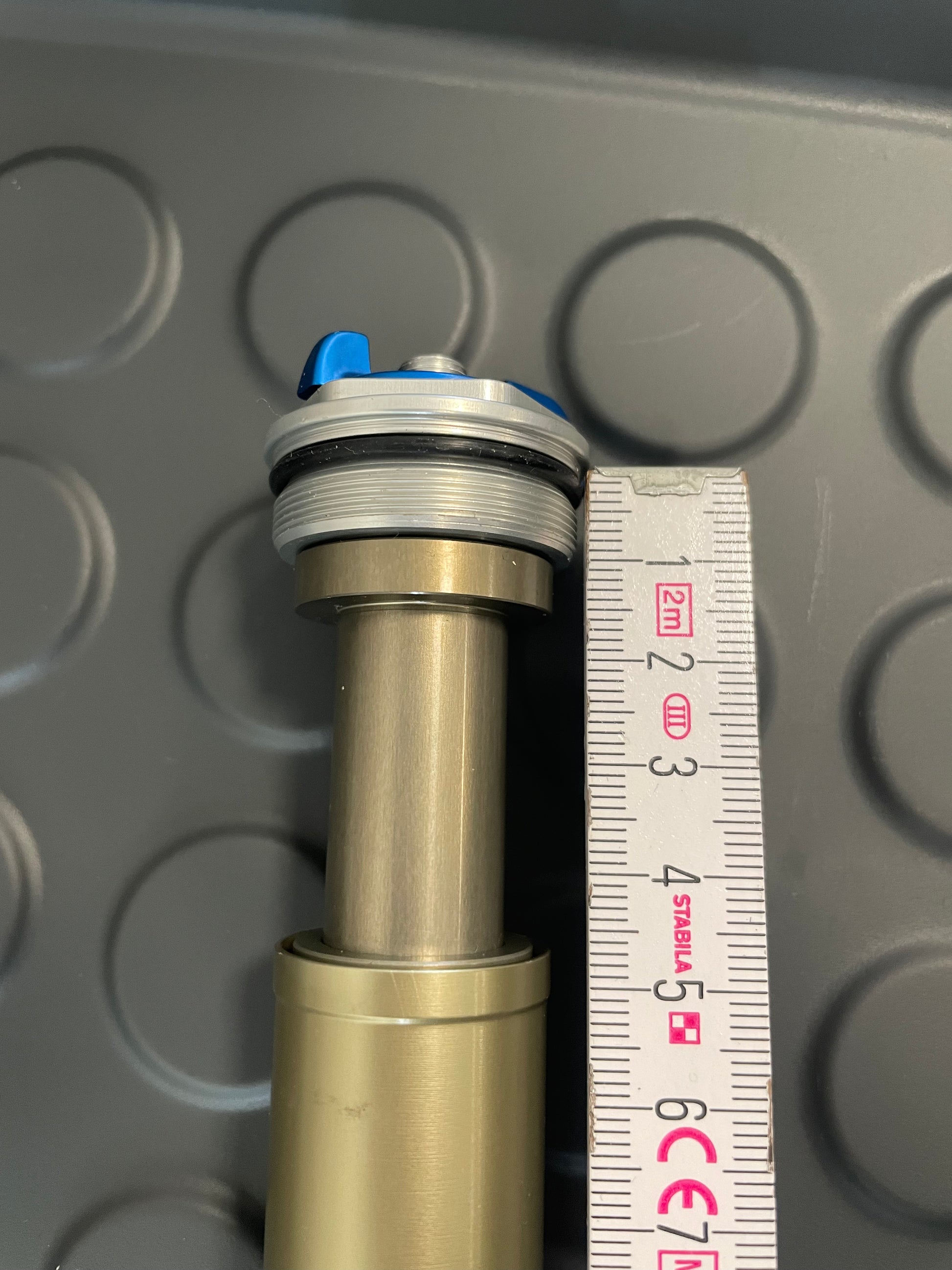

- Thread diameter: 31 mm
Dimensions and the application are retained from the existing product information. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall assembly length is not the same as fork travel. The reduced-travel setting and exact model-year range are not specified here.
Compatibility
Match part number 820-01-333, TALAS generation, mounting interfaces and dimensions to the service specification for your exact fork before ordering. The FOX 34 name, wheel size and travel alone do not establish compatibility with every fork version.
Do not assume interchangeability with other TALAS generations, FLOAT spring assemblies or the separately listed 150 mm TALAS 5 assembly 820-01-332.
Installation
Confirm the item's condition and service history, along with any additional mounting hardware, conversion parts or fluids required. Inclusion of additional items is not specified here. Installation should be carried out by an experienced suspension mechanic following the appropriate FOX instructions.
