FOX 36 TALAS 5 Retrofit Assembly 160 mm, 2005–2010 – 820-01-363

FOX TALAS 5 retrofit assembly, part number 820-01-363. Listed application: FOX 36, 160 mm configuration, model years 2005–2010.

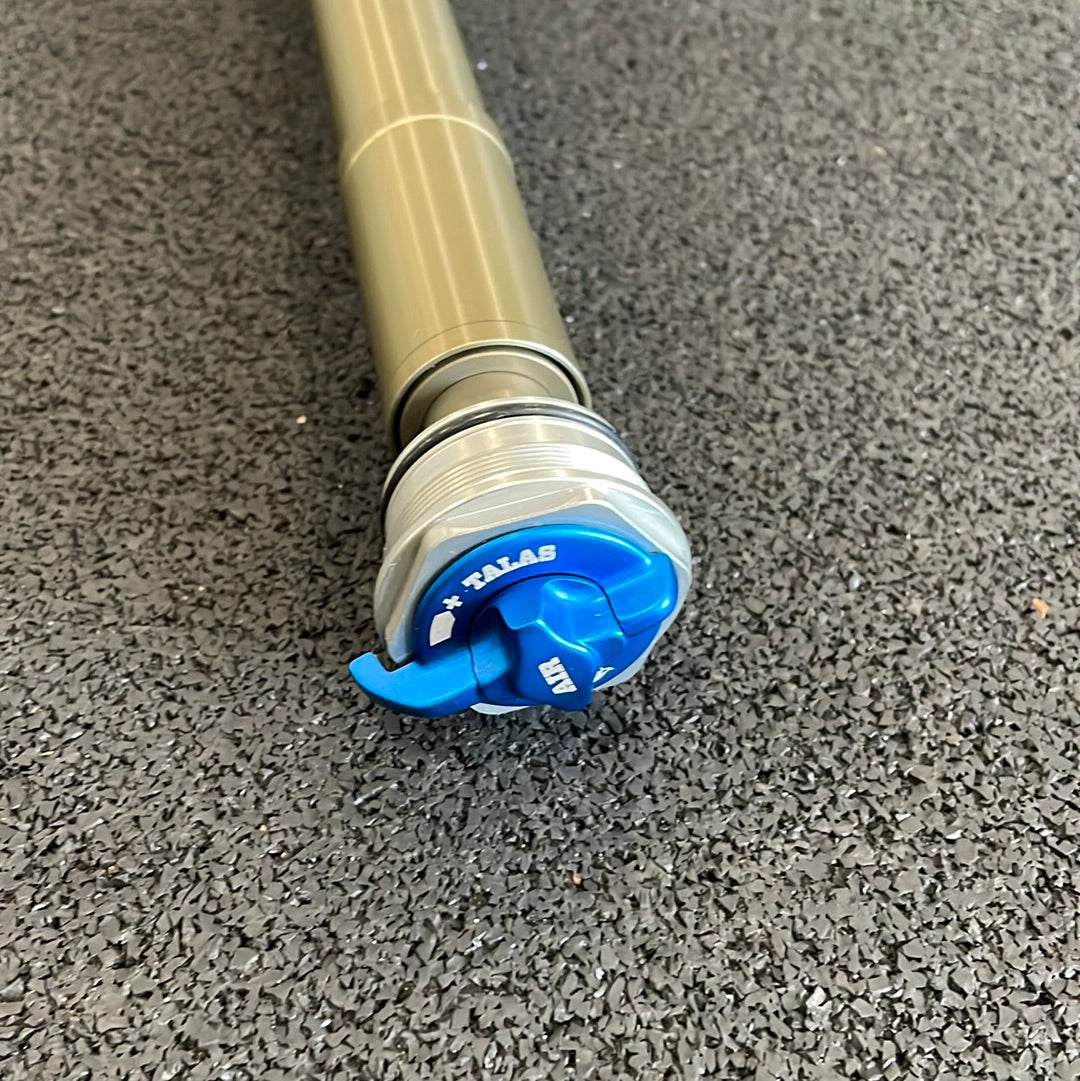

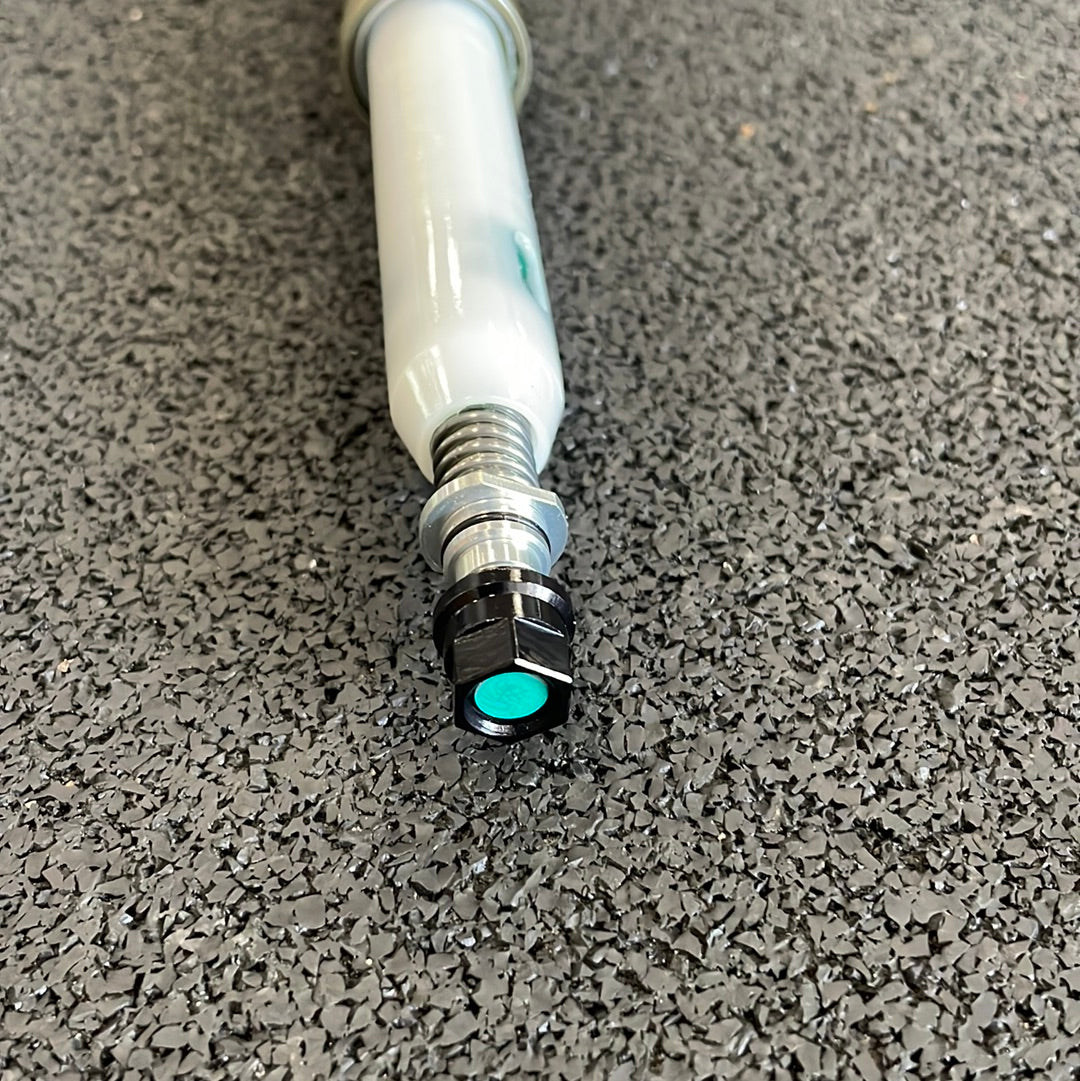

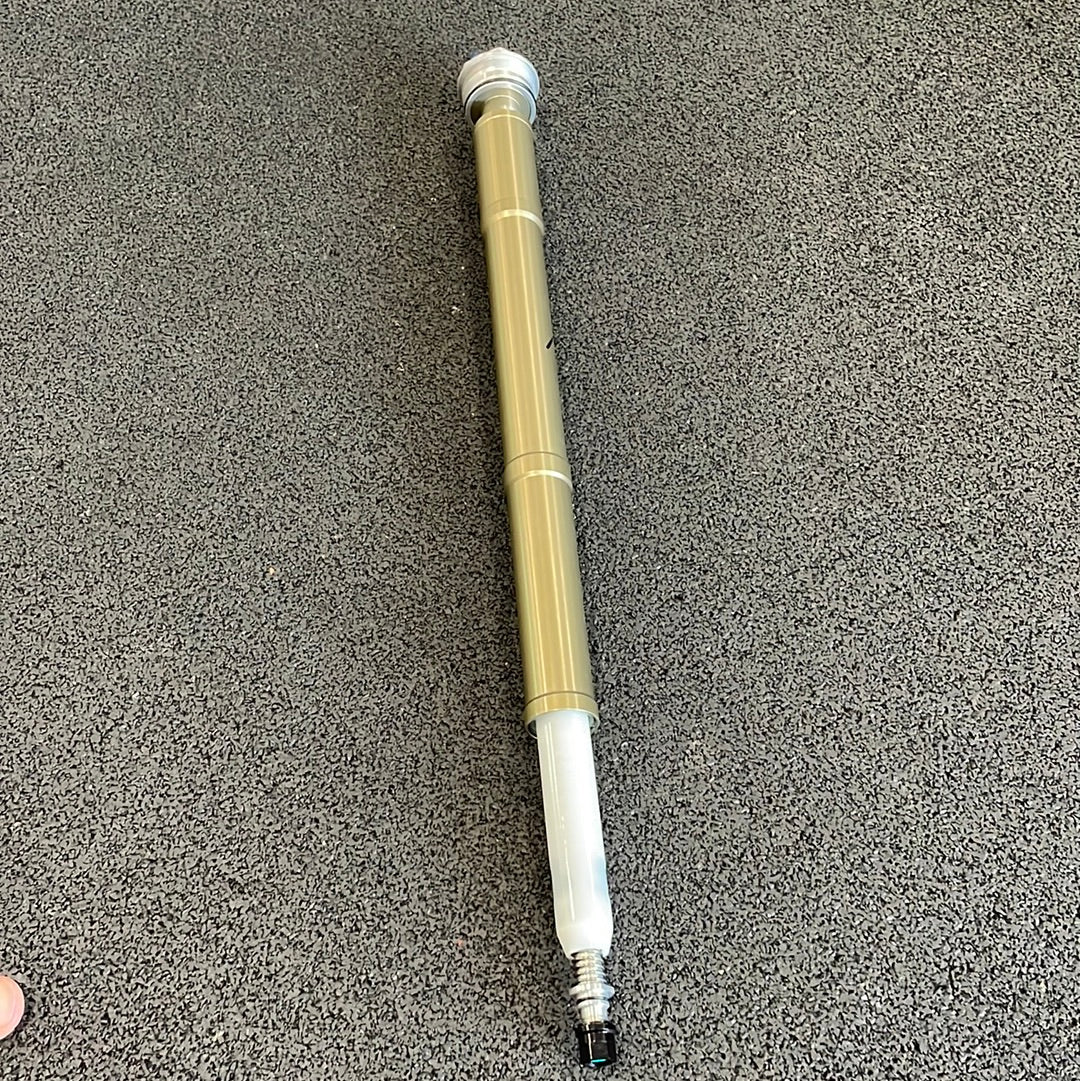

This is a TALAS spring and travel-adjustment assembly, not an RC2 damping cartridge or a seal-only service kit. The photos show the assembly with a blue TALAS control at the top and the lower mounting end.

Listed dimensions

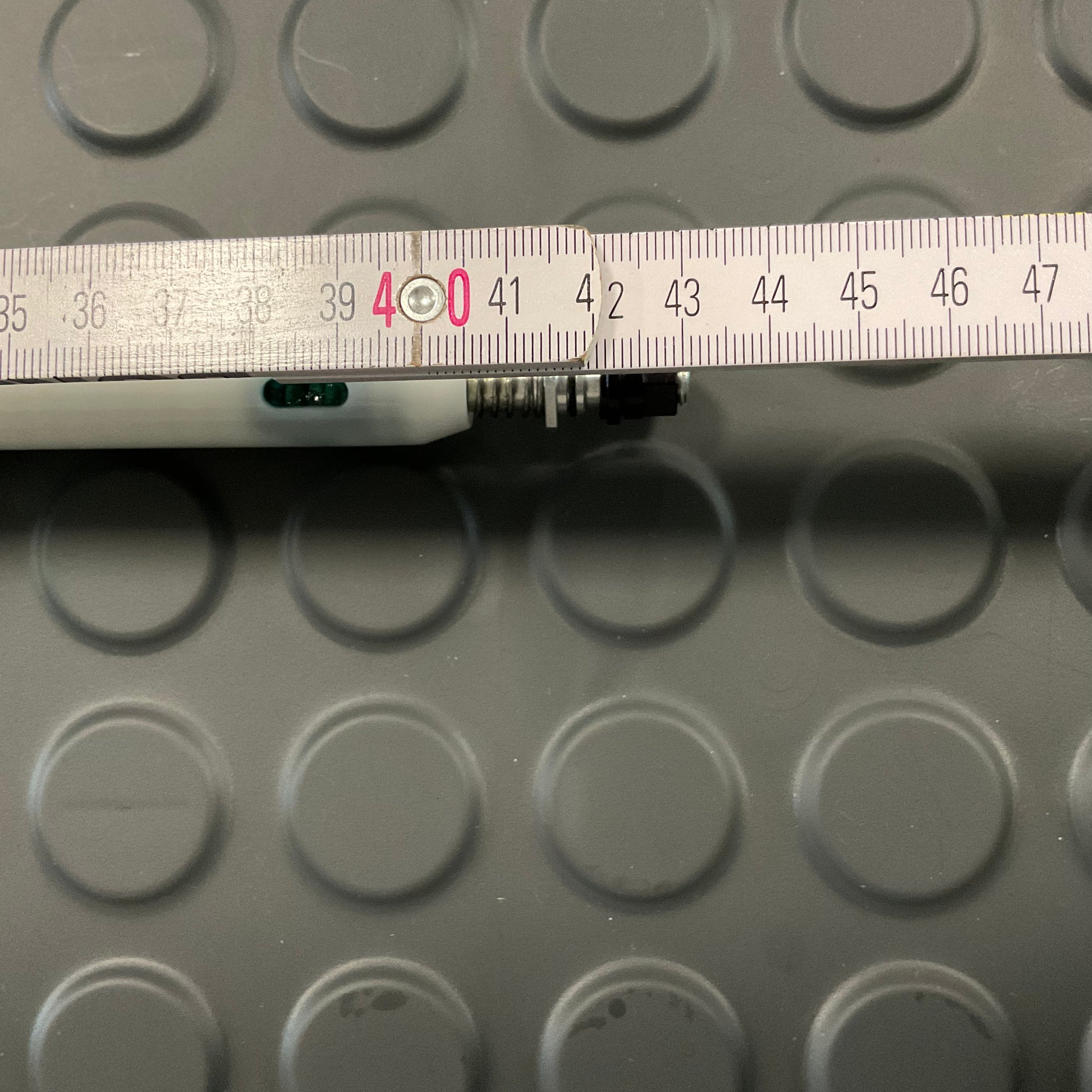

• Length: 431 mm

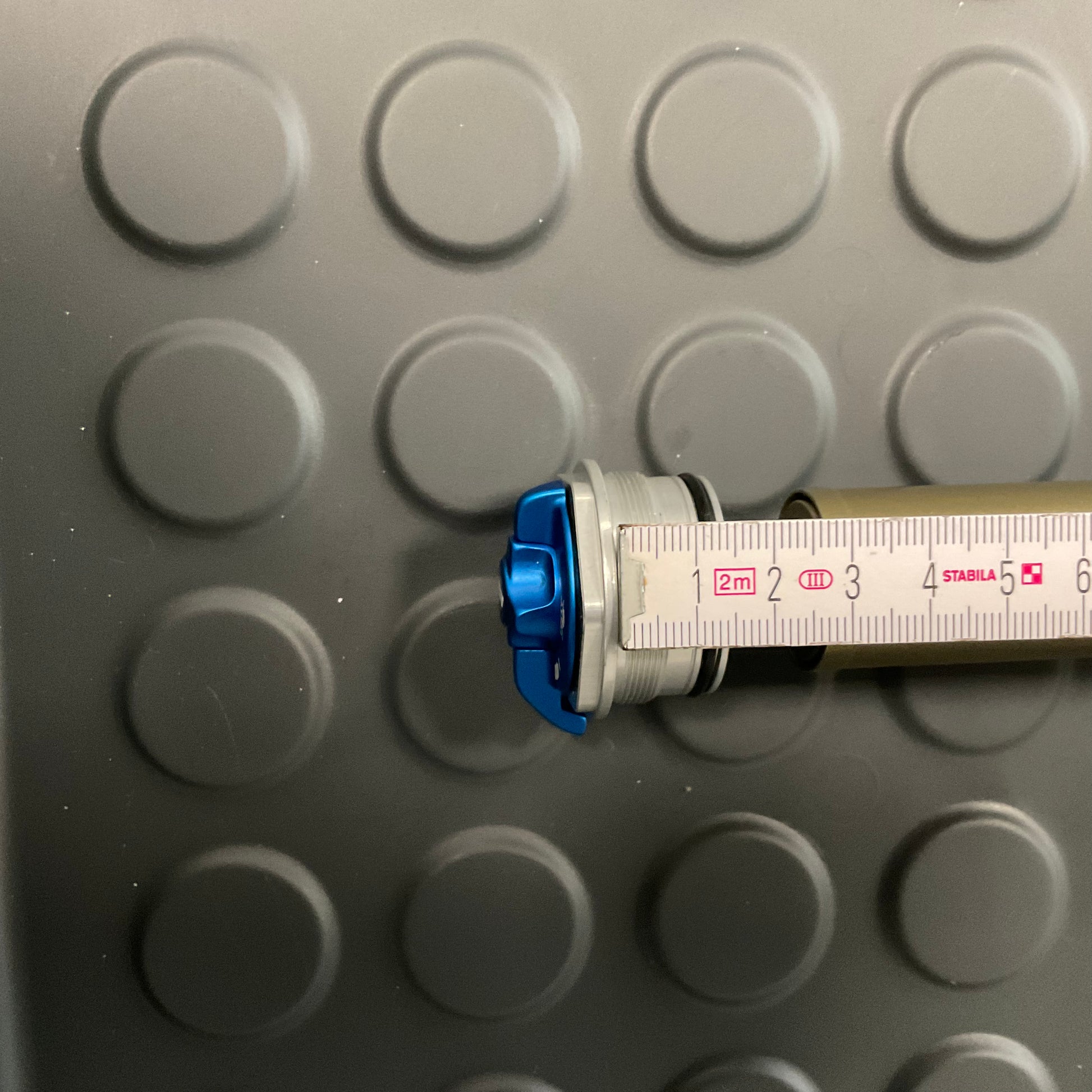

• Thread diameter: 33 mm

Dimensions and the 2005–2010 application are retained from the existing product information. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall assembly length is not the same as fork travel.

Retrofit compatibility

The year range refers to the listed recipient fork application, not a claim that TALAS 5 was the original system fitted in those years. Confirm part number 820-01-363 and the retrofit requirements for your exact fork before ordering.

Match the crown and upper tube assembly, mounting interfaces and required travel configuration. Do not assume universal compatibility with every FOX 36 from 2005–2010 or with other FOX fork families.

Installation

Confirm which additional hardware, fluids or conversion parts are required and included before purchase. The item's condition and service history are not specified here. Retrofit installation should be carried out by an experienced suspension mechanic following the appropriate FOX instructions.
