FOX 36 RC2 HBO Damper Cartridge 170–180 mm, 2011 – 820-08-093

FOX RC2 damper cartridge assembly, listed as “2011 36 170-180 HBO RC2 Cartridge Assy Complete”. Part number: 820-08-093.

Listed application

FOX 36, model year 2011, 170–180 mm travel configurations requiring the HBO RC2 cartridge version. This application is taken from the existing product identification; exact fitment must be checked against the service part specification for your fork.

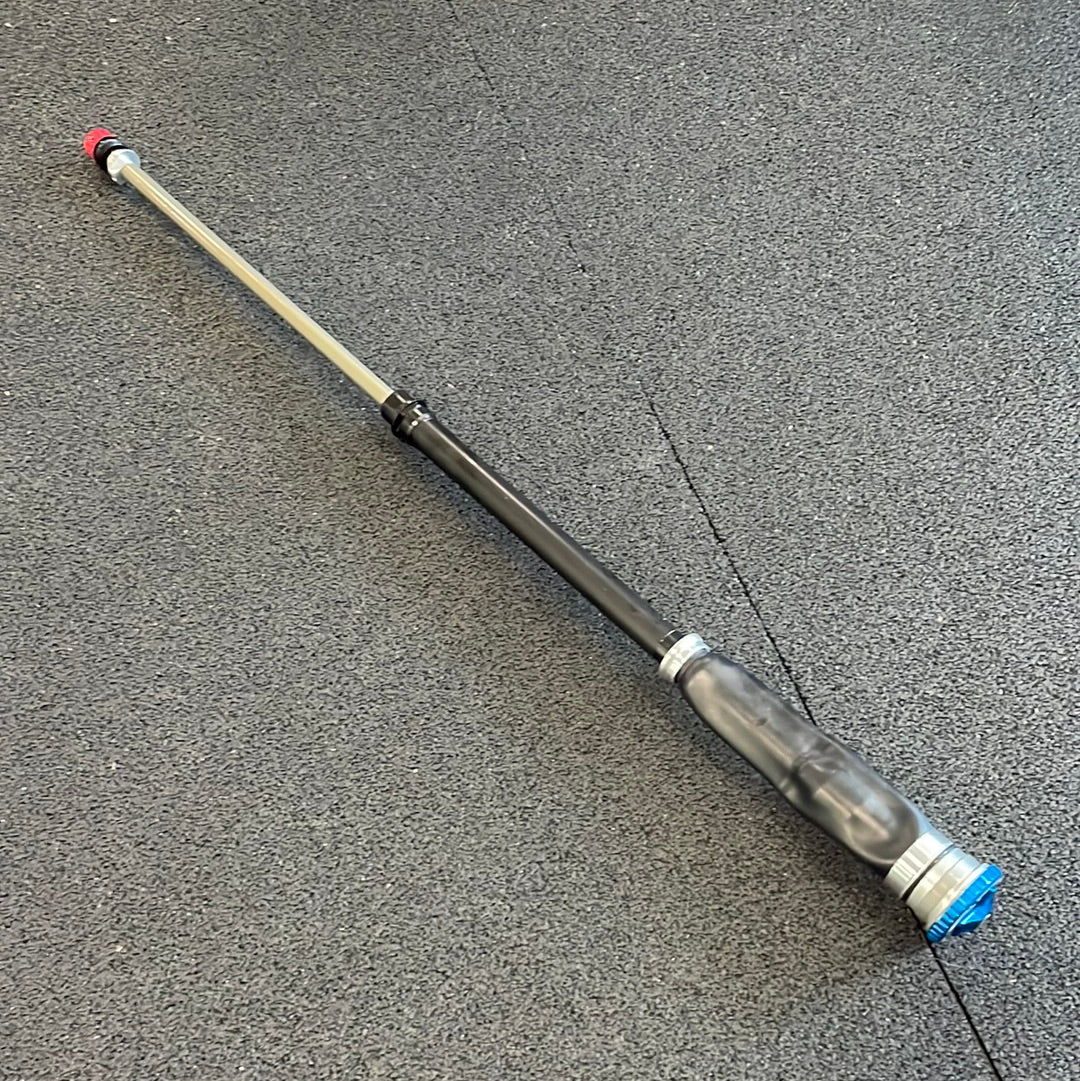

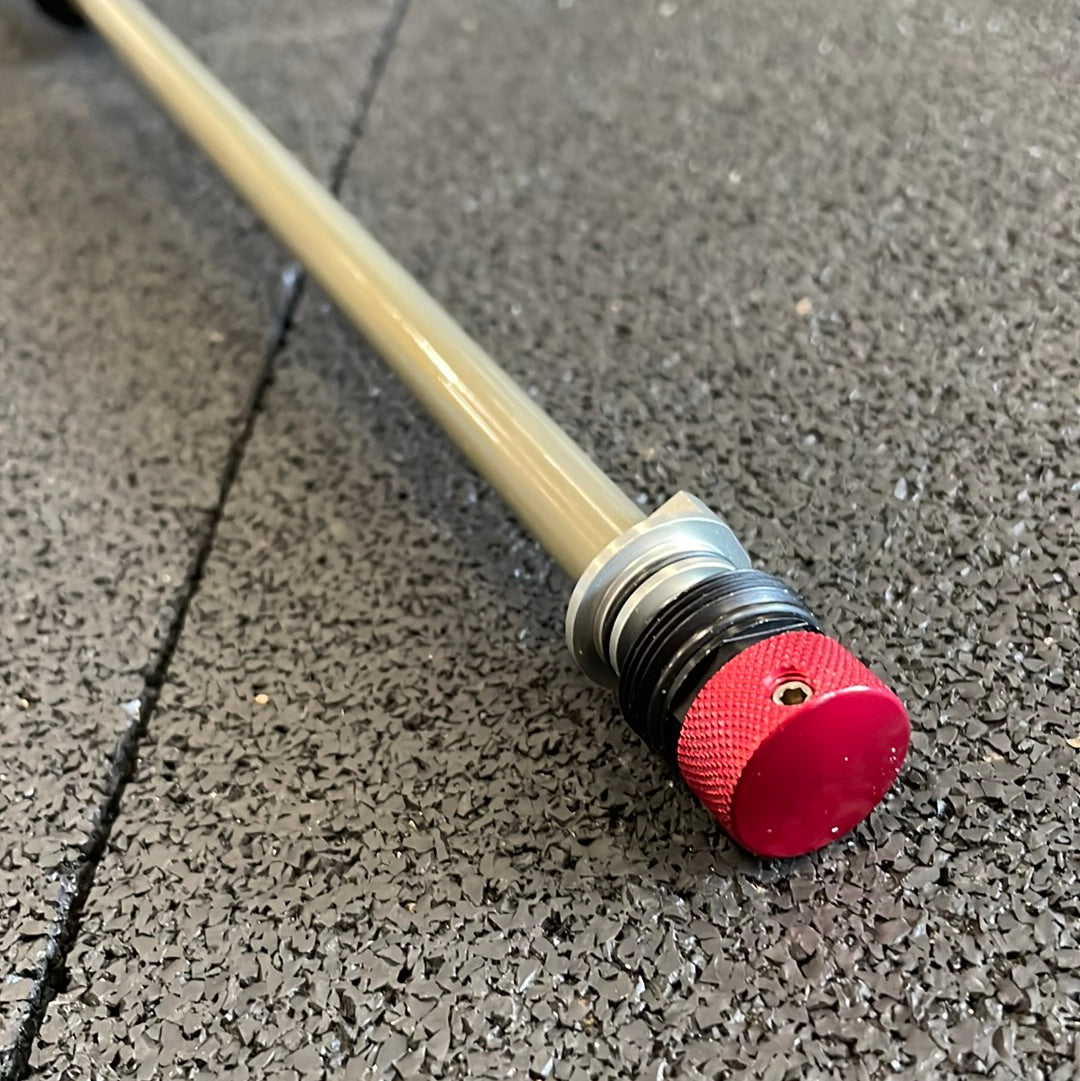

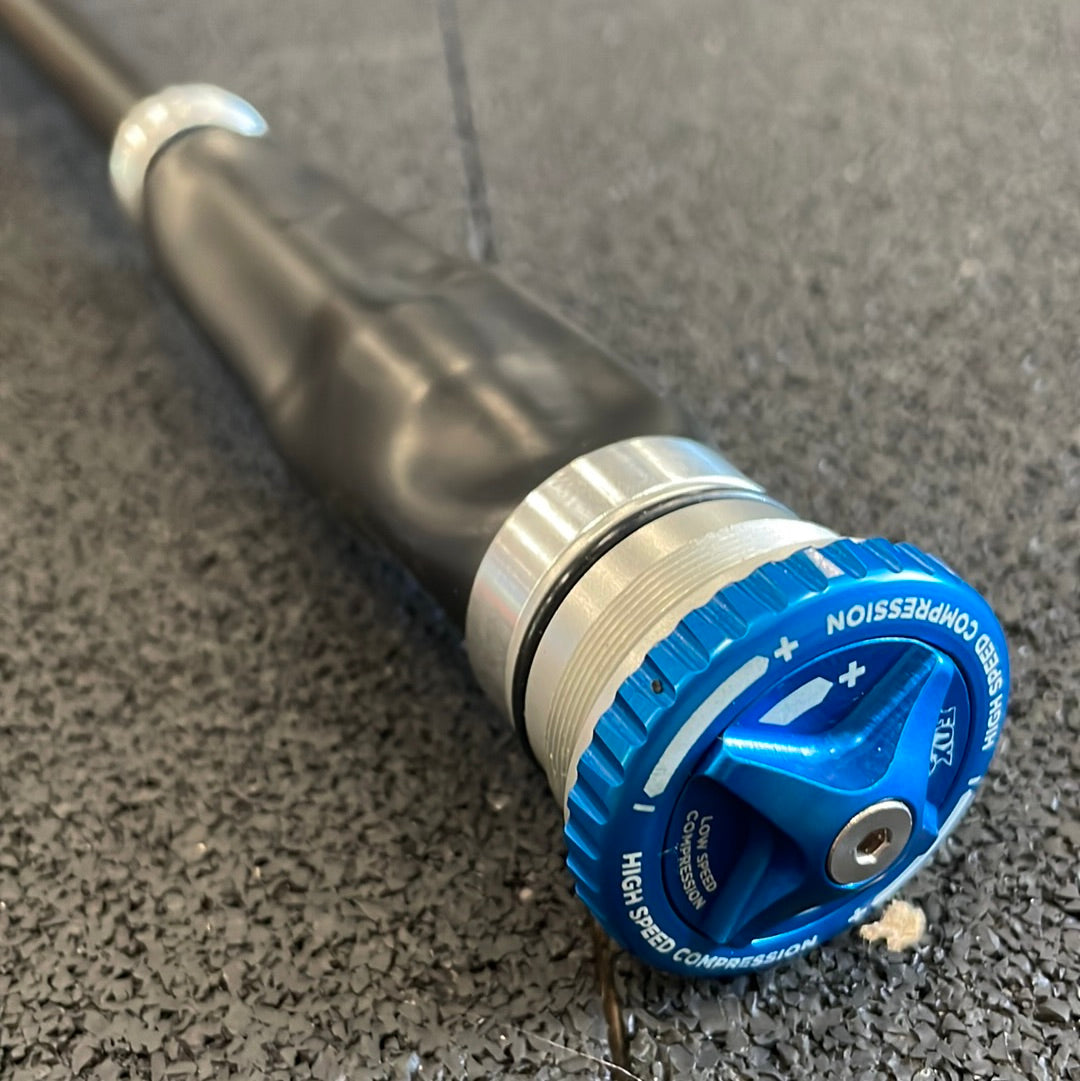

The photos show a cartridge assembly with blue high-speed and low-speed compression adjusters and a red adjuster at the opposite end. This is a damping assembly, not an air spring, TALAS travel-adjustment unit or complete fork.

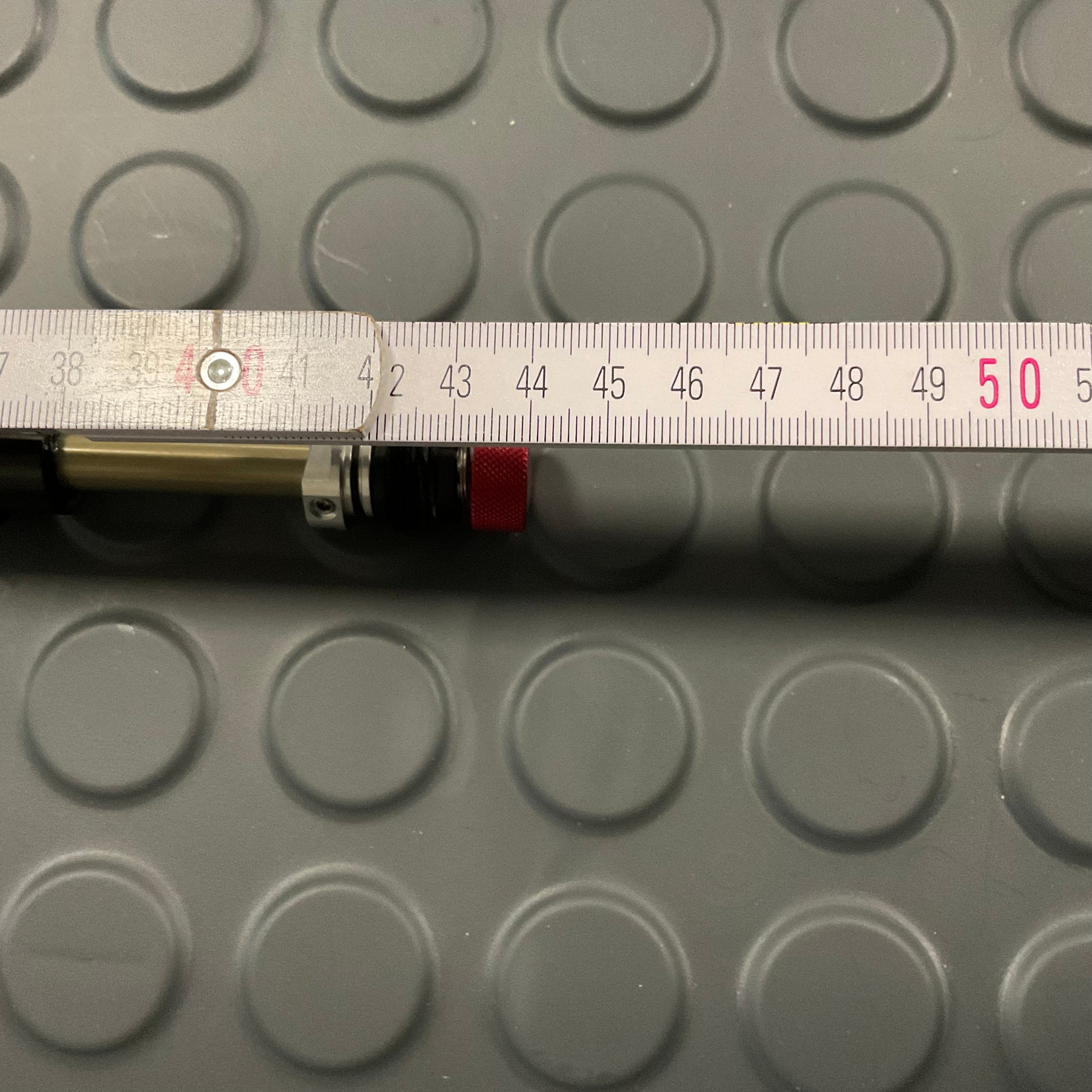

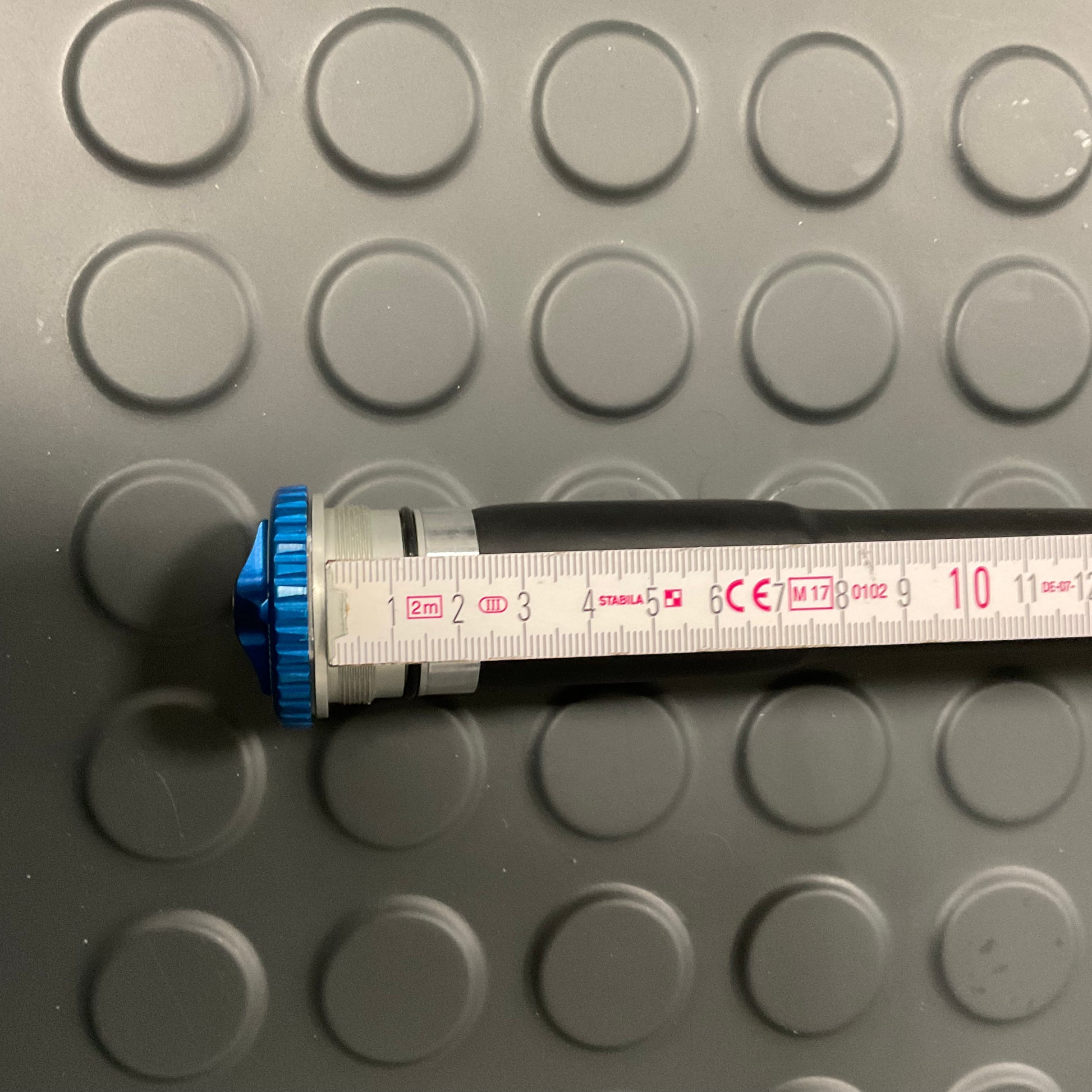

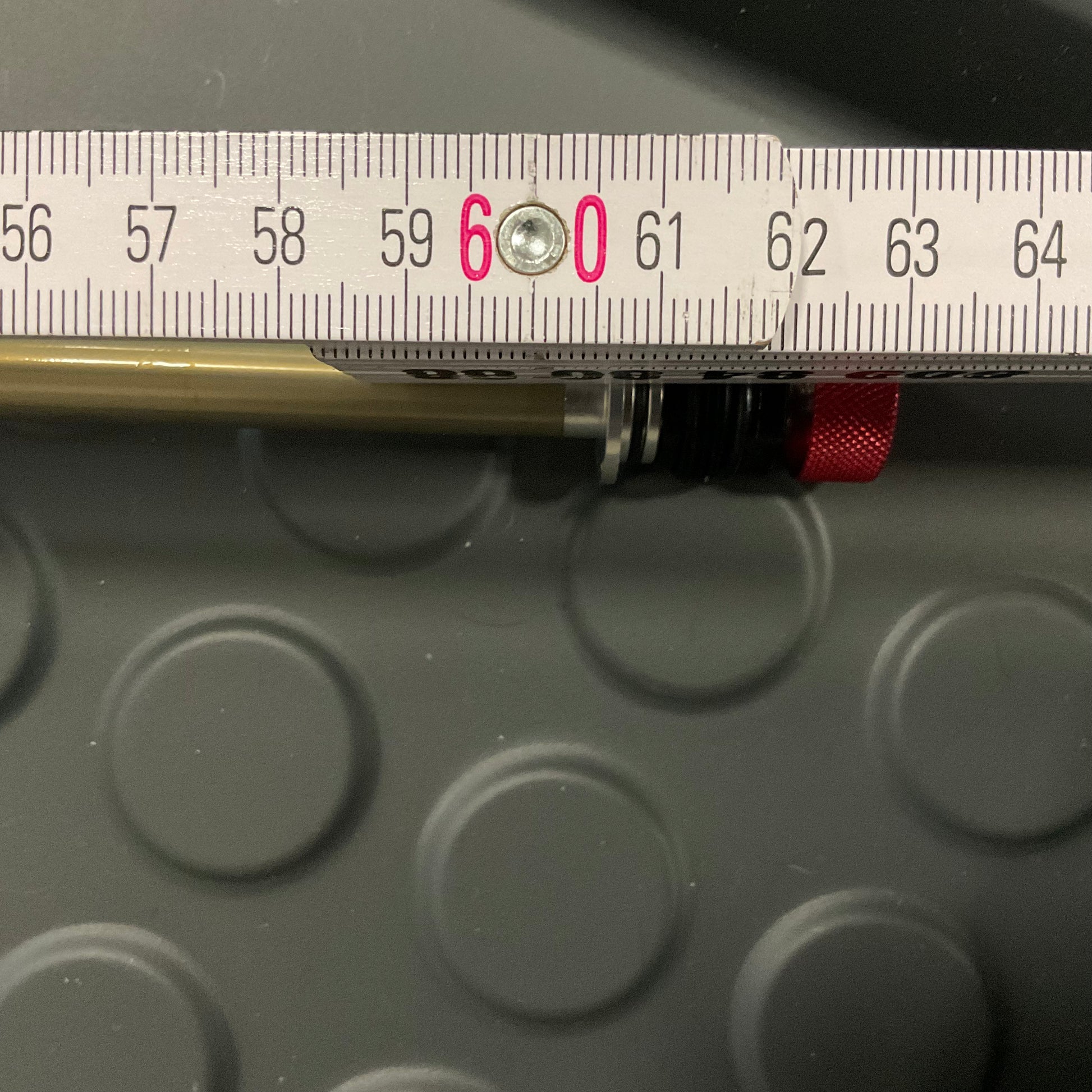

Listed measurements

• Maximum overall length: 630 mm
• Minimum overall length: 440 mm
• Thread diameter: 33 mm

These measurements are retained from the existing listing. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall cartridge length is not the same as fork travel.

Compatibility and installation

Match the complete part number, cartridge version, mounting interfaces and fork model before purchasing. Do not assume interchangeability with the separately listed 820-08-096 NBO RC2 cartridge or other FOX 36 cartridges based on travel alone.

The listing identifies a complete cartridge assembly; inclusion of additional installation hardware or service fluids is not specified. Condition and service history should be confirmed before installation. Fitment and installation should be carried out by an experienced suspension mechanic following the correct FOX service procedure.
