FOX 36 RC2 NBO Damper Cartridge 170–180 mm, 2011 – 820-08-096

FOX RC2 NBO damper cartridge assembly, listed for a 2011 FOX 36 with 170–180 mm travel. Manufacturer part number: 820-08-096.

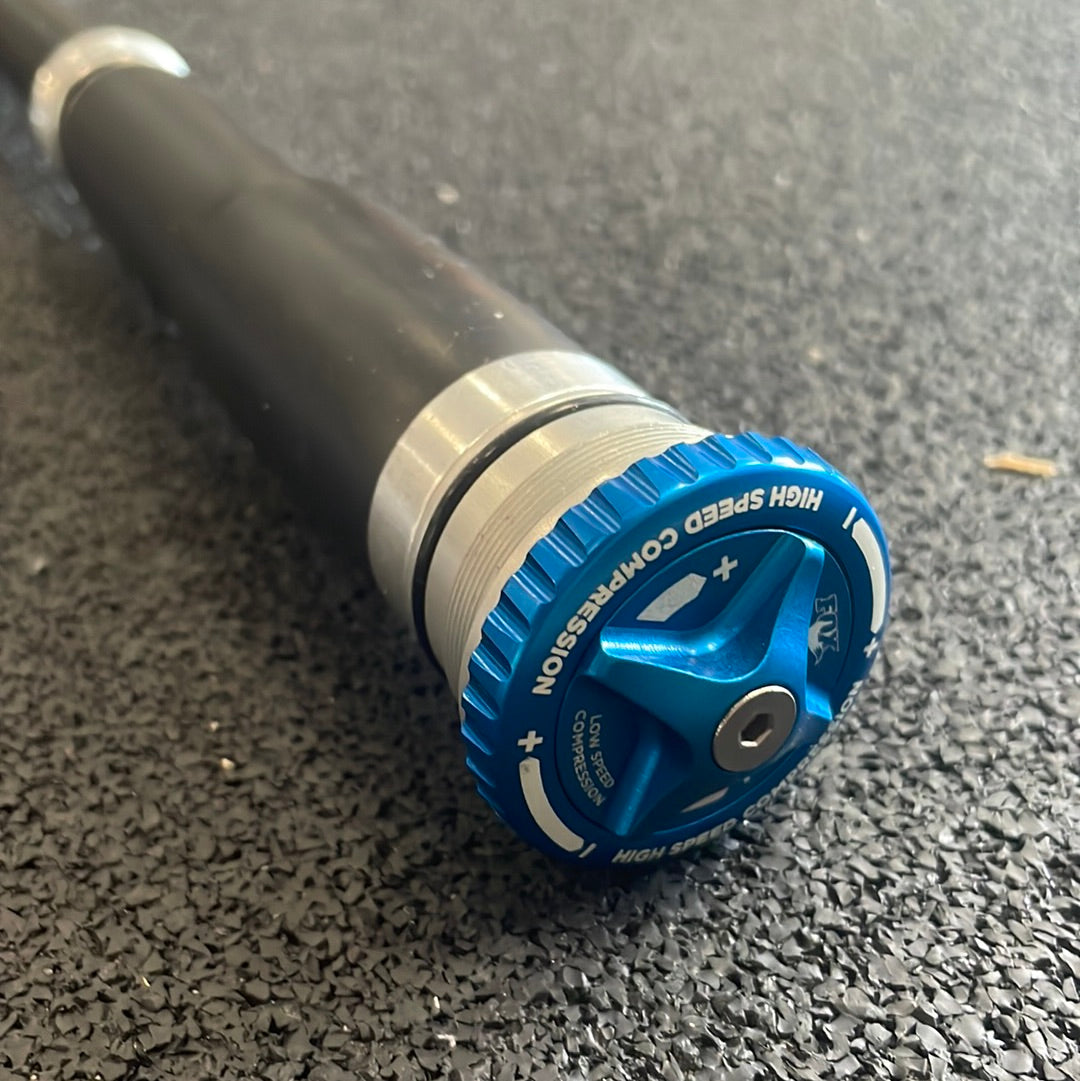

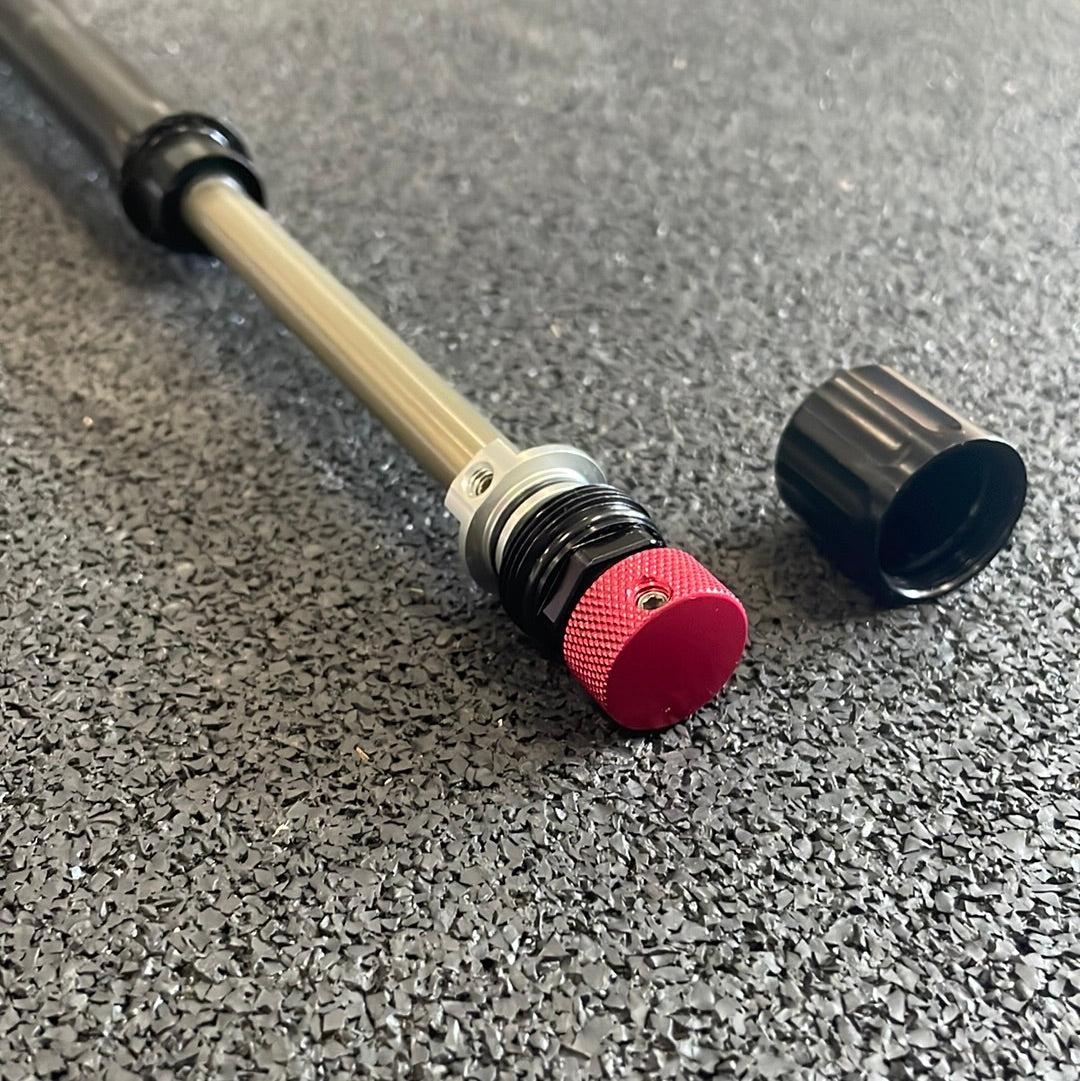

The photos show a cartridge with blue high-speed and low-speed compression adjusters, a red adjuster at the opposite end and a separate black cap. This is a damping assembly, not a TALAS travel-adjustment unit, air spring or complete fork.

Listed dimensions

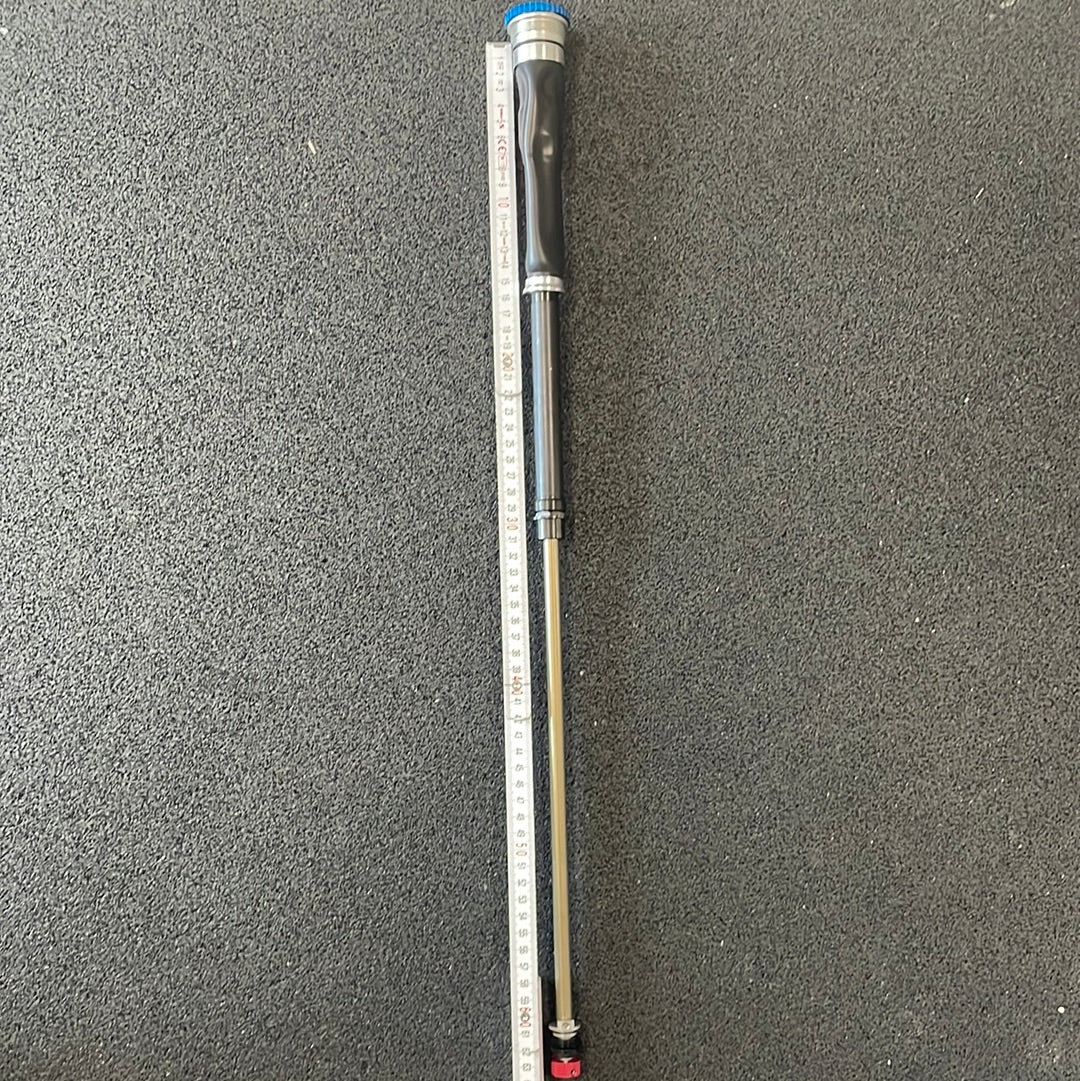

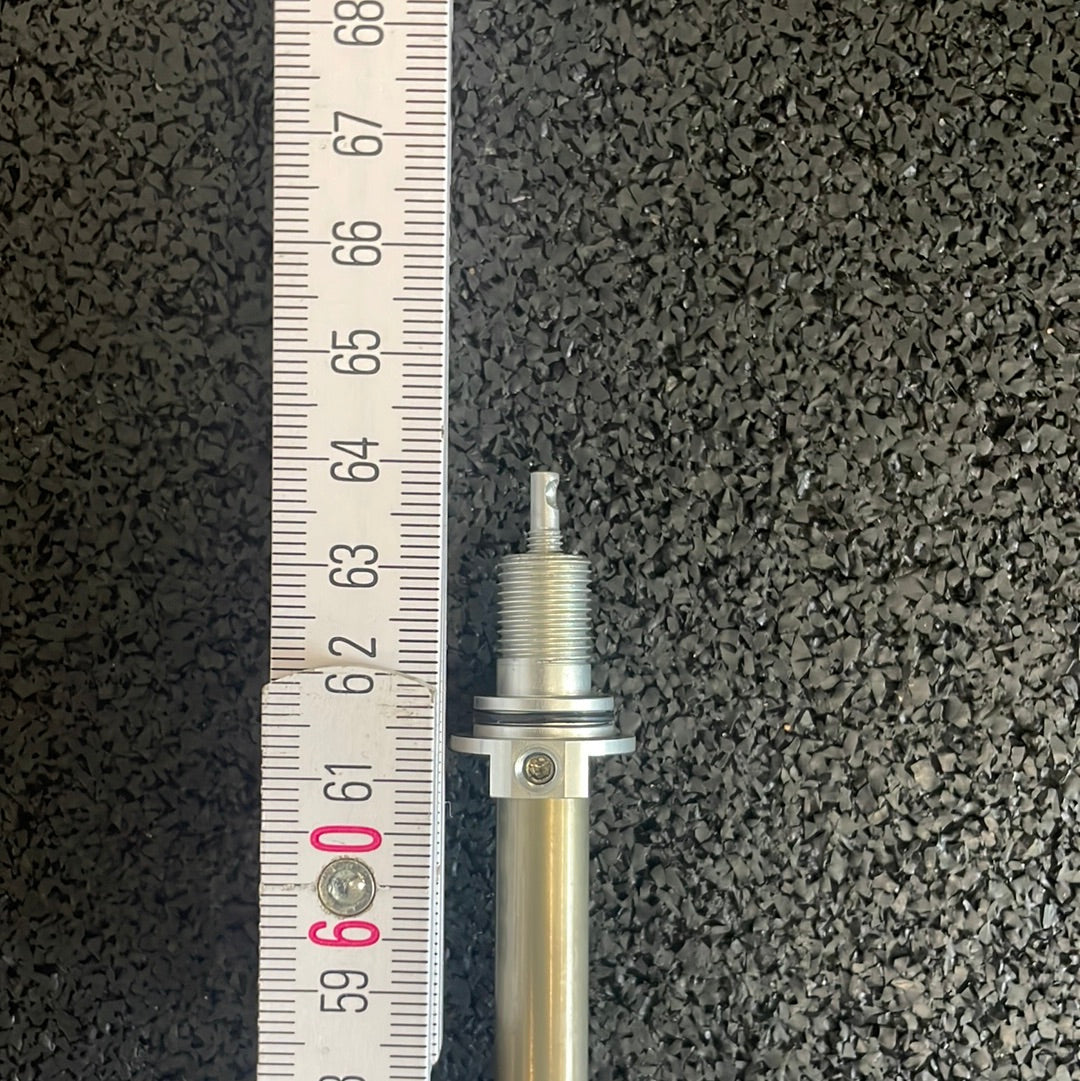

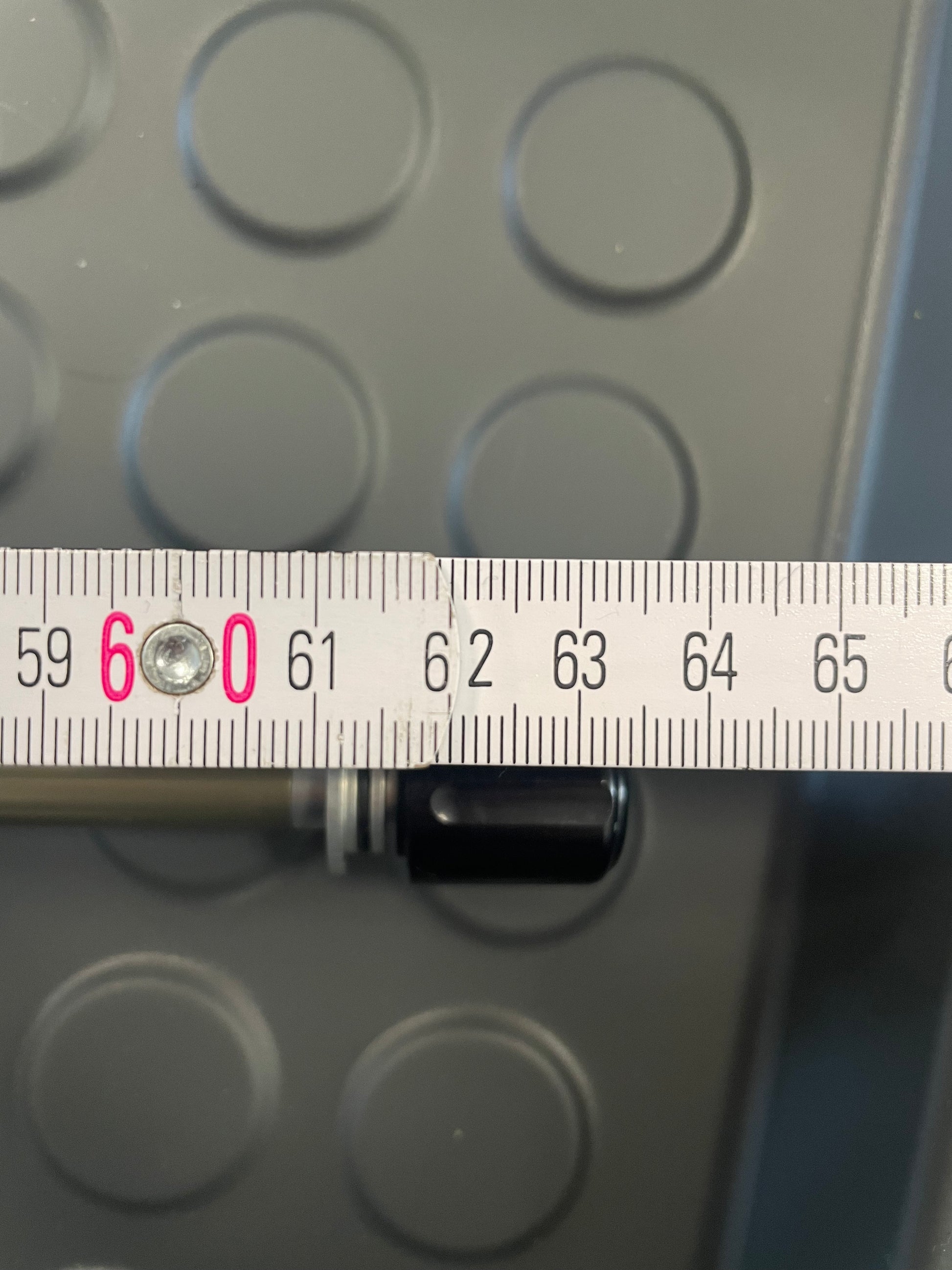

• Maximum overall length: 634 mm

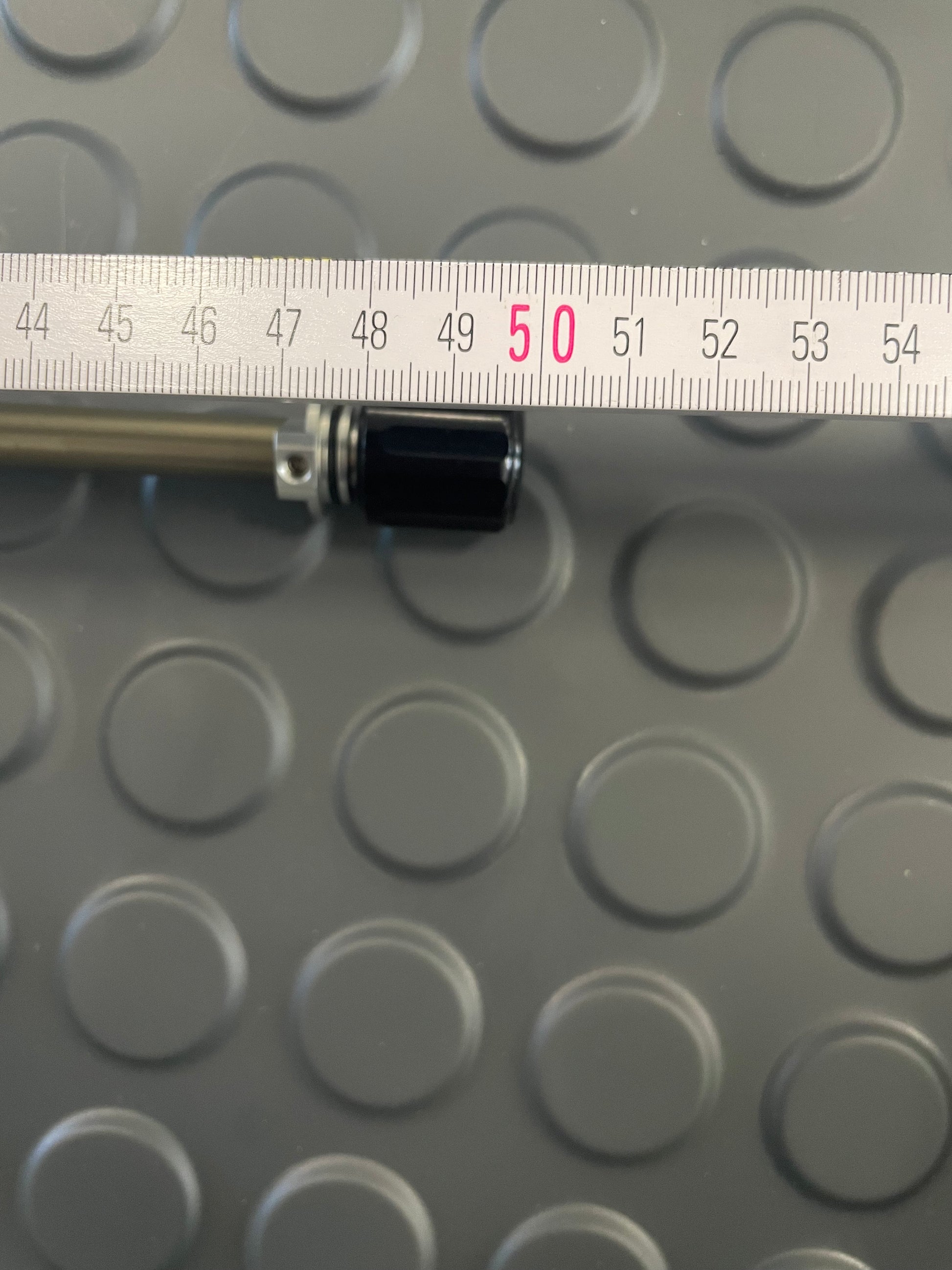

• Minimum overall length: 498 mm

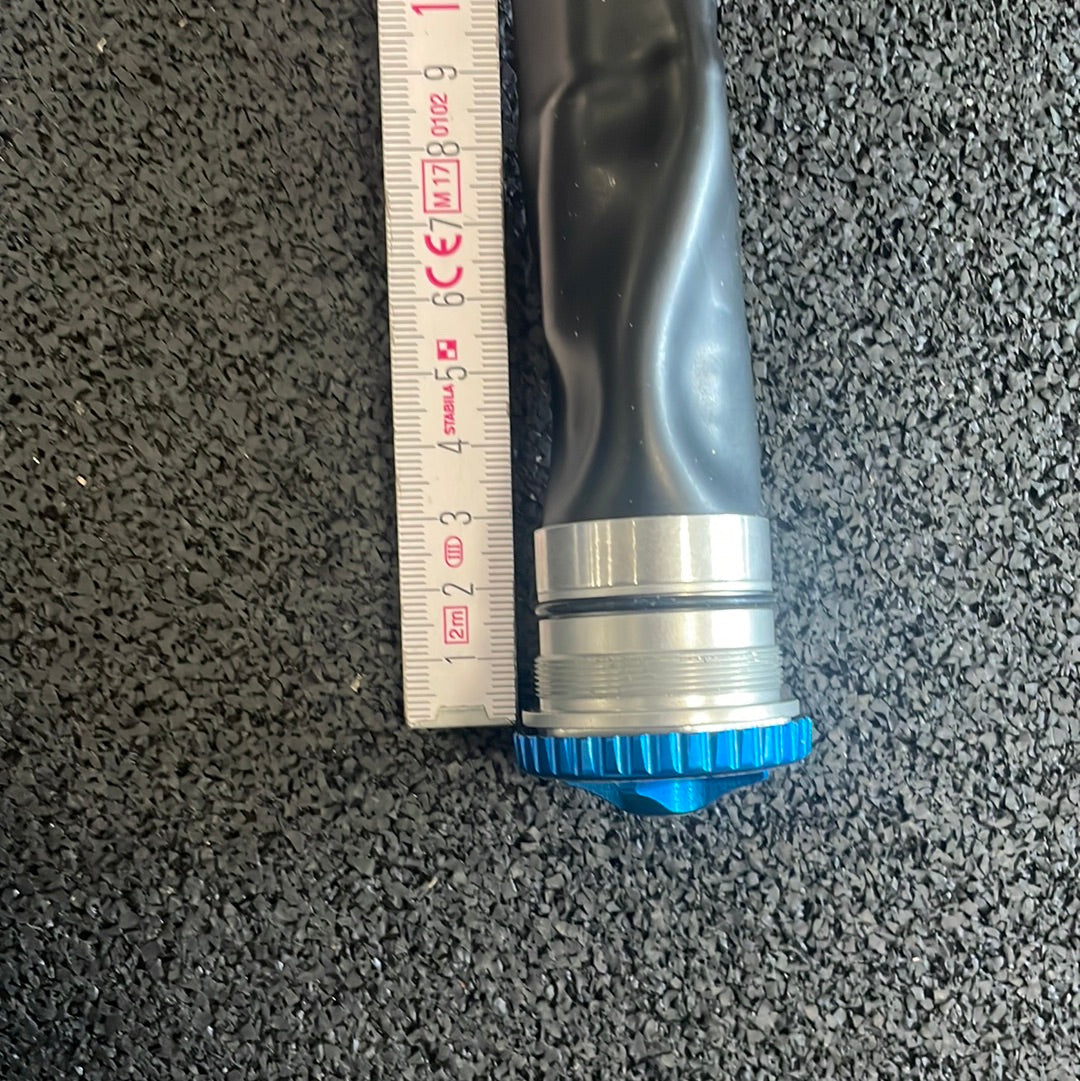

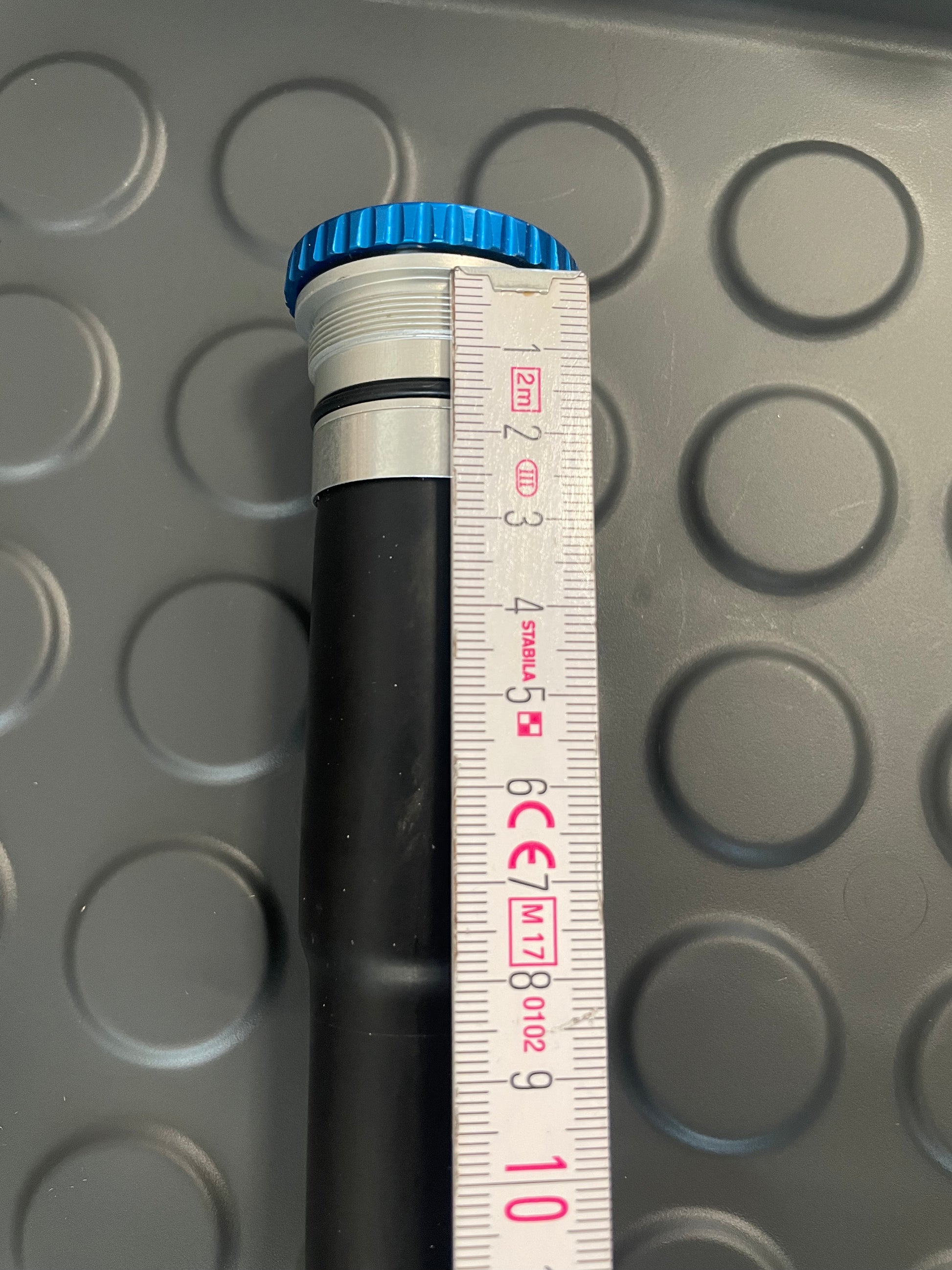

• Thread diameter: 33.2 mm

Dimensions are retained from the existing item information. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall cartridge length is not the same as fork travel.

Compatibility

The 2011 FOX 36 170–180 mm RC2 NBO application is taken from the existing product identification. Match the complete part number, damper version, mounting interfaces and dimensions with the service specification for your fork before purchasing.

Do not assume interchangeability with the separately listed HBO RC2 cartridge 820-08-093 or with GRIP2 dampers. Matching fork family and travel alone does not establish compatibility.

Installation

The item is listed as a complete cartridge assembly. Confirm any additional hardware or service fluids needed for installation, as well as the item's condition and service history. Installation should be carried out by an experienced suspension mechanic following the appropriate FOX service procedure.
