FOX 36 RC2 HBO Inverted Cartridge 160 mm, 2005–2010 – 820-08-128

FOX RC2 HBO Inverted damper cartridge, part number 820-08-128. Listed application: FOX 36 with 160 mm travel, model years 2005–2010.

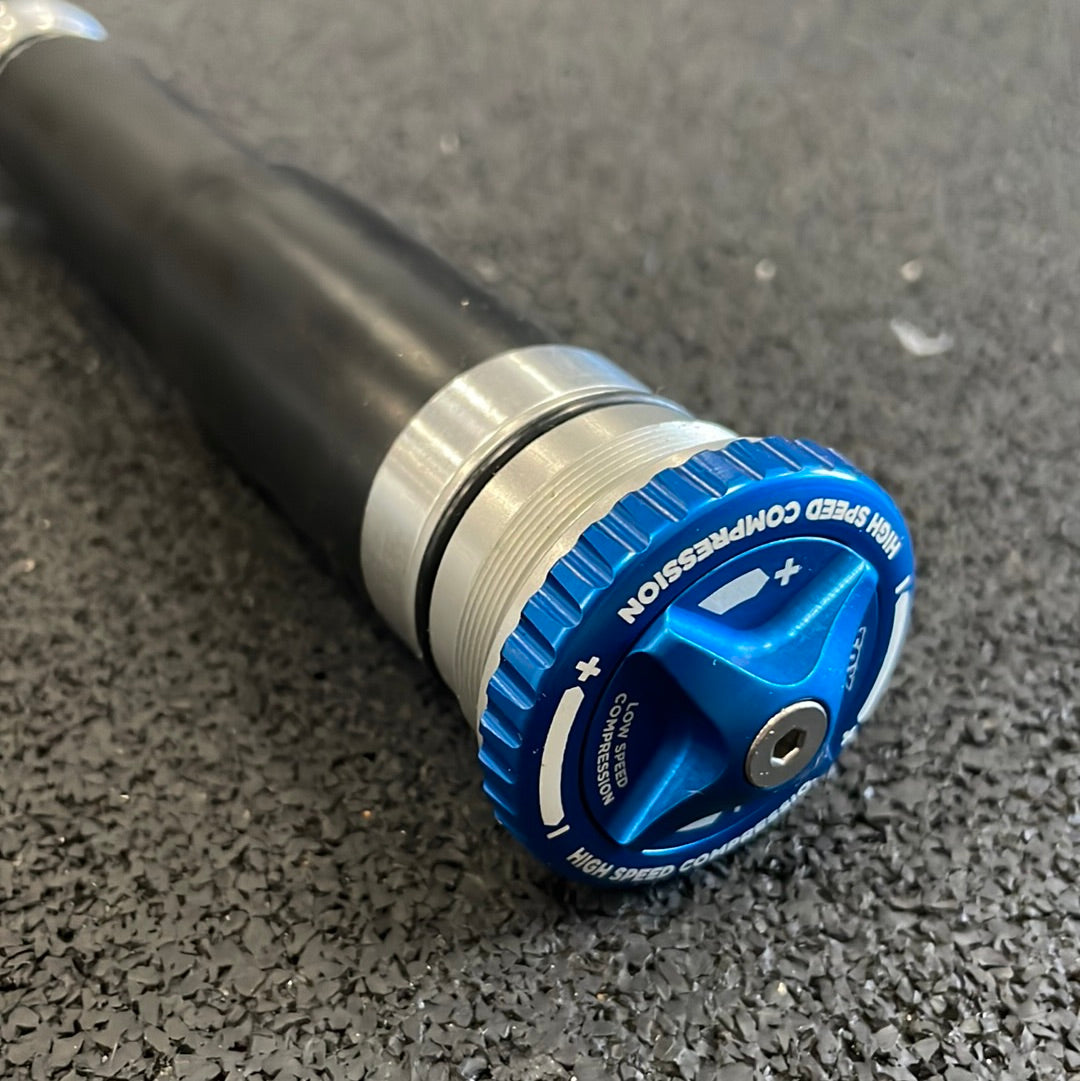

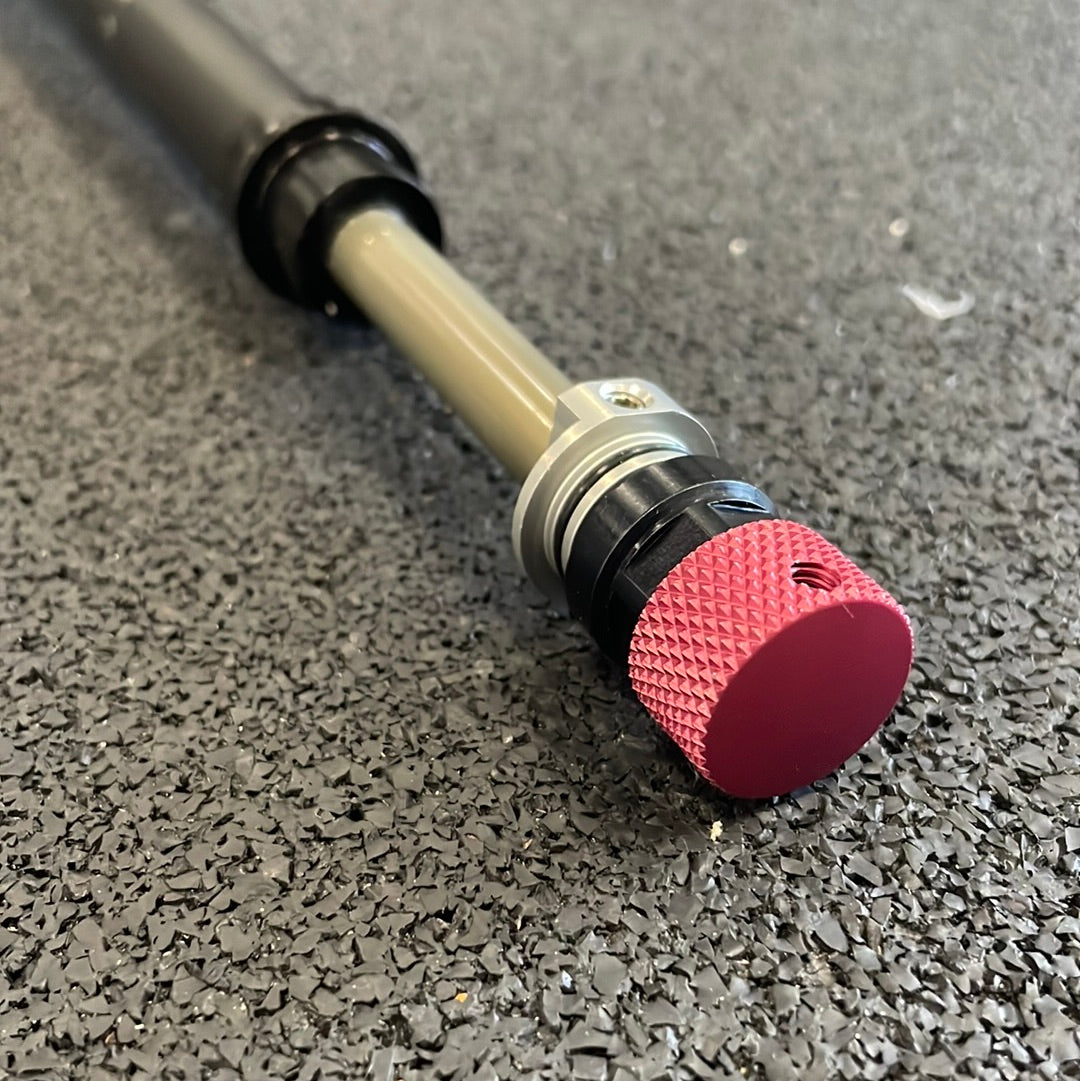

The photos show blue high-speed and low-speed compression adjusters and a red adjuster at the opposite end. This is a damping component, not an air spring, TALAS travel-adjustment unit or complete fork. “Inverted” is retained as part of the cartridge's listed designation, not as a description of the fork chassis.

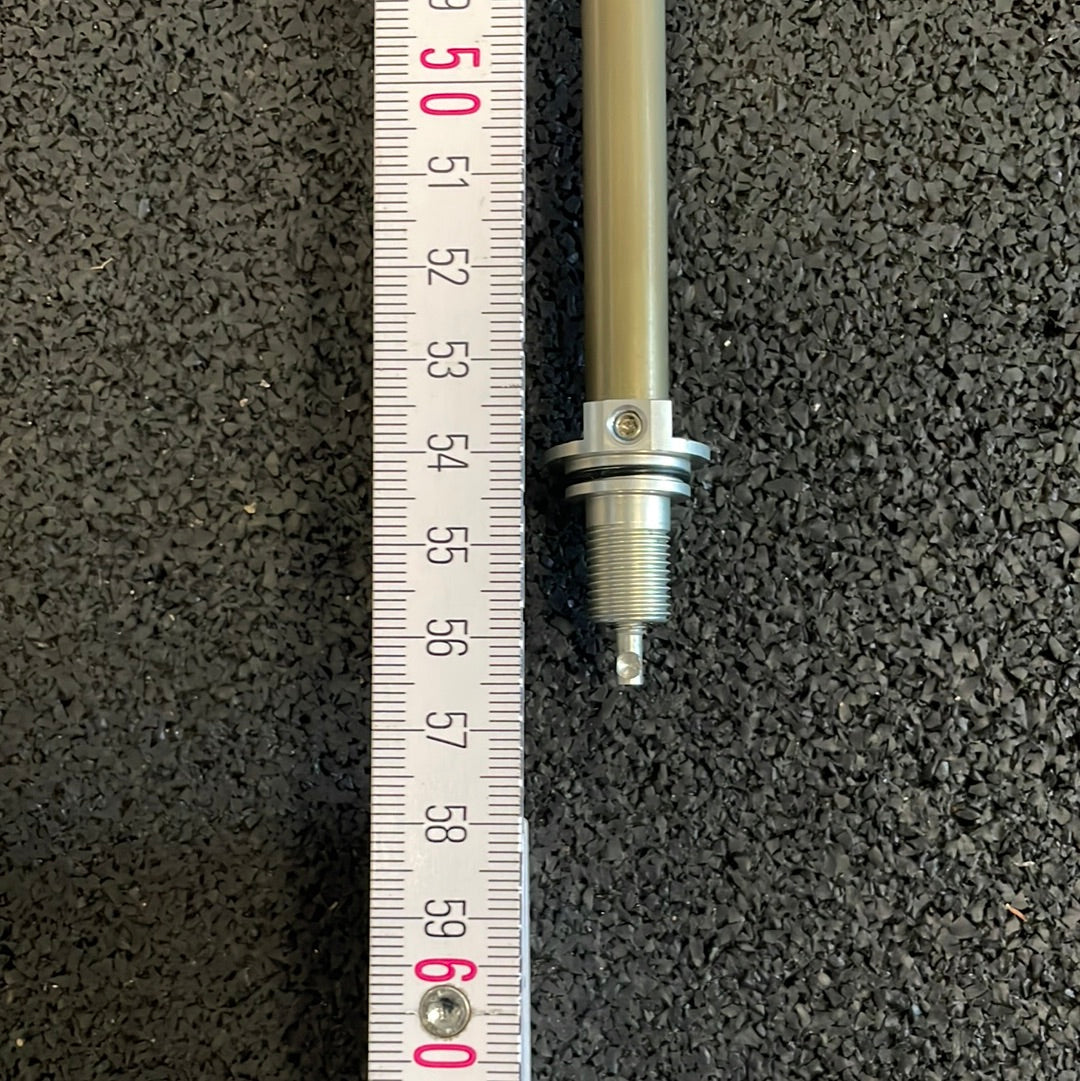

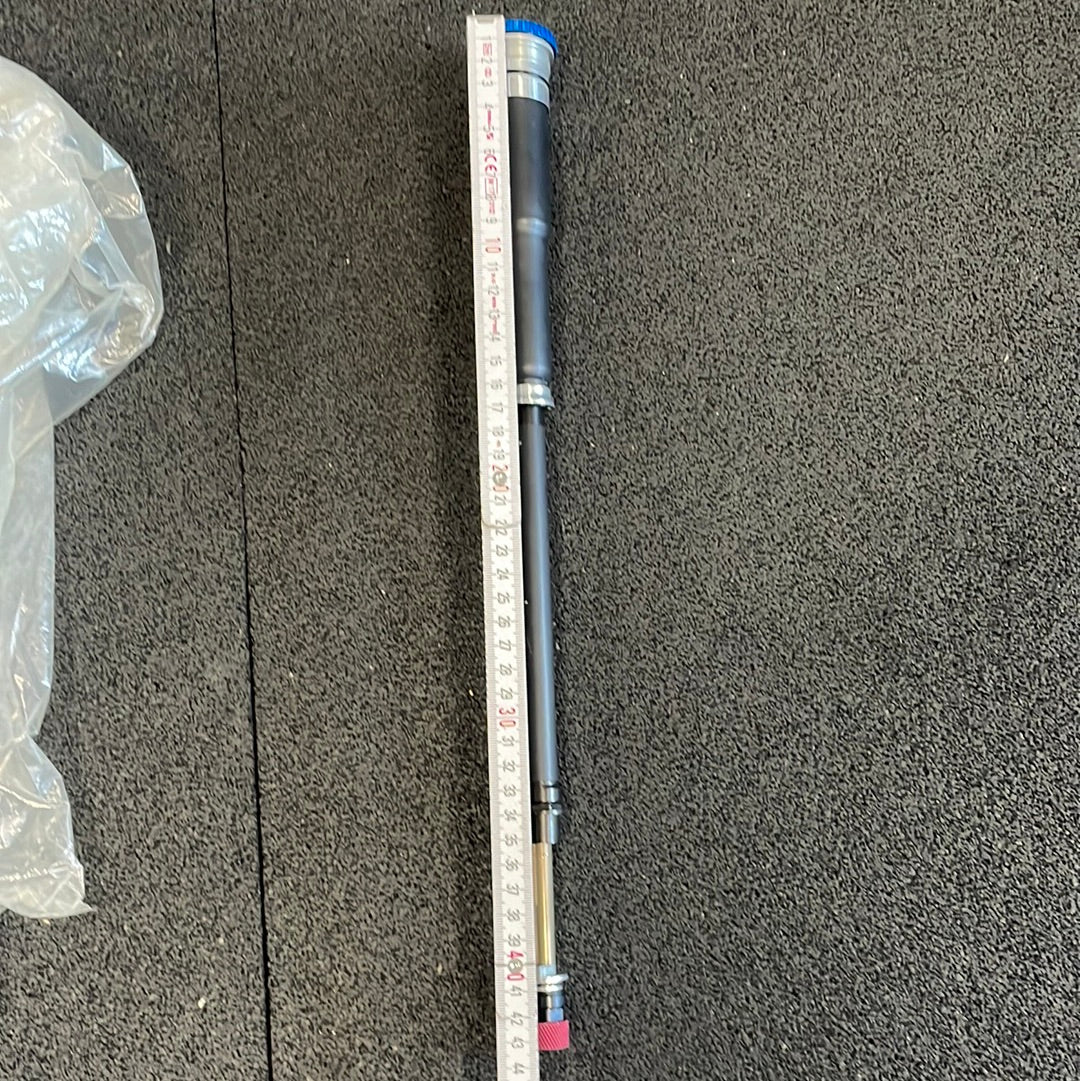

Listed dimensions

• Maximum overall length: 559 mm
• Minimum overall length: 420 mm

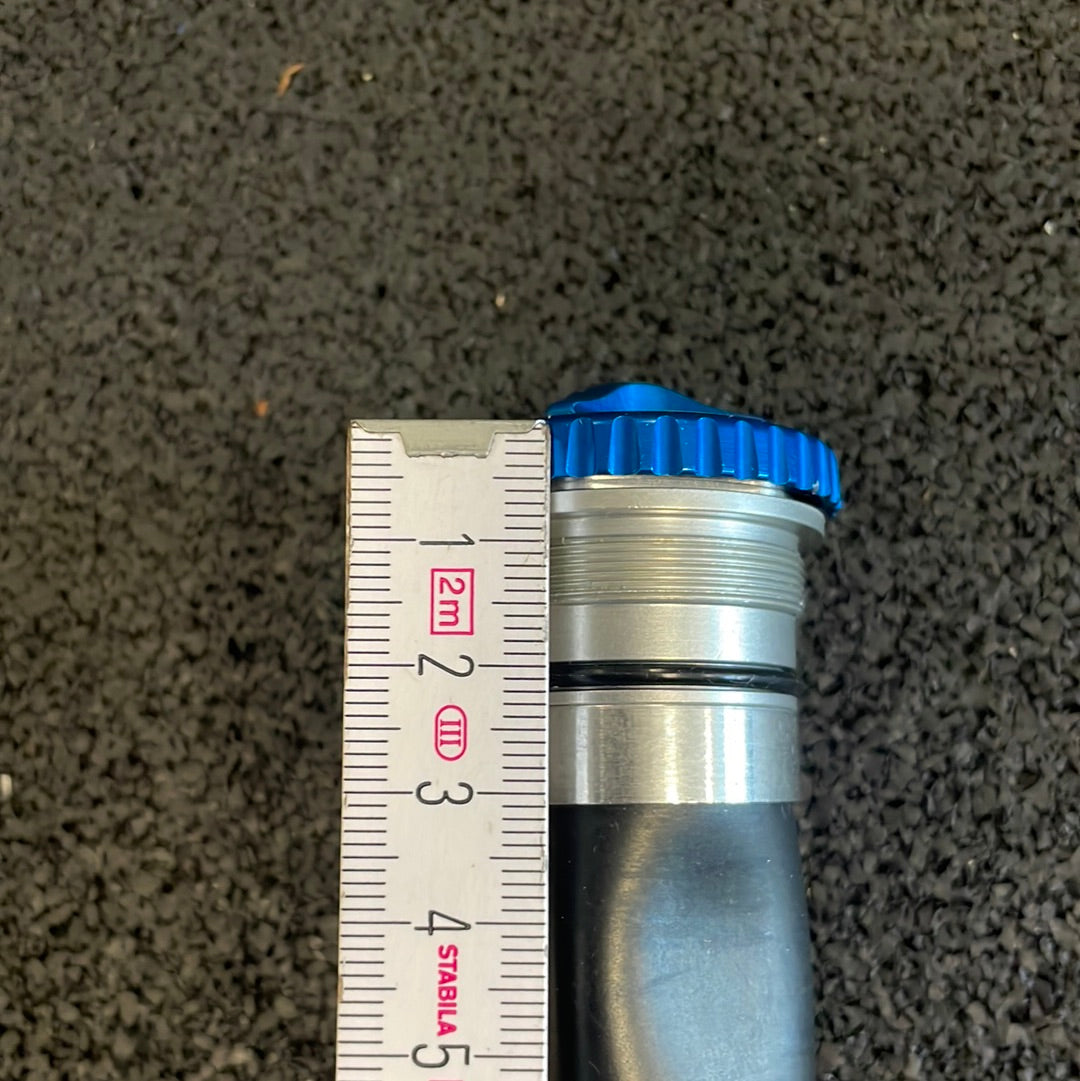

• Thread diameter: 33 mm

Dimensions and the model-year application are retained from the existing product information. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall cartridge length is not the same as fork travel.

Compatibility

Match part number 820-08-128, the cartridge version, mounting interfaces and dimensions to the service specification for your exact fork before ordering. The listed year range does not establish compatibility with every FOX 36 configuration from those years.

Do not assume interchangeability with NBO, GRIP2 or other FOX 36 damper versions.

Installation

Confirm the item's condition and service history and any additional installation hardware or fluids required. Inclusion of additional items is not specified here. Fitment and installation should be carried out by an experienced suspension mechanic following the appropriate FOX service procedure.
