FOX 36 FIT RLC Damper Cartridge 160 mm, Listed as 2010 – 820-08-120

FOX damper cartridge, listed as a FOX 36 FIT RLC version for 160 mm travel, model year 2010. Listed part number: 820-08-120.

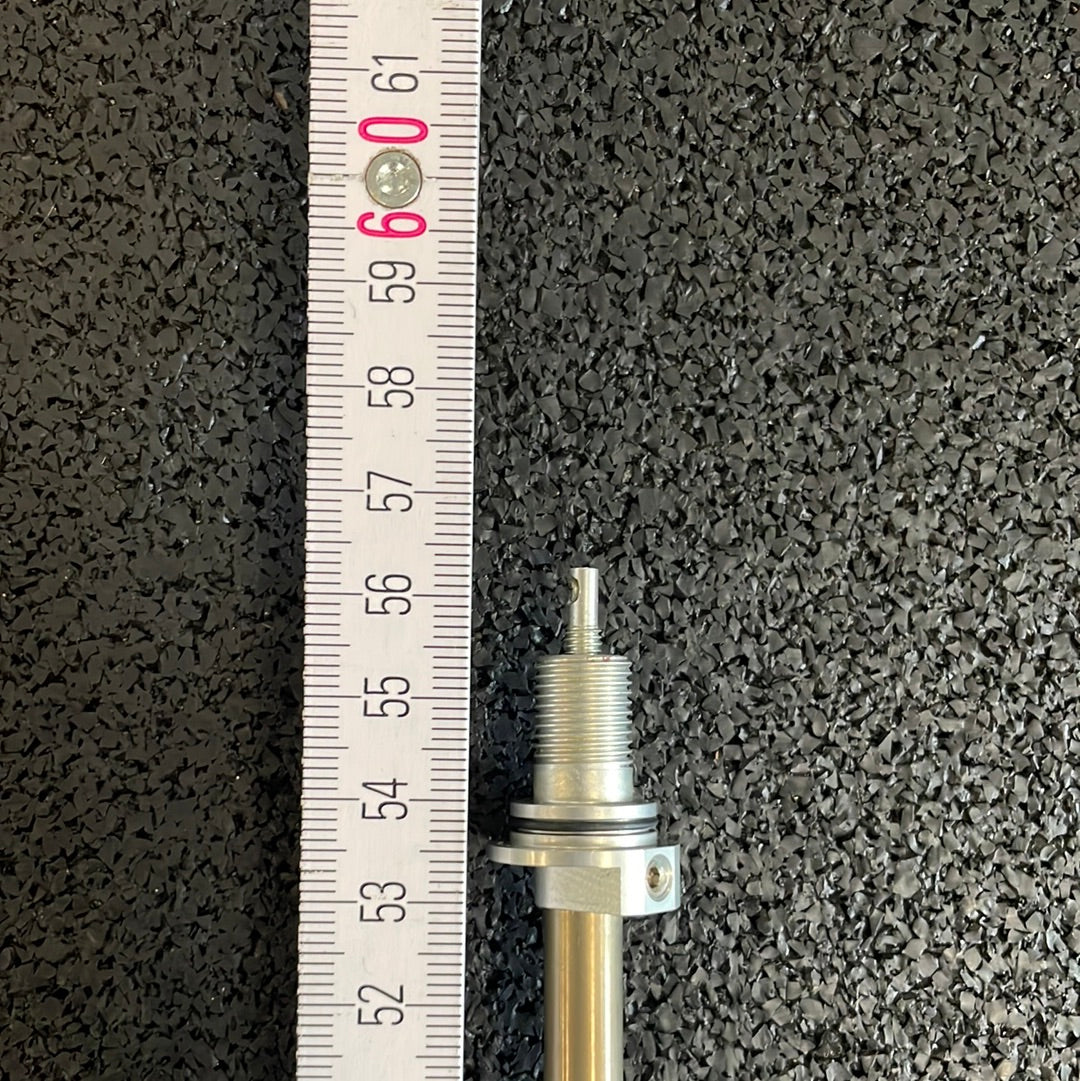

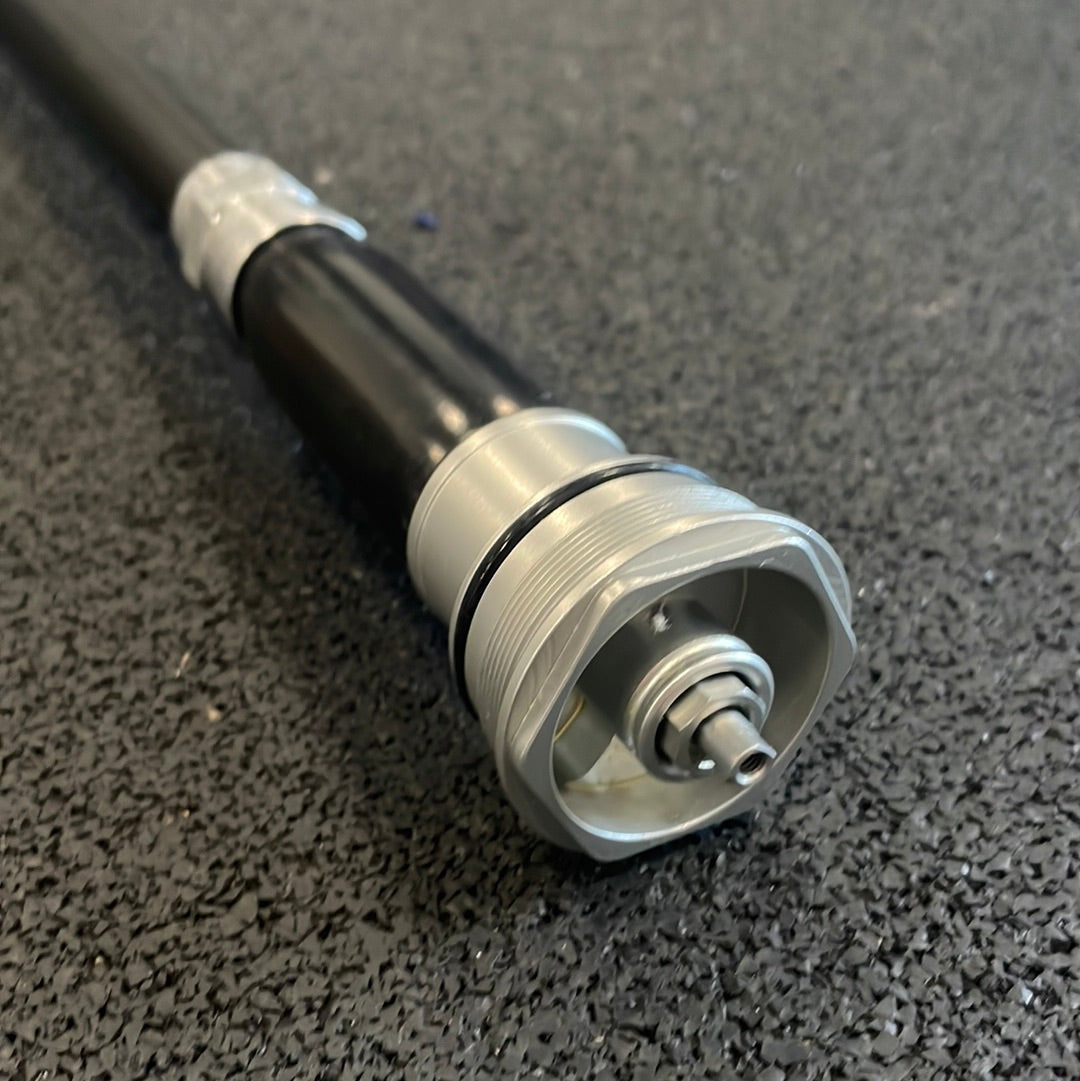

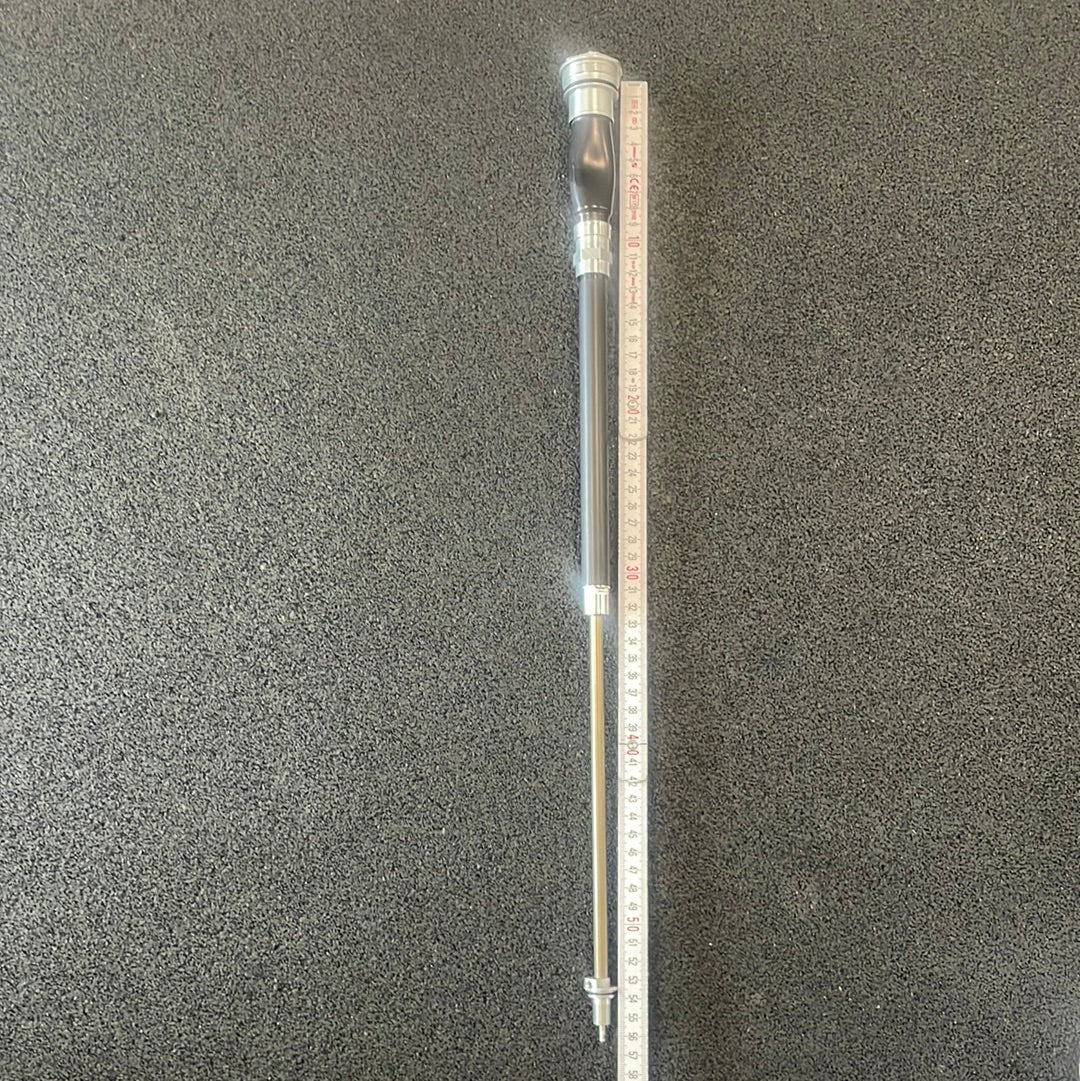

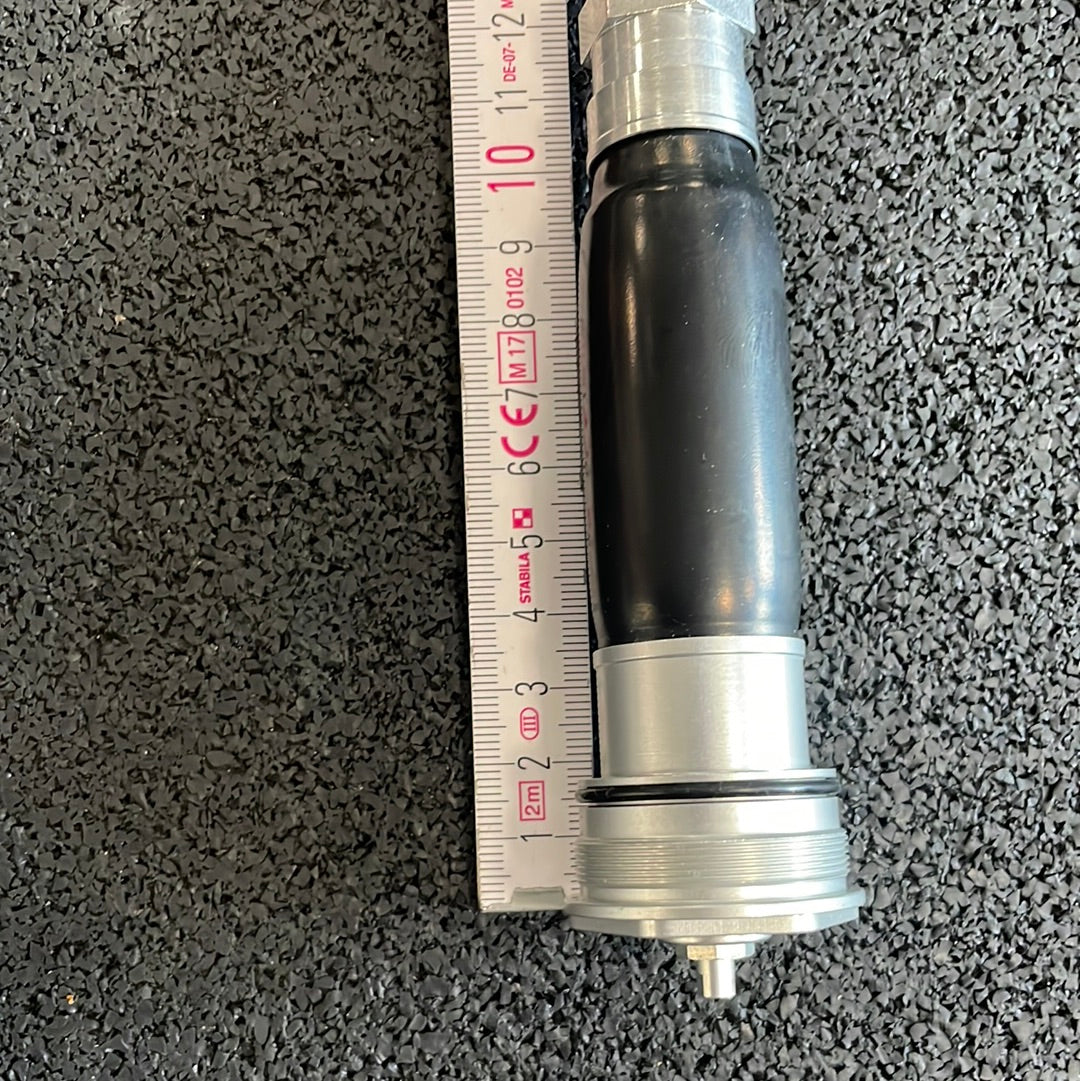

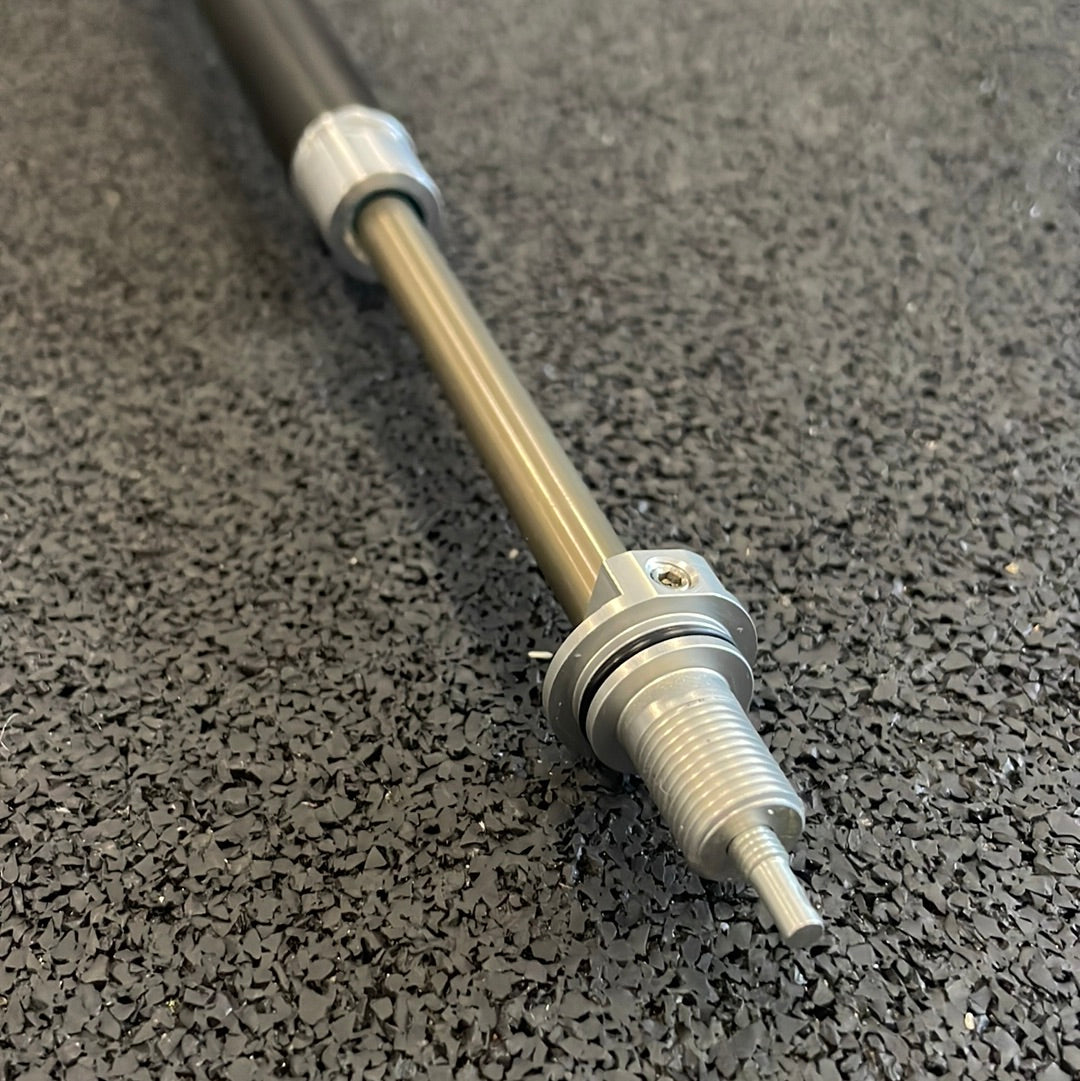

The photos show the cartridge body, bladder section, shaft and threaded mounting ends. External adjustment knobs are not shown fitted in the reviewed photos; confirm the supplied adjusters and installation hardware before ordering.

Listed dimensions

• Maximum overall length: 561 mm
• Minimum overall length: 381 mm
• Thread diameter: 33.2 mm

These measurements are retained from the existing shop information. The photos include a measuring rule, but measurement reference points, thread pitch and tolerances still require confirmation. Overall cartridge length is not the same as fork travel.

Identification and compatibility

Archived FOX documentation describes the 36 FIT RLC fork family, but a direct parts-list match for 820-08-120 has not been located during this review. The exact 2010 and 160 mm application therefore remains the existing shop identification, not independently confirmed fitment.

Match the complete part number, damper version, mounting interfaces and dimensions to the service specification for your exact fork. This is a damping component, not a TALAS travel-adjustment assembly, air spring or complete fork. Do not assume compatibility with other FOX 36 versions or travel configurations.

Installation

Confirm the item's condition, service history and any additional adjuster hardware, mounting parts or fluids required. Installation should be carried out by an experienced suspension mechanic following the appropriate FOX procedure.
