FOX 32 FIT RLC Damper Cartridge 80 mm – 820-08-048

FOX 32 damper cartridge, listed as a FIT RLC version for an 80 mm travel configuration. Listed part number: 820-08-048.

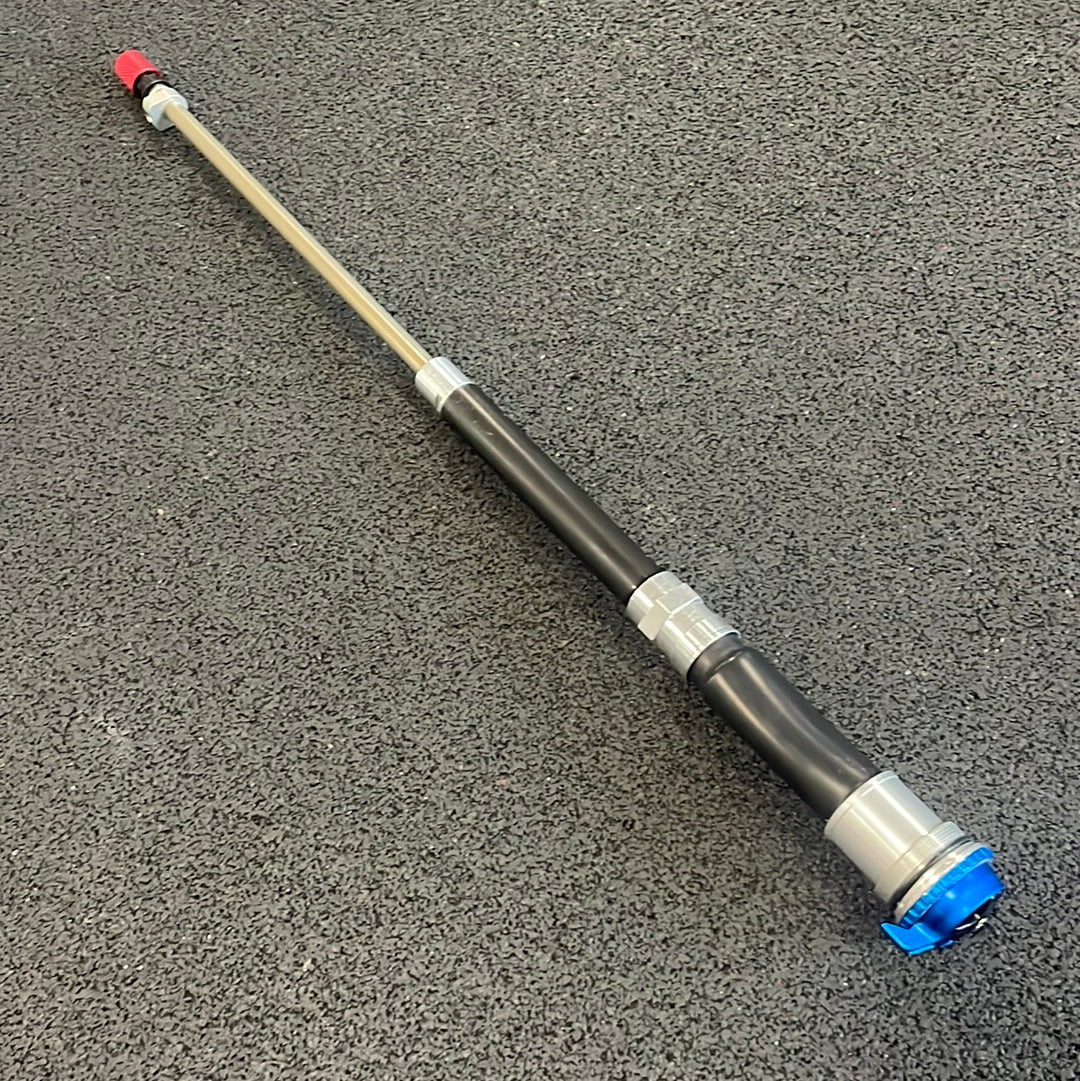

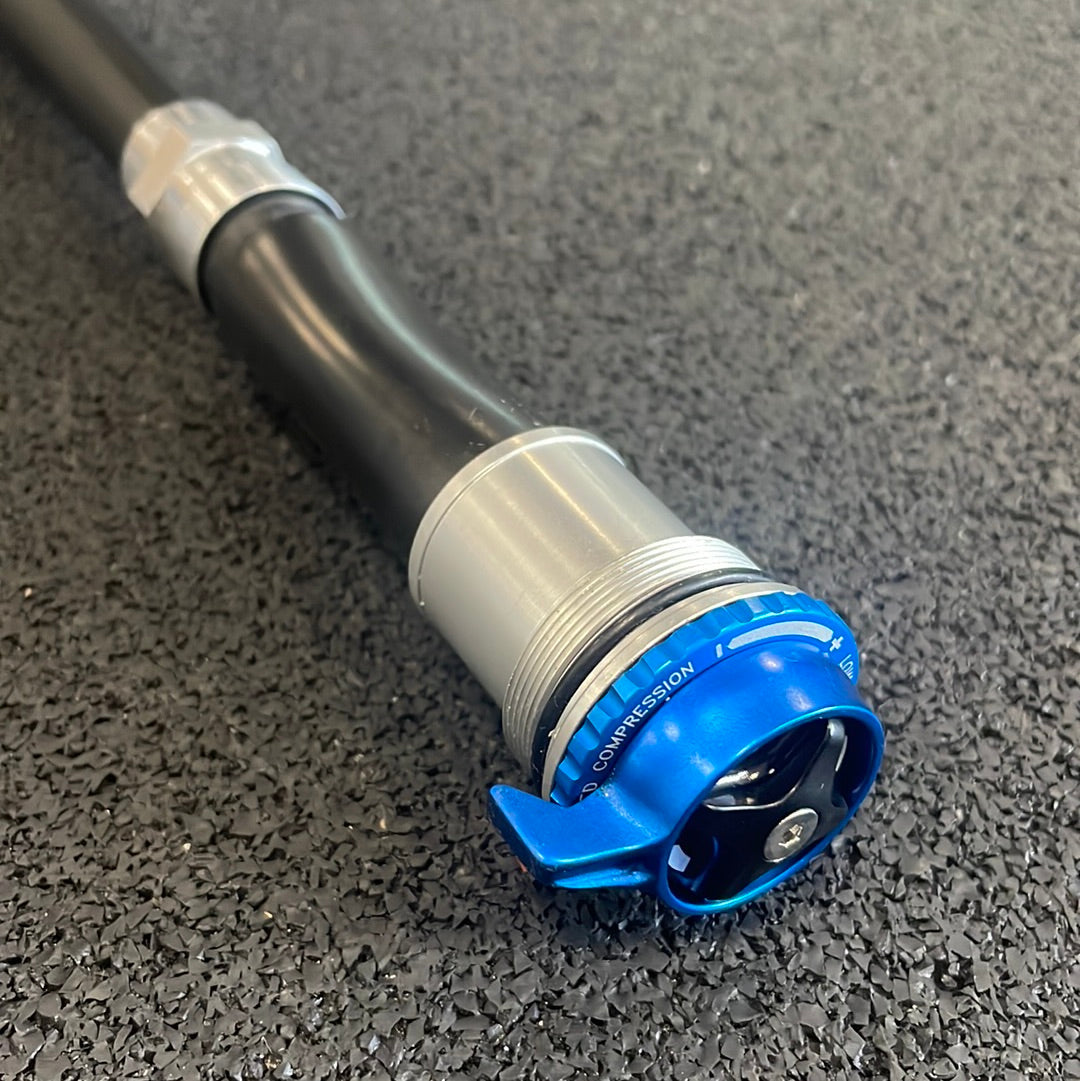

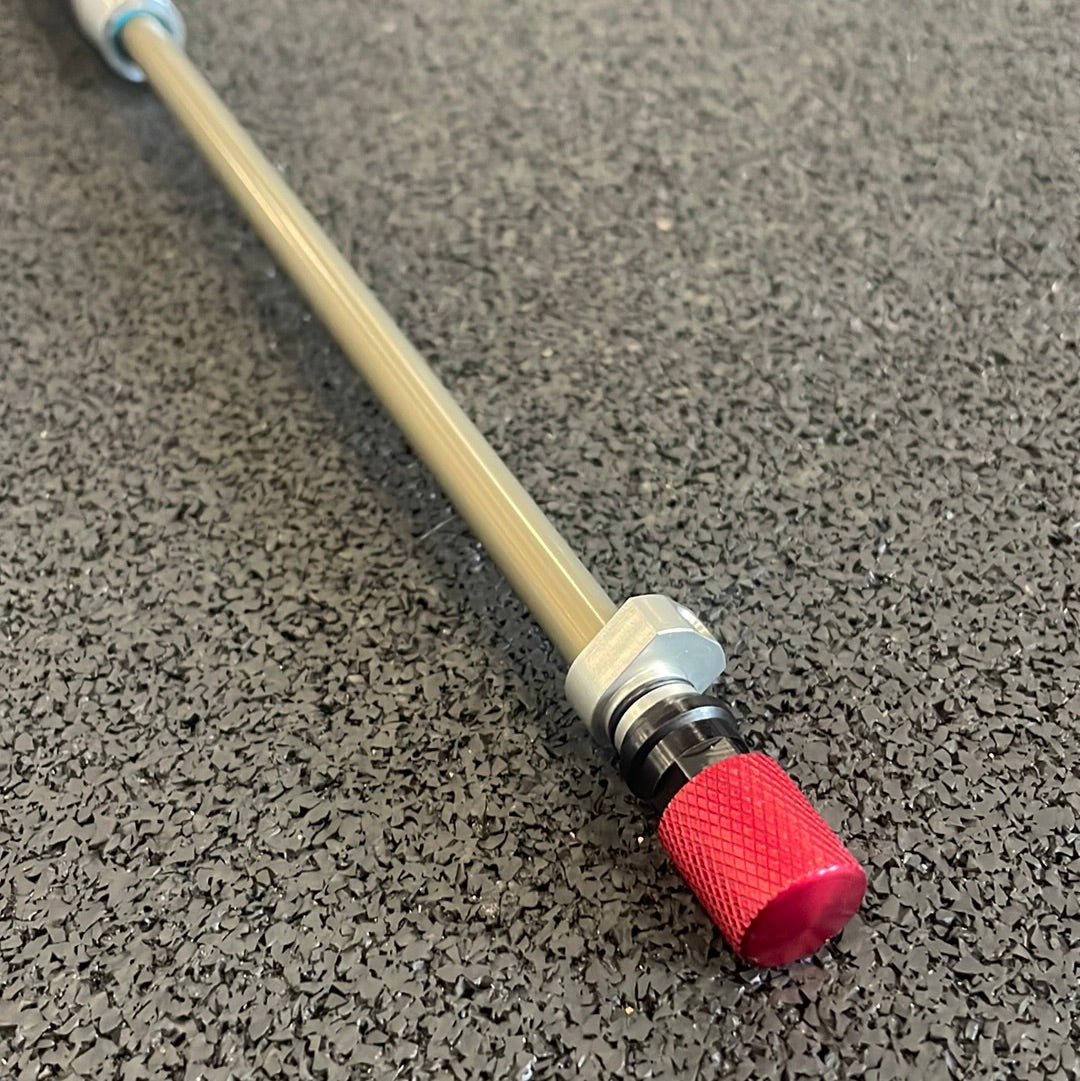

The photos show a blue compression control and lever, a black central adjuster and a red adjuster at the opposite end. This is a damping component, not an air spring, TALAS travel-adjustment assembly or complete fork.

Listed dimensions

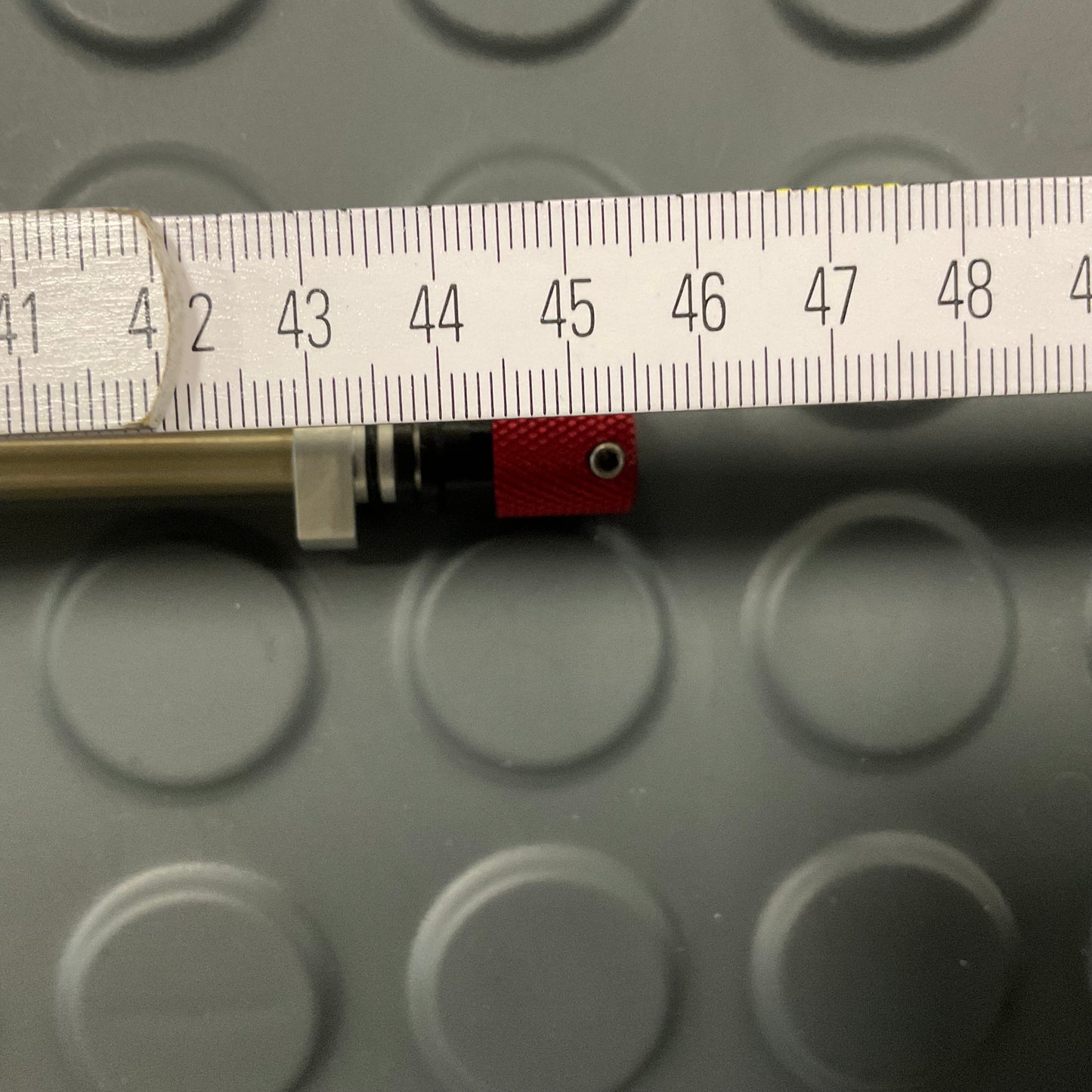

• Maximum overall length: 455 mm
• Minimum overall length: 360 mm
• Thread diameter: 29 mm

These dimensions and the FIT RLC 80 mm identification are retained from the existing shop information. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall cartridge length is not the same as fork travel.

Archive check and compatibility

Archived FOX documentation confirms F80 FIT RLC forks with 80 mm travel, but a direct parts-list match for 820-08-048 has not been located during this review. The general F80 documentation is not a part-number-specific fitment confirmation, and no exact model year is specified here.

Match the complete part number, damper version, mounting interfaces and dimensions to the service specification for your exact fork before ordering. Do not assume compatibility with every FOX 32 or F80 fork, open-bath versions or other travel configurations.

Installation

Confirm the item's condition and service history, along with any additional mounting hardware or fluids required. Inclusion of additional items is not specified here. Installation should be carried out by an experienced suspension mechanic following the correct FOX procedure for the identified fork and cartridge.
