FOX 32 Remote Damper Cartridge 100 mm – 820-08-055

FOX 32 remote damper cartridge, listed under part number 820-08-055 for a 100 mm travel configuration.

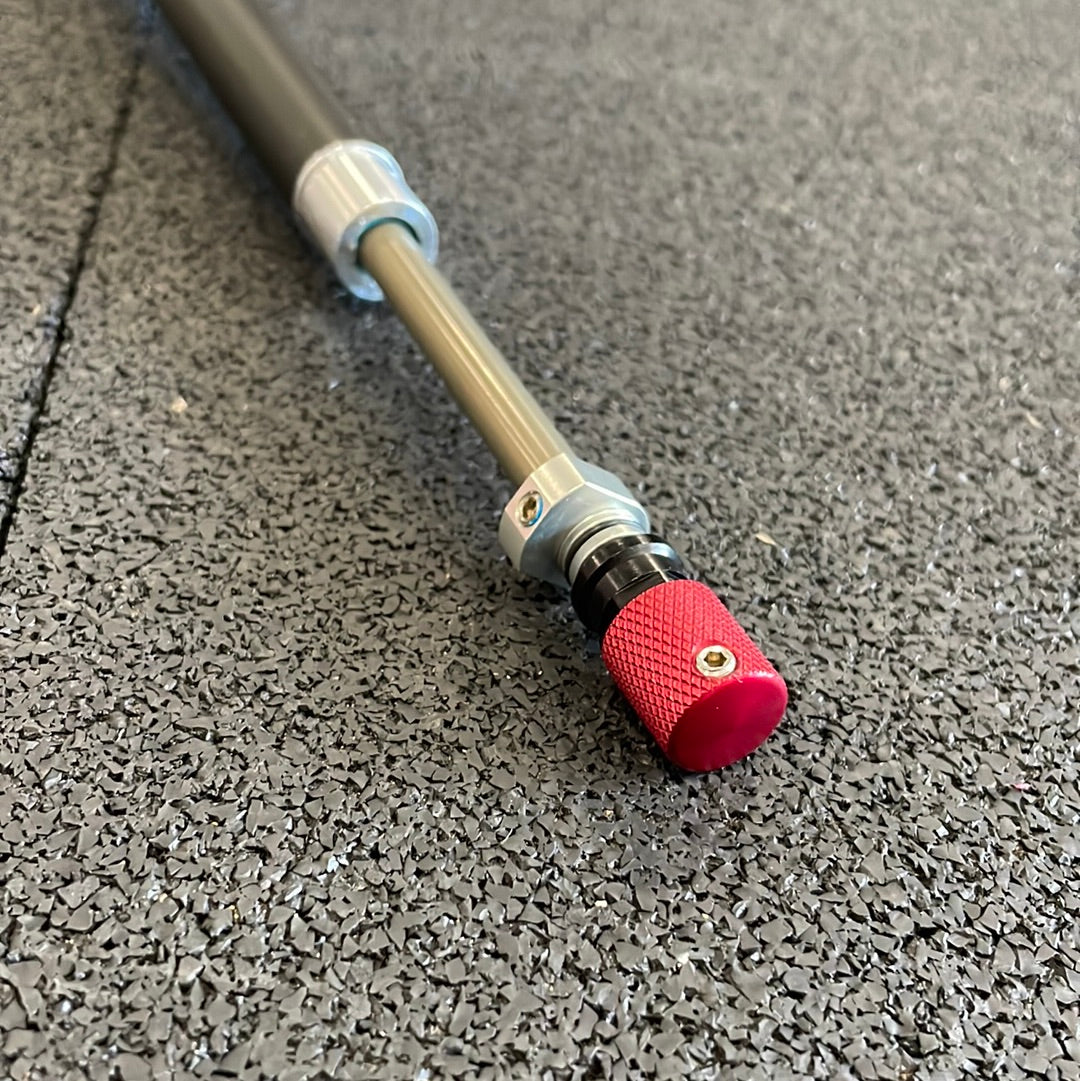

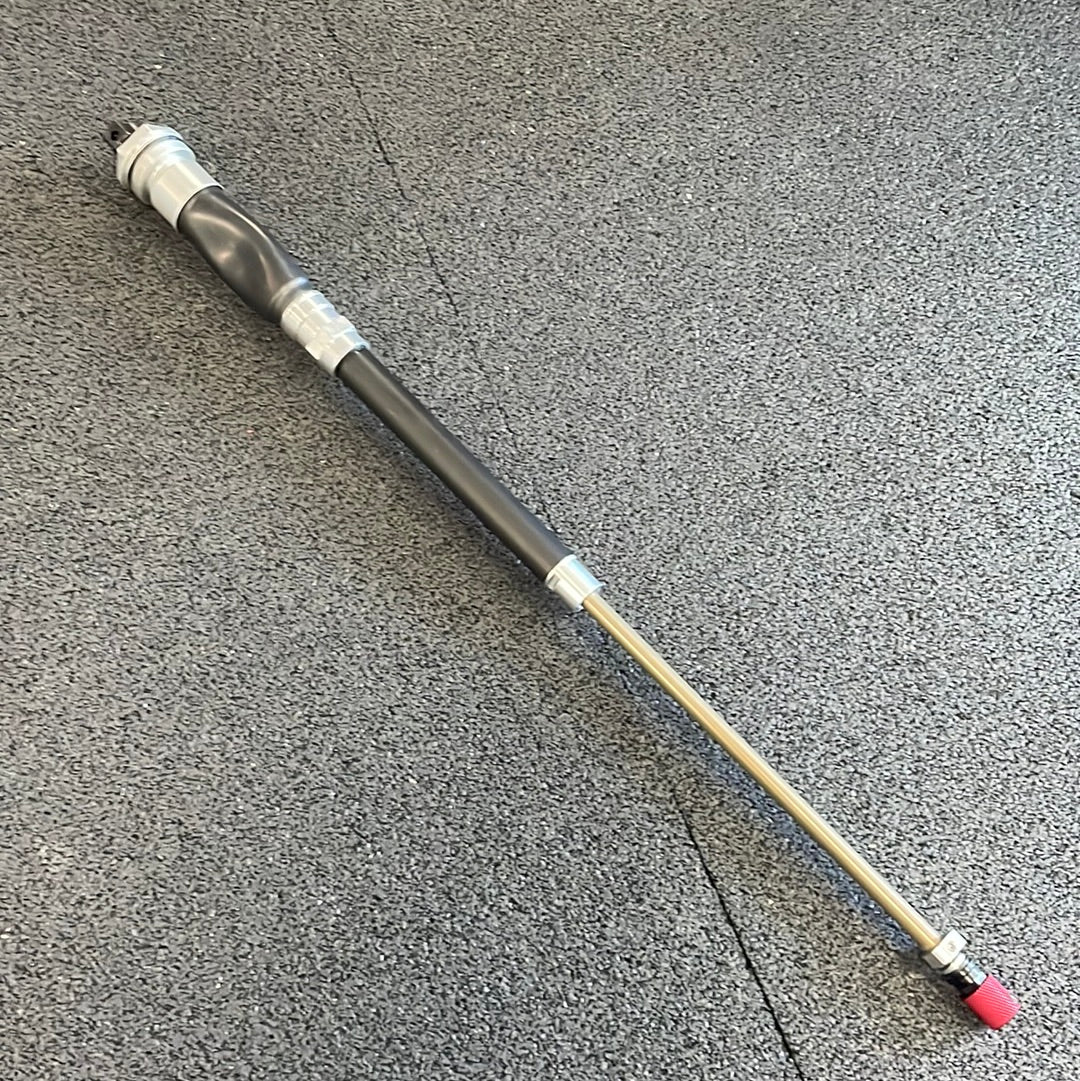

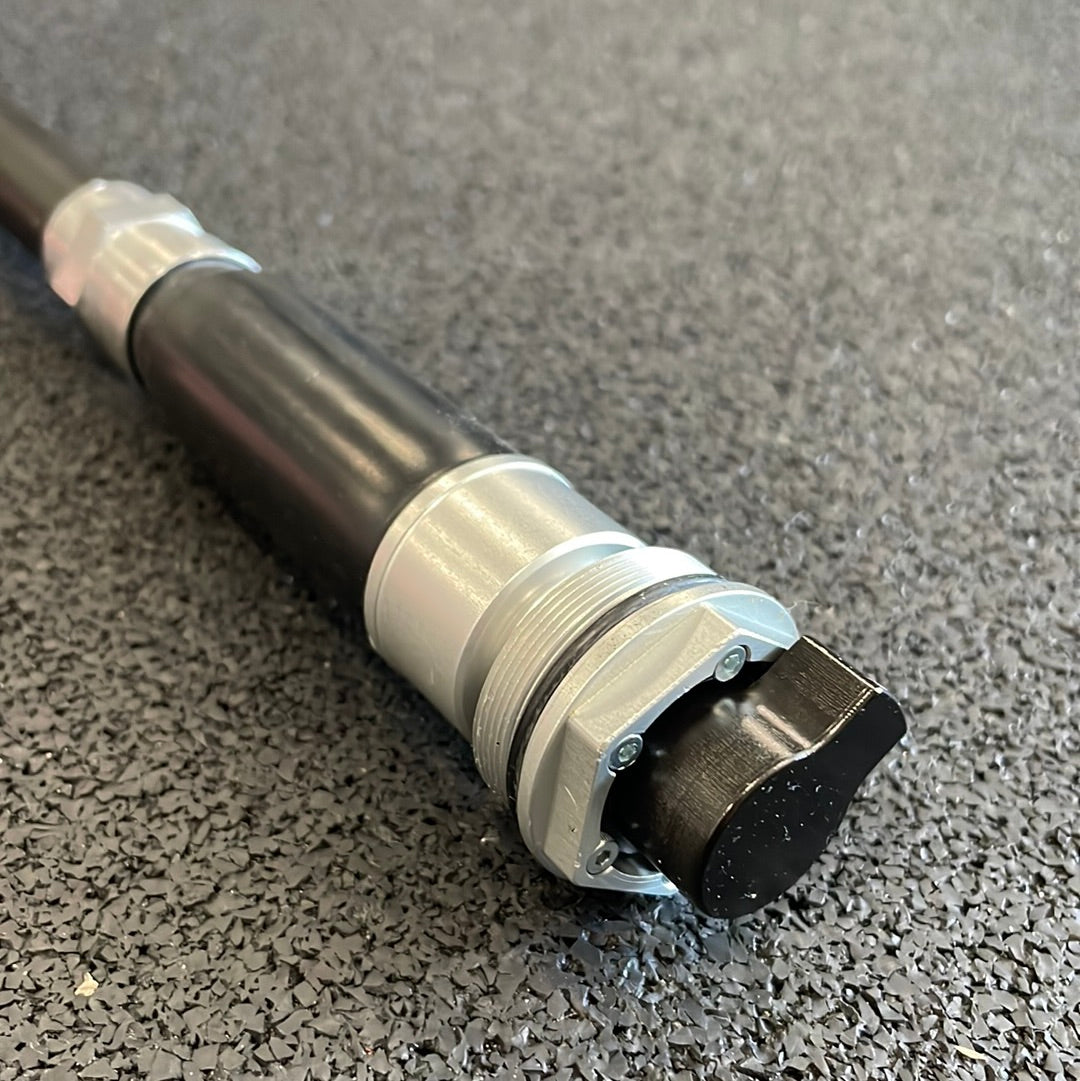

The product photos show a cartridge assembly with a remote interface at one end and a red adjuster at the opposite end. This is a damping component, not an air spring or complete fork.

Listed dimensions

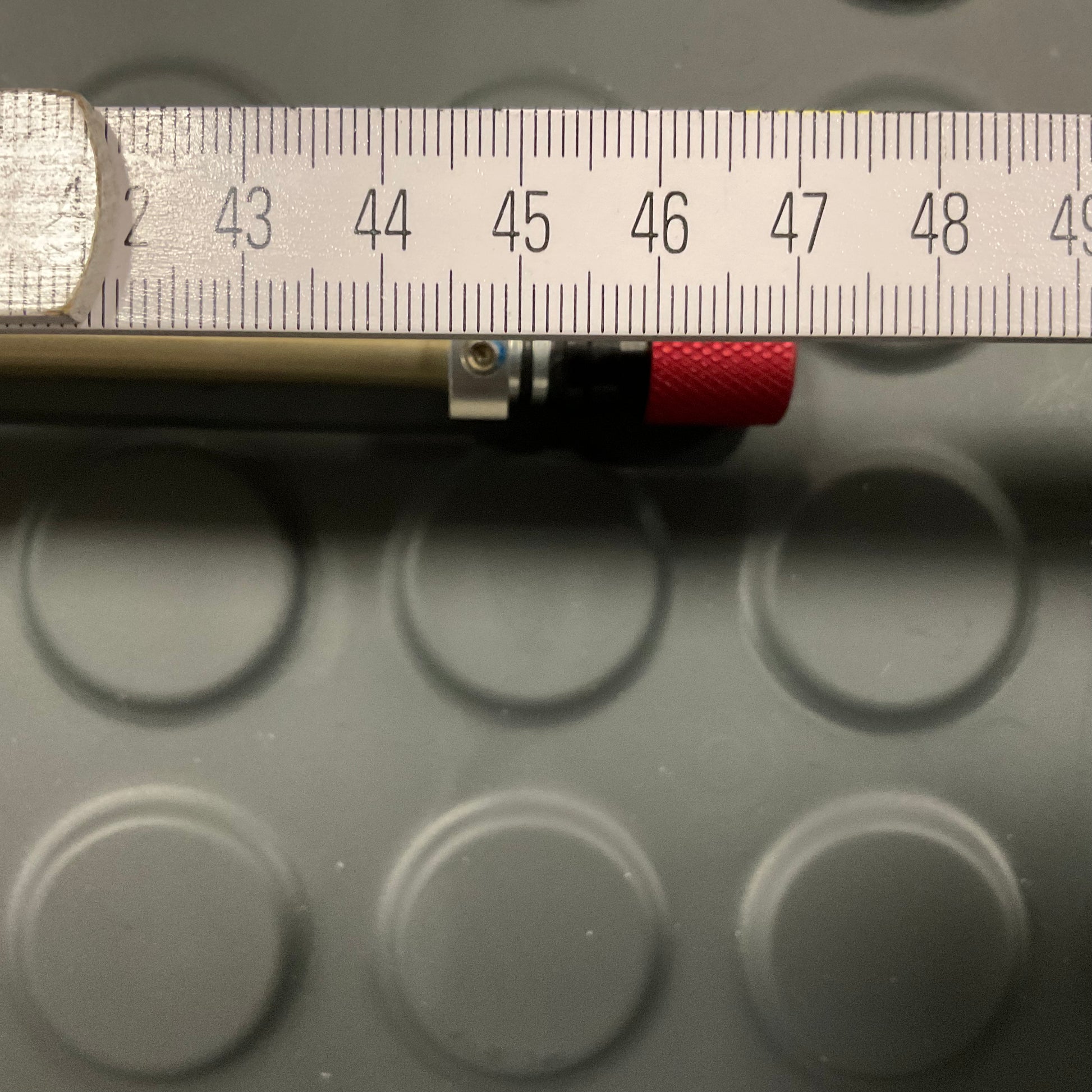

• Maximum overall length: 470 mm

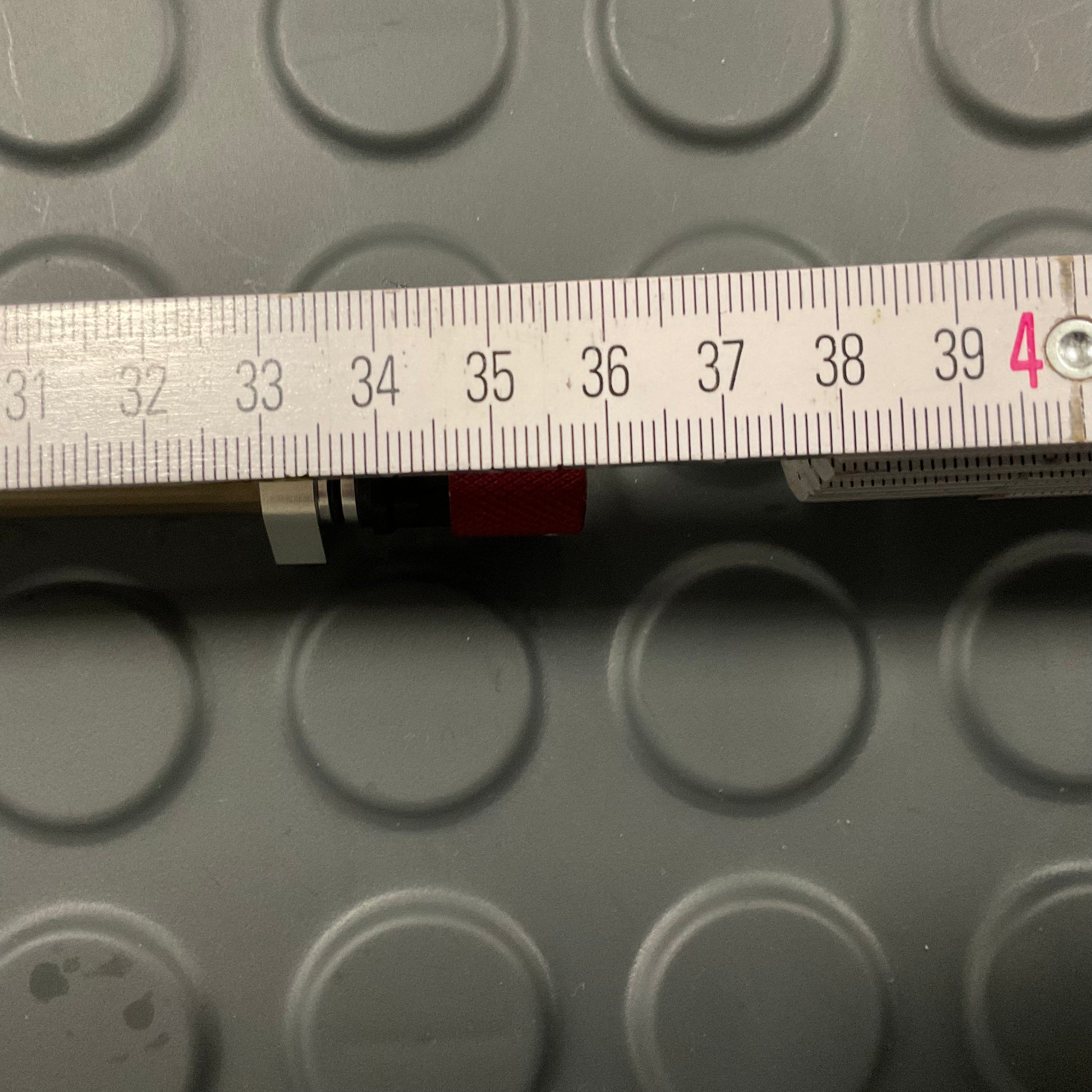

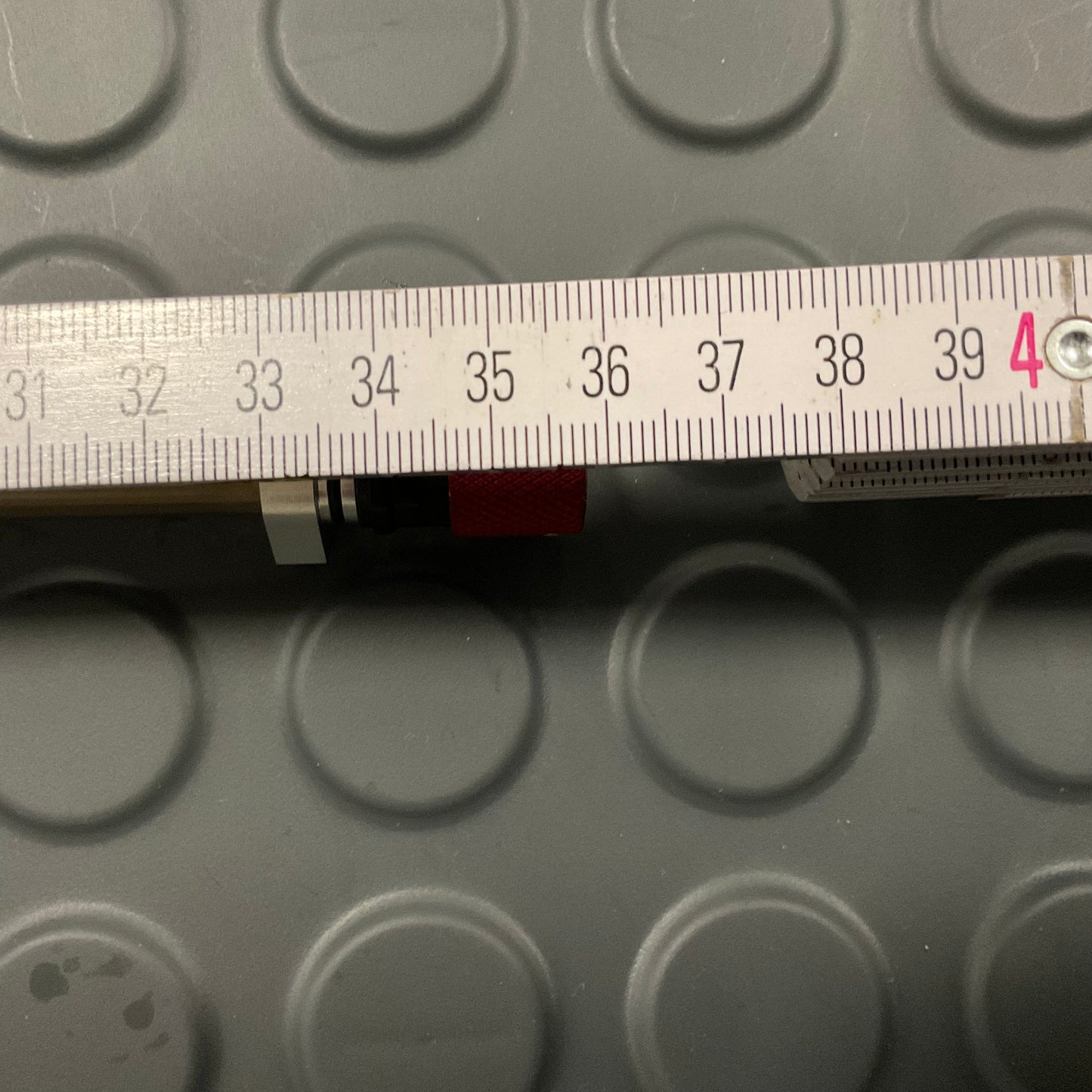

• Minimum overall length: 358 mm

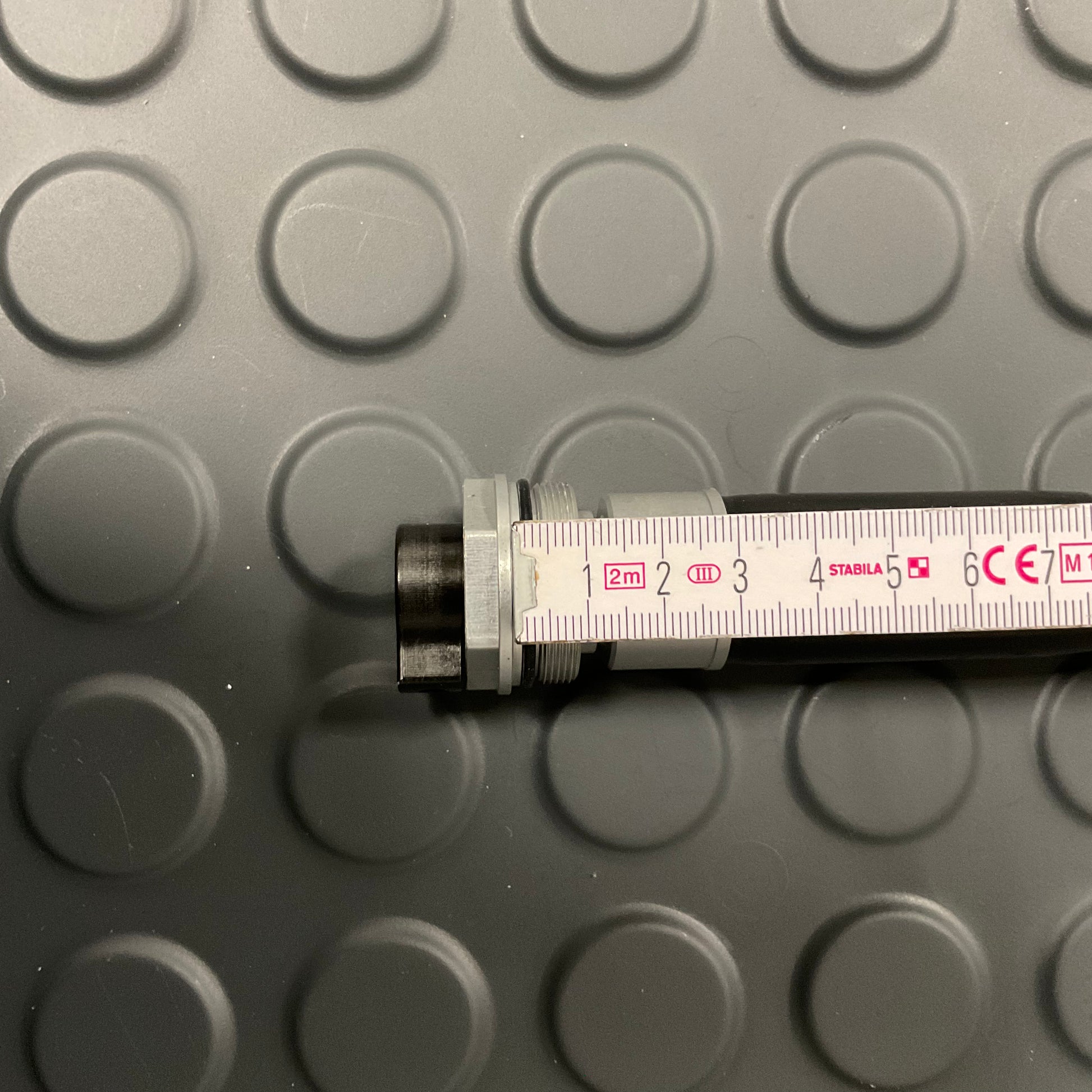

• Thread diameter: 29 mm

These dimensions and the 100 mm application are retained from the existing item information. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall cartridge length is not the same as fork travel.

Identification and compatibility

Archived FOX documentation confirms that older FOX 32 forks were available with remote lockout, including different open-bath and FIT versions. A direct archived parts-list match establishing the exact model year and fork application of 820-08-055 has not been located. No specific model year or universal remote-system compatibility is claimed for this item.

Match the complete part number, damper design, mounting interfaces and remote mechanism to your exact fork before ordering. Do not infer compatibility solely from the FOX 32 name or 100 mm travel.

Supplied equipment and installation

A handlebar remote lever, cable and housing are not specified as included. Confirm the supplied hardware, condition and service history before purchasing. Installation and remote setup should be carried out by an experienced suspension mechanic using the instructions for the identified fork and damper version.
