FOX 32 Remote RL Damper Cartridge 120 mm – 820-04-153

FOX 32 Remote RL damper cartridge, listed under part number 820-04-153 for a 120 mm travel configuration.

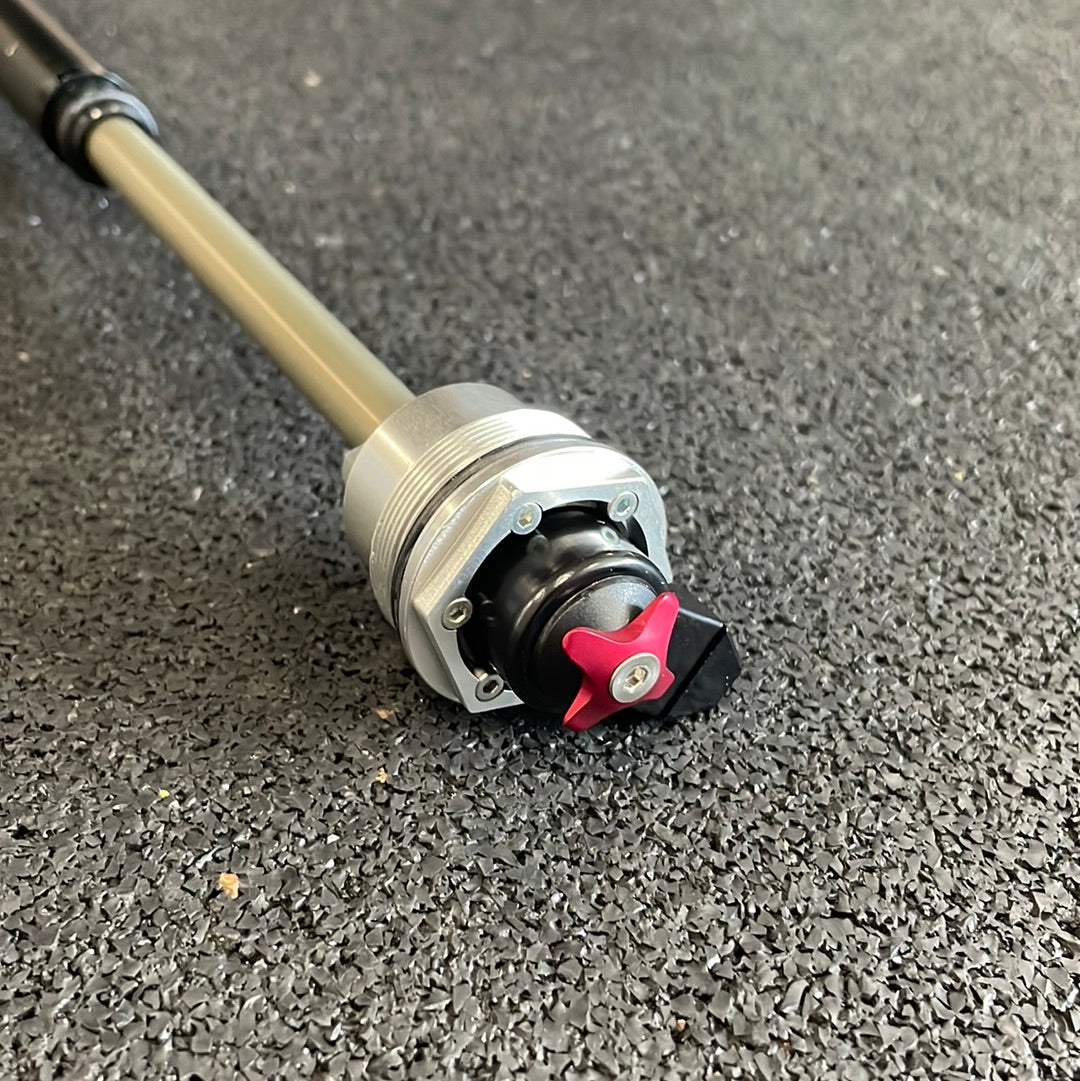

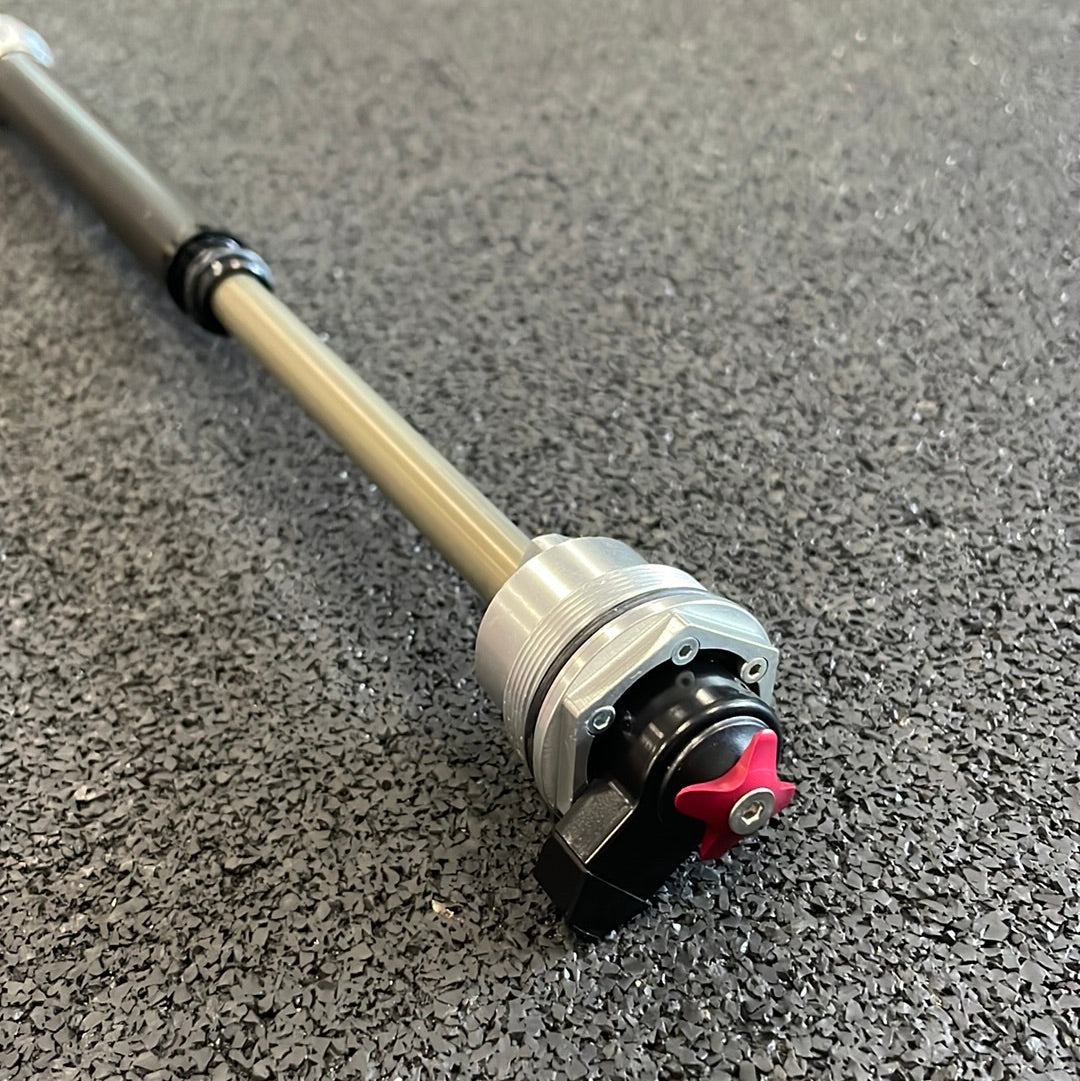

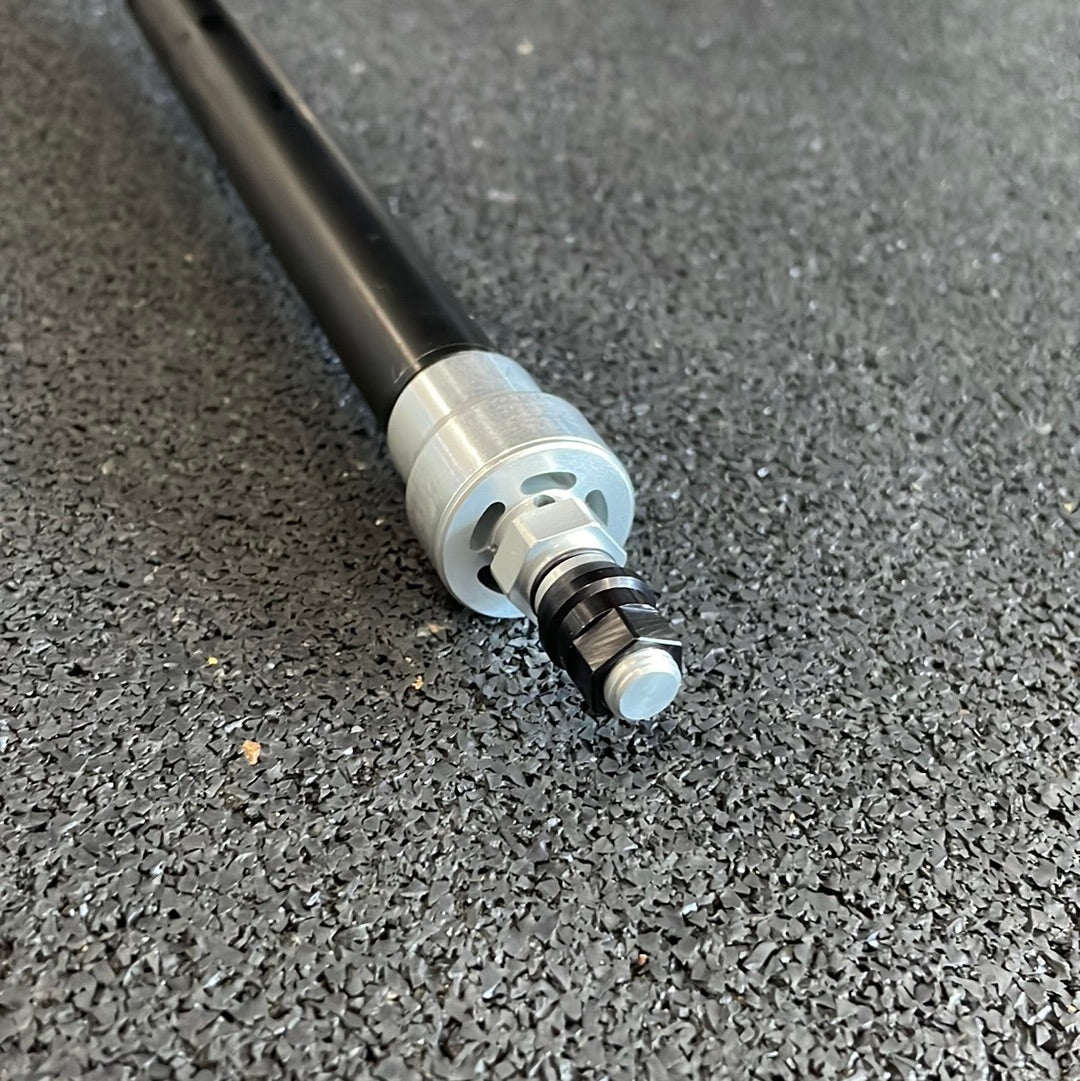

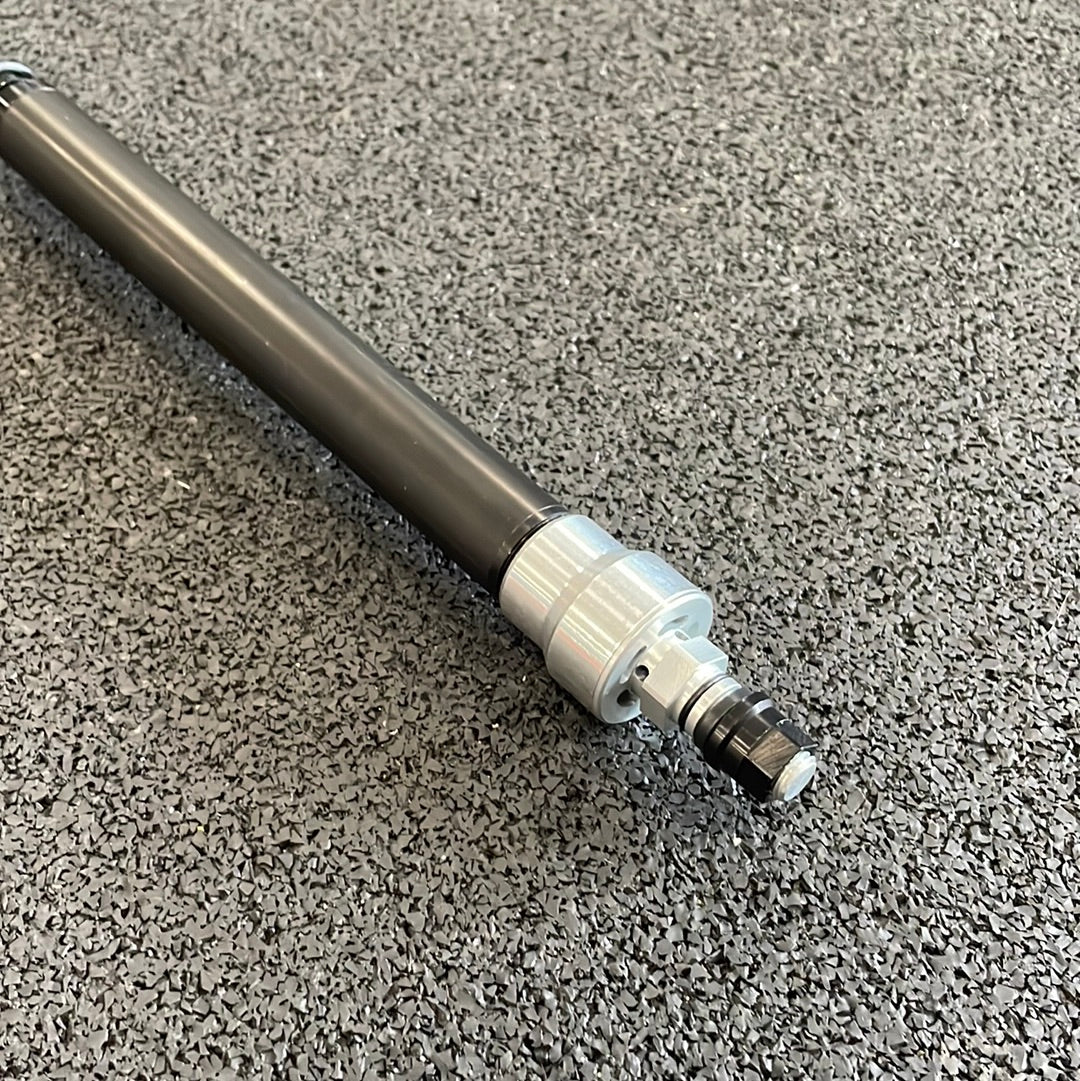

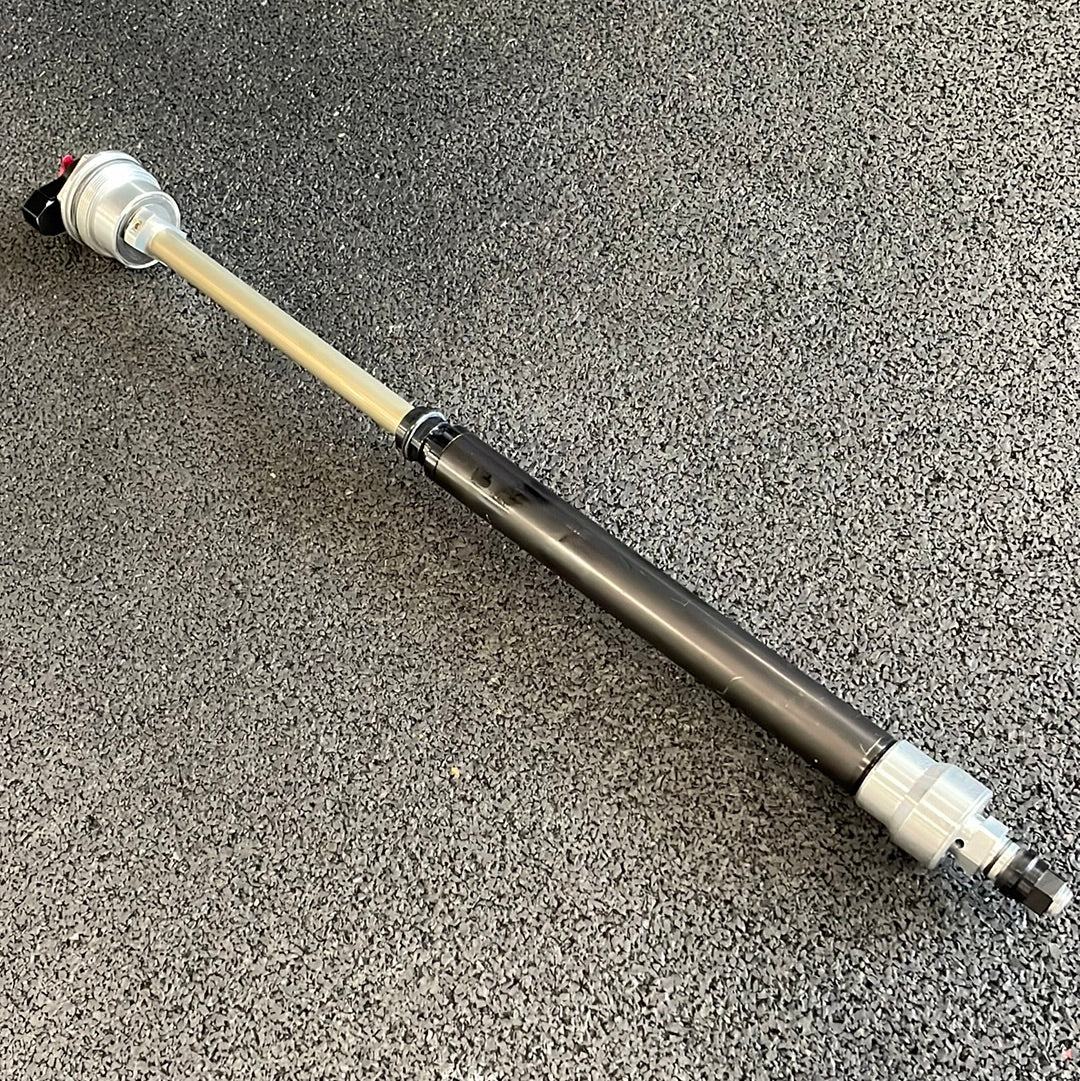

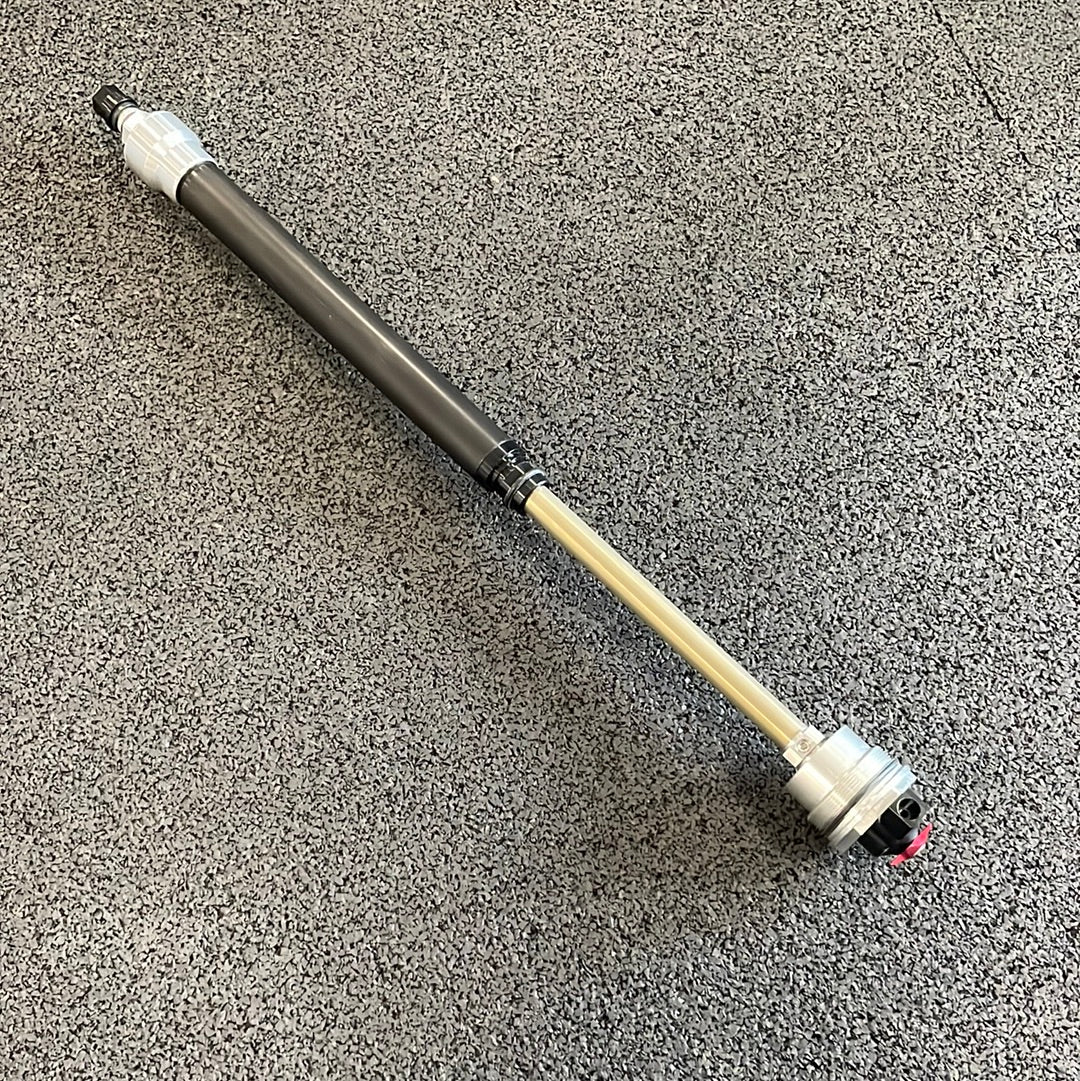

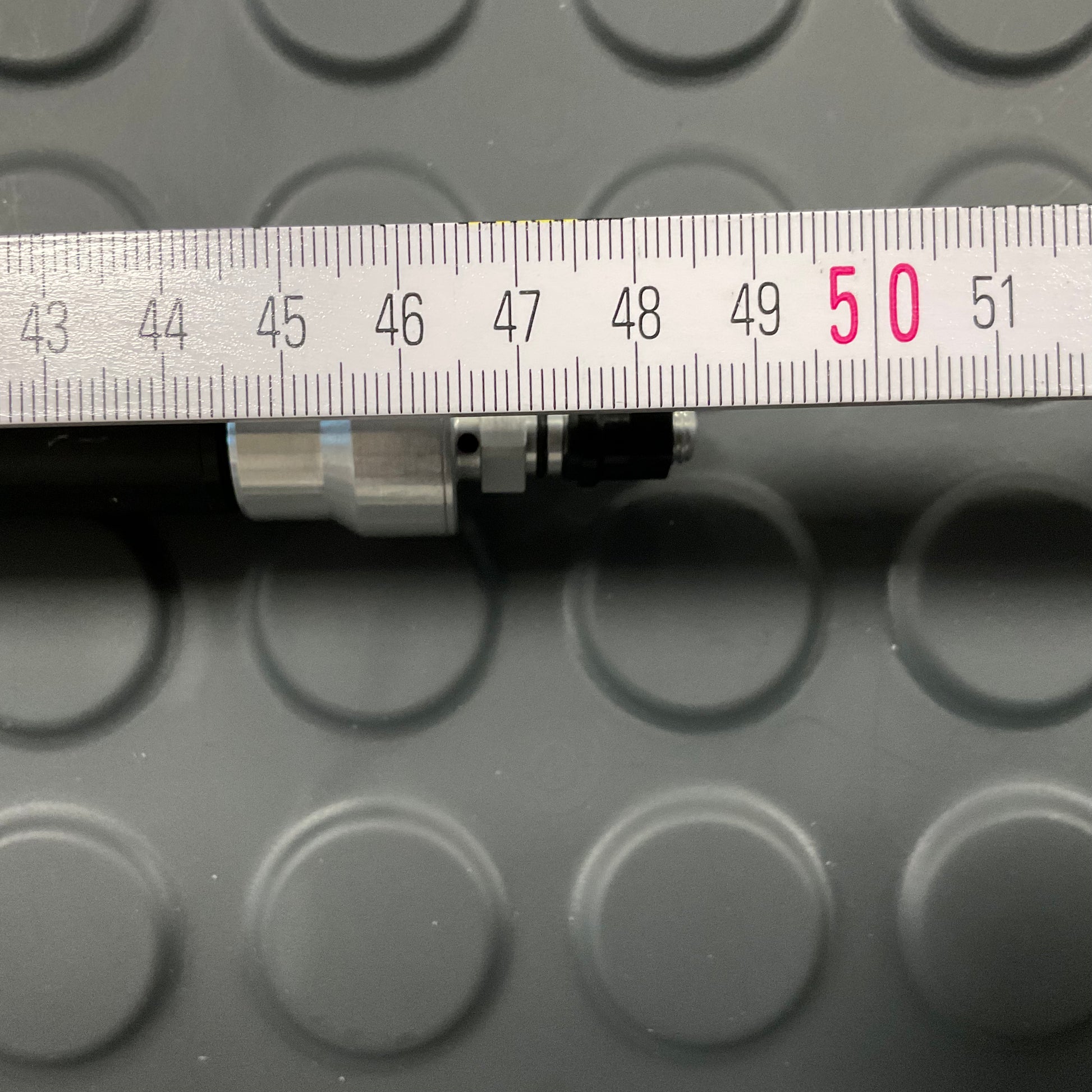

The photos show the assembly with a remote interface, a red adjuster at the top end and the lower mounting end. This is a damping component, not an air spring, TALAS travel-adjustment assembly or complete fork.

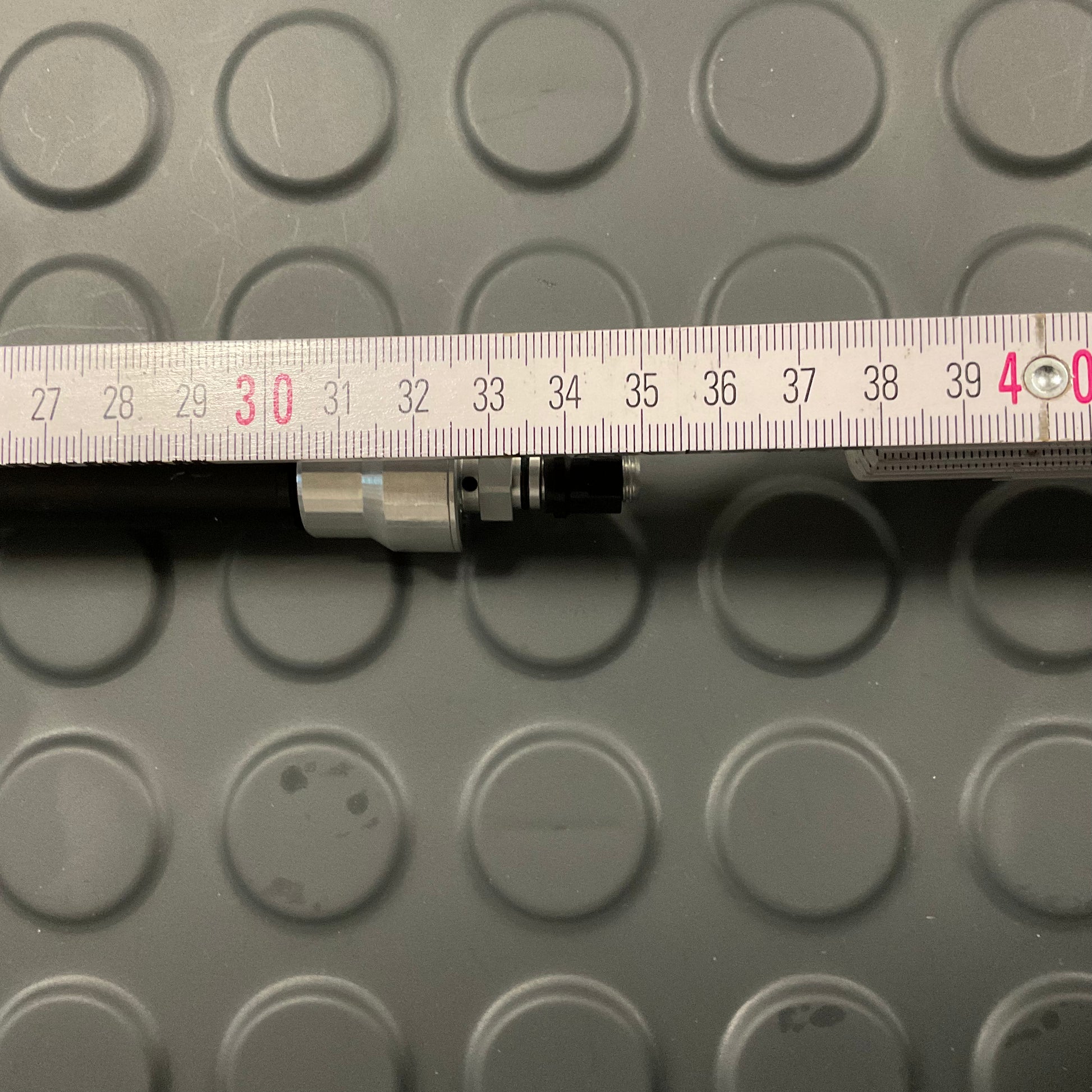

Listed dimensions

• Maximum overall length: 485 mm
• Minimum overall length: 350 mm

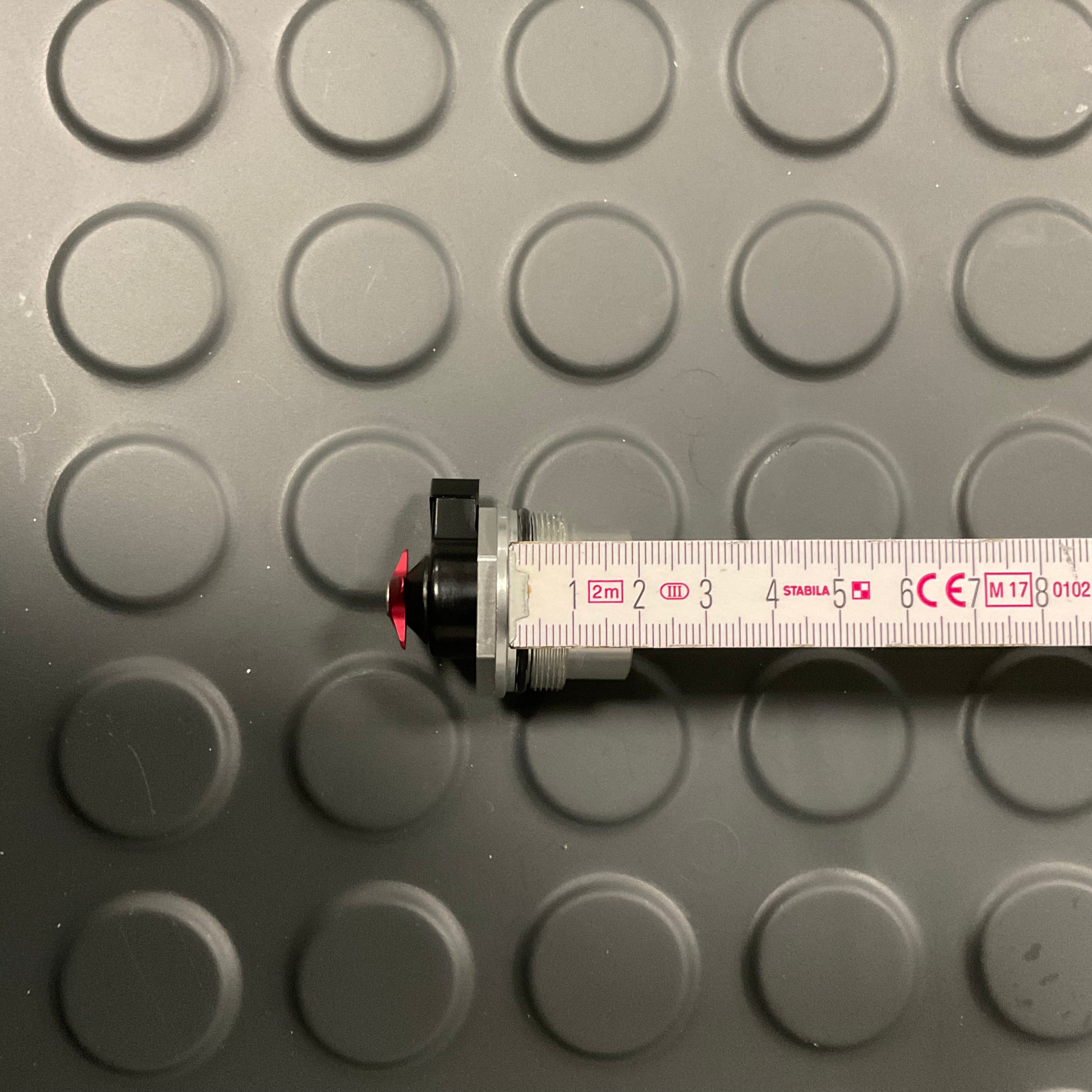

• Thread diameter: 29.5 mm

These measurements and the 120 mm application are retained from the existing shop information. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall cartridge length is not the same as fork travel.

Identification and compatibility

Archived FOX documentation describes an F120 RL Remote fork with open-bath damping, but a direct parts-list link between that fork and 820-04-153 has not been located during this review. No exact model year or confirmed FIT/open-bath classification is therefore specified for this item.

Match the complete part number, damper design, mounting interfaces, dimensions and remote mechanism to the service specification for your exact fork before ordering. Do not assume universal compatibility with FOX 32 forks or other remote systems.

Supplied equipment and installation

A handlebar remote lever, cable and housing are not specified as included. Confirm the supplied hardware, item condition and service history before purchasing.

Installation and remote setup should be carried out by an experienced suspension mechanic following the correct instructions for the identified fork and damper version.
