FOX 32 Remote FIT Damper Cartridge 120 mm – 820-08-054

FOX 32 remote damper cartridge, listed as a FIT version for a 120 mm travel configuration. Listed part number: 820-08-054.

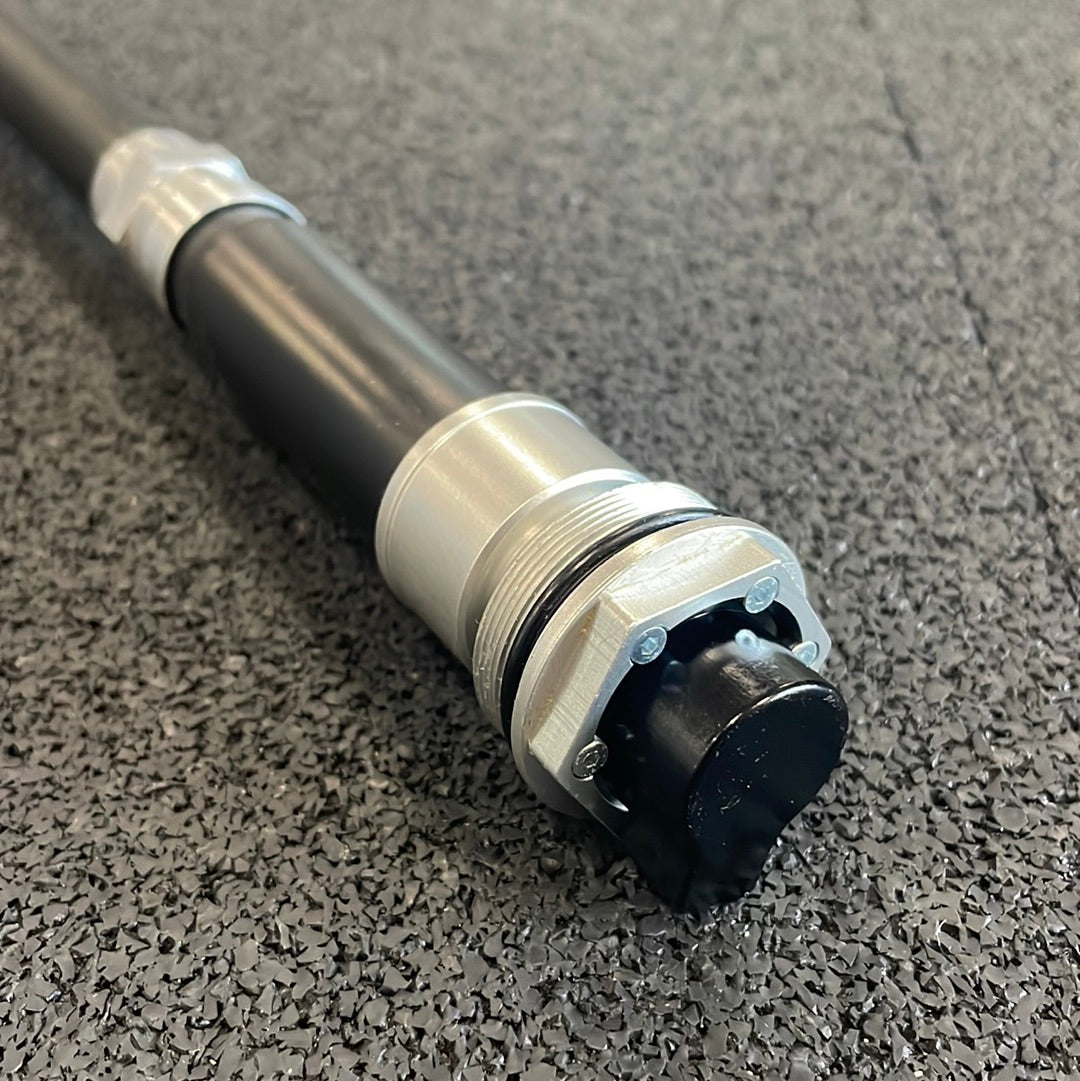

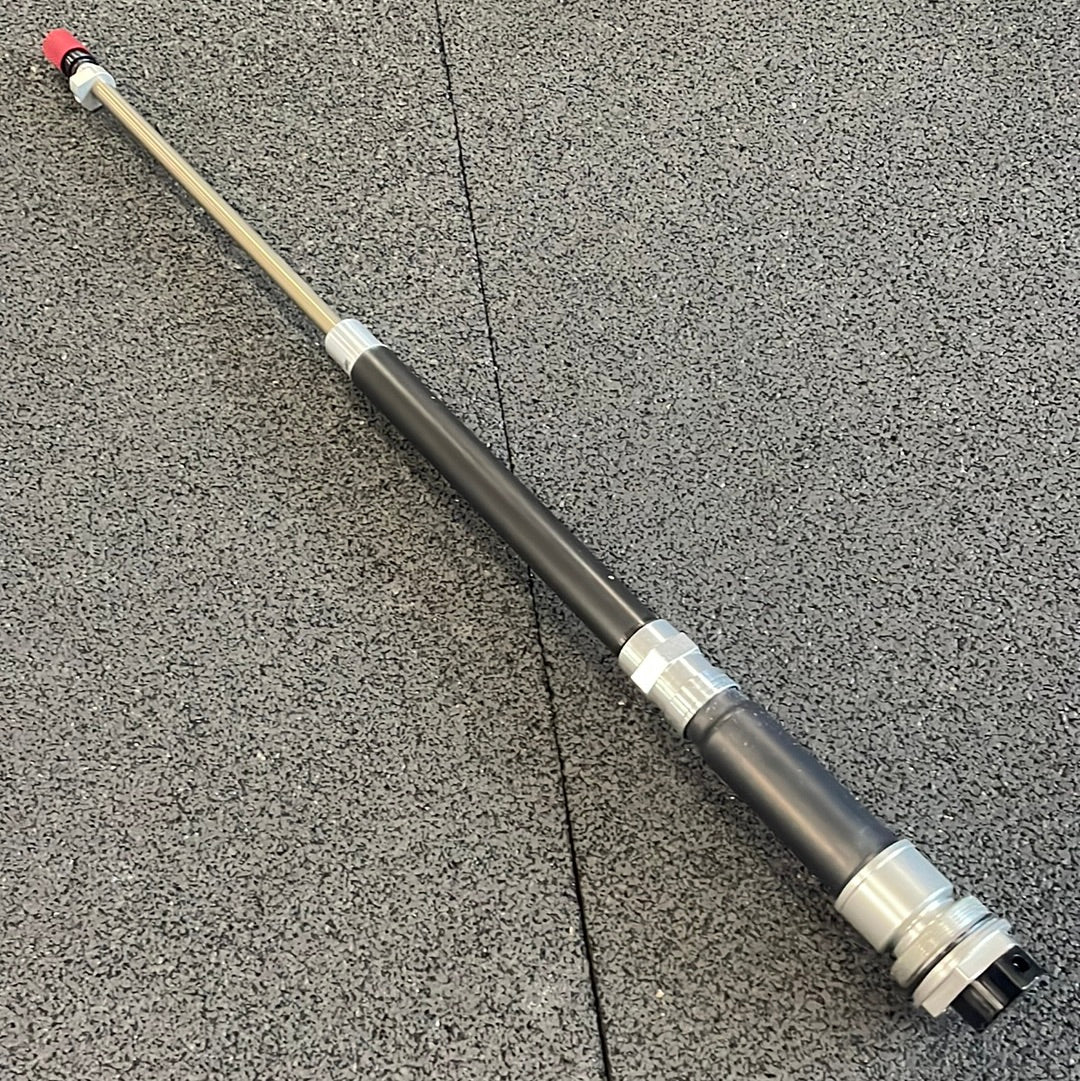

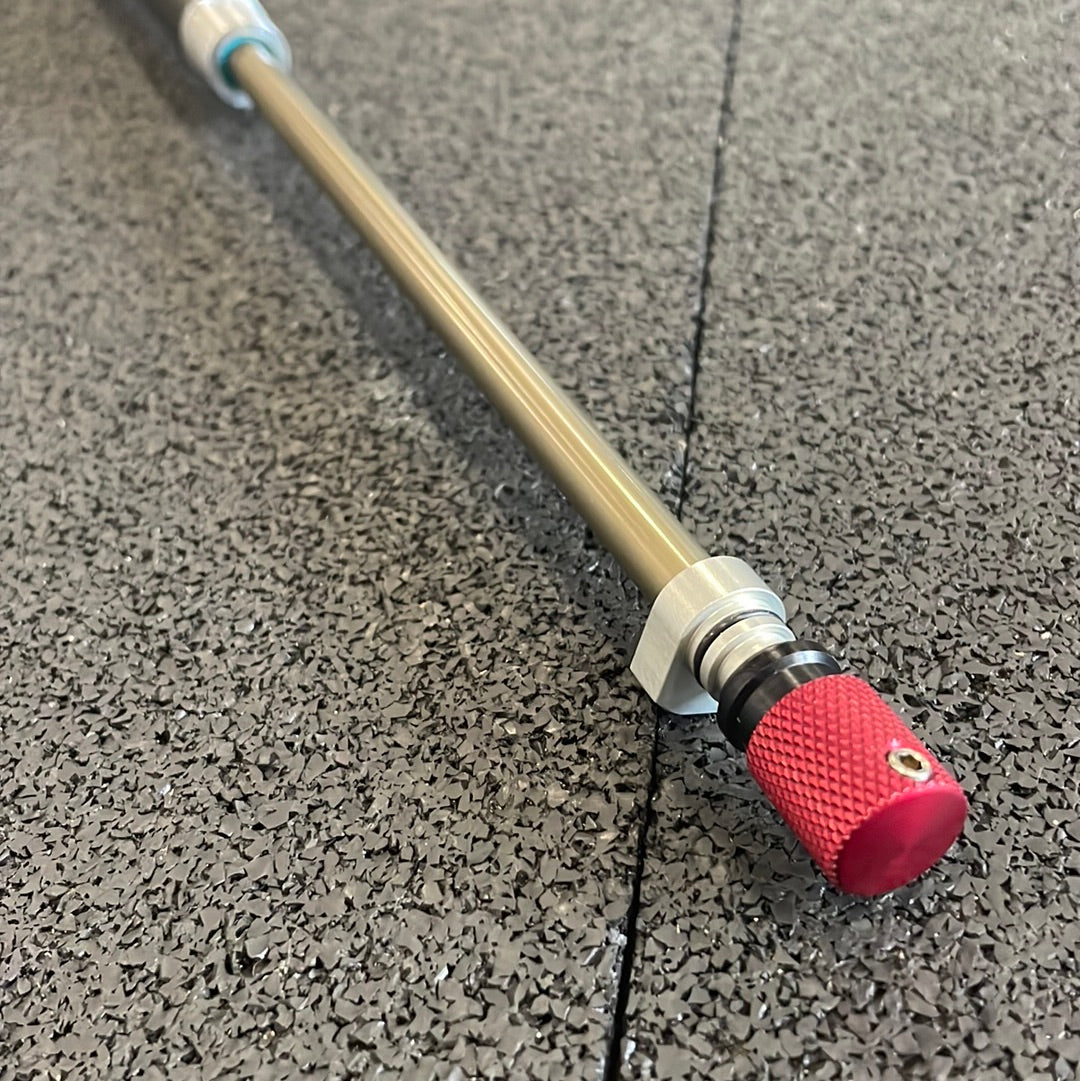

The photos show a cartridge assembly with a remote interface and a red adjuster at the opposite end. This is a damping component, not an air spring or complete fork.

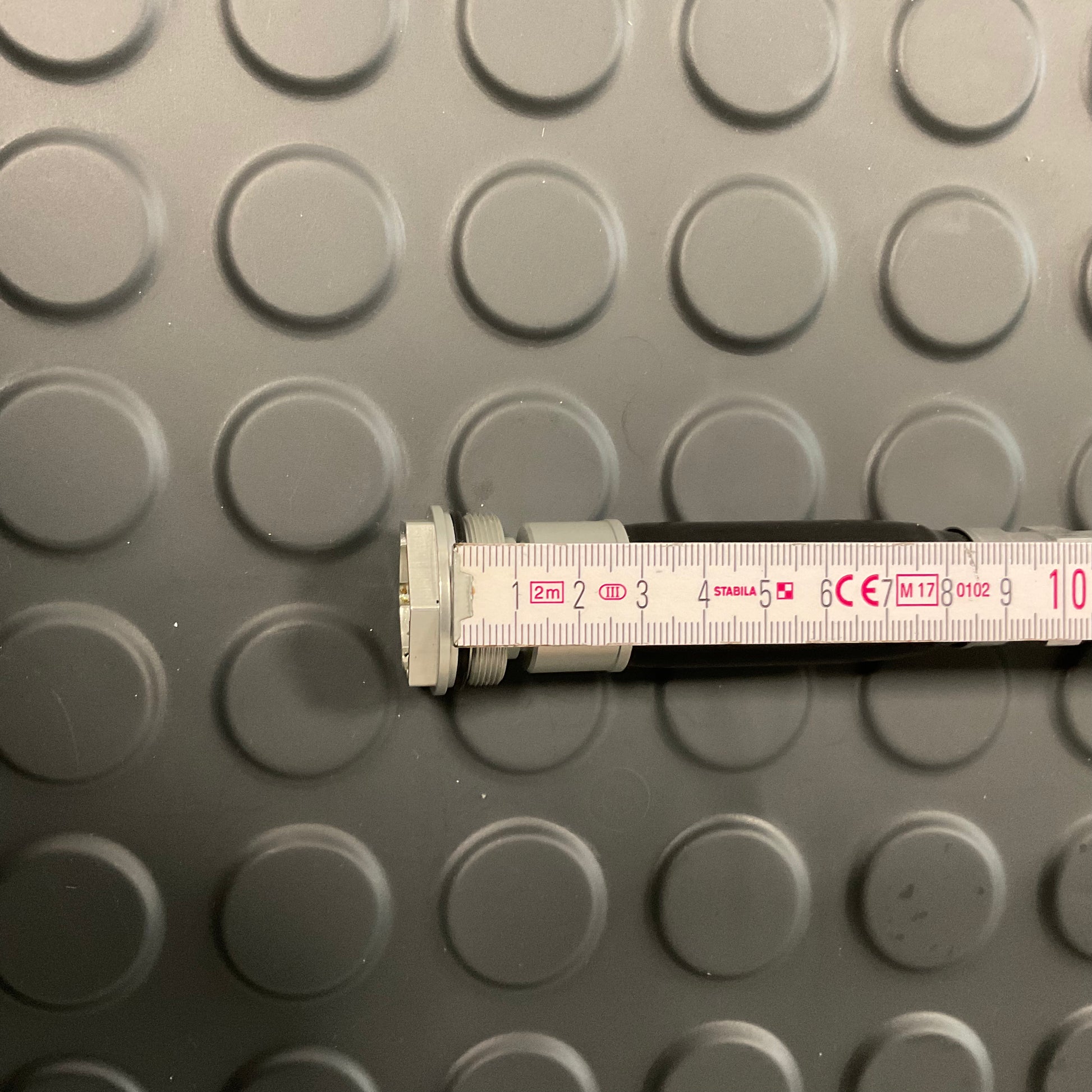

Listed dimensions

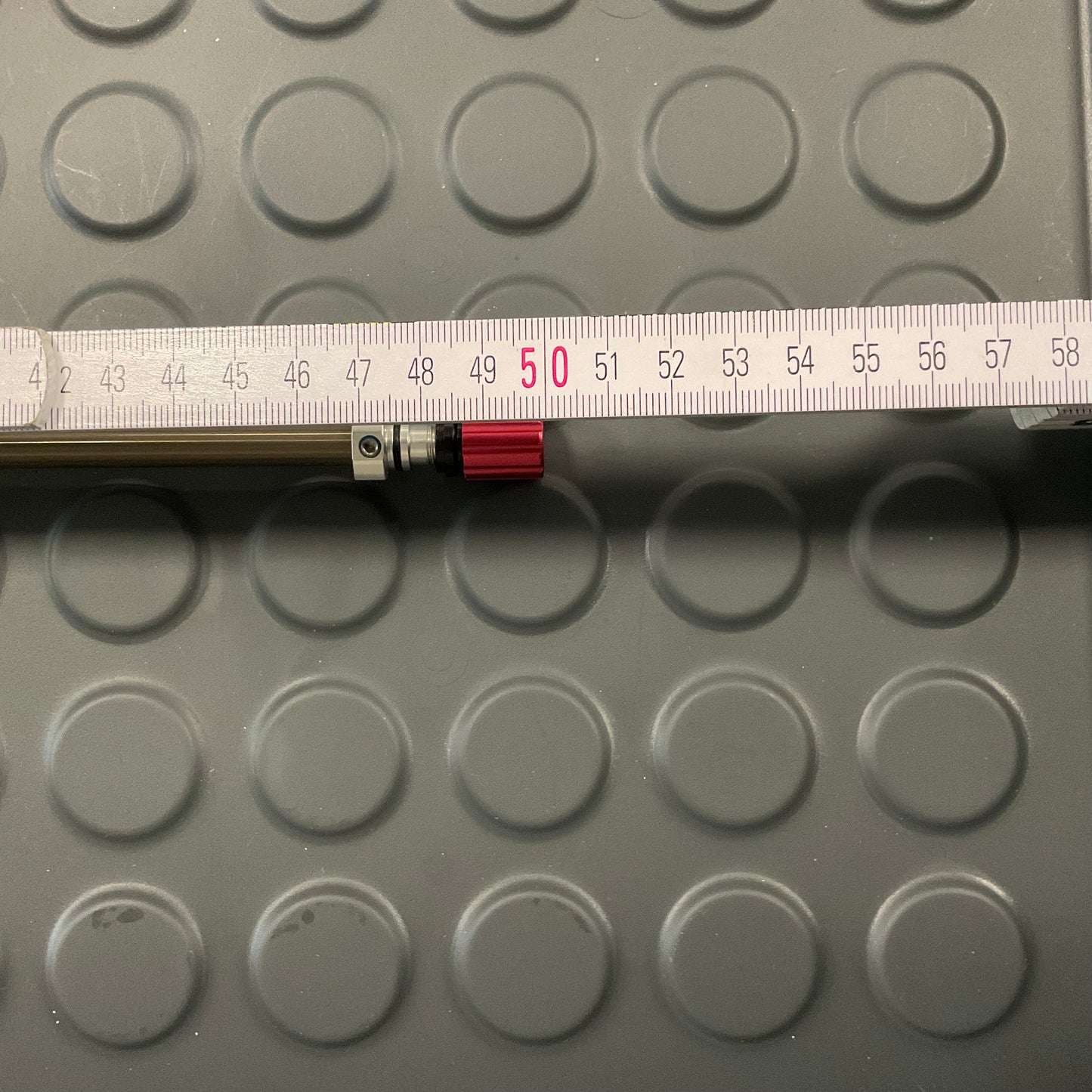

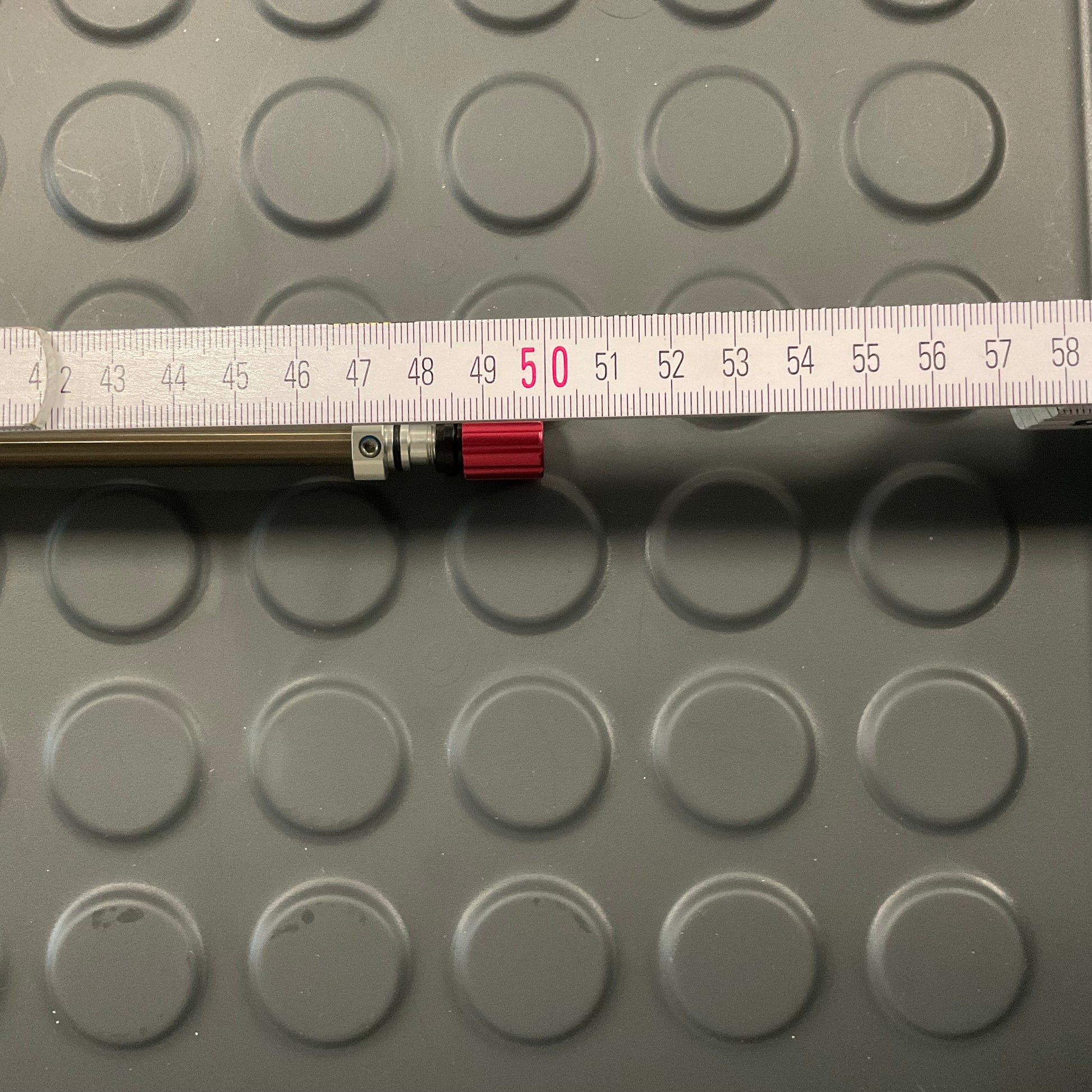

• Maximum overall length: 500 mm

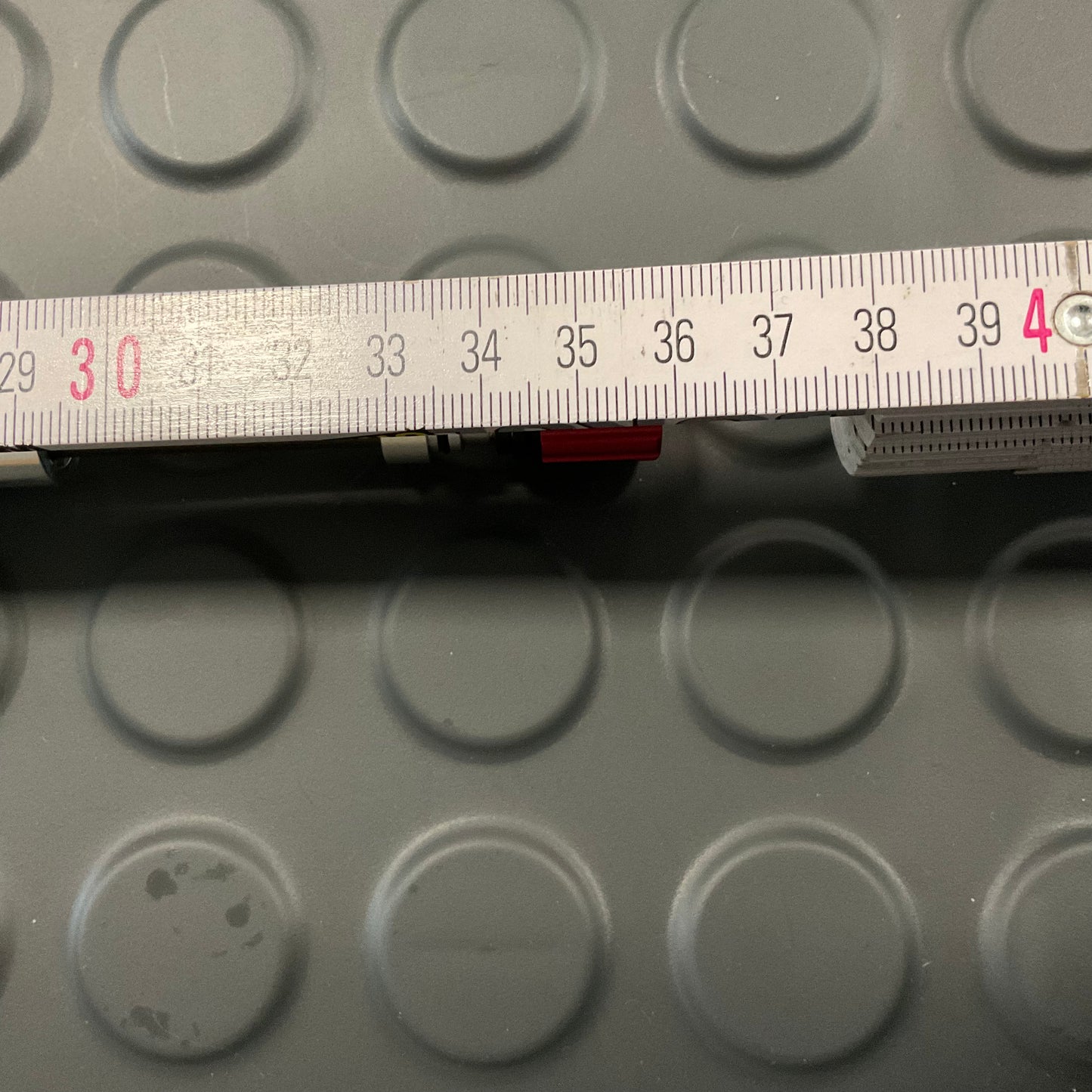

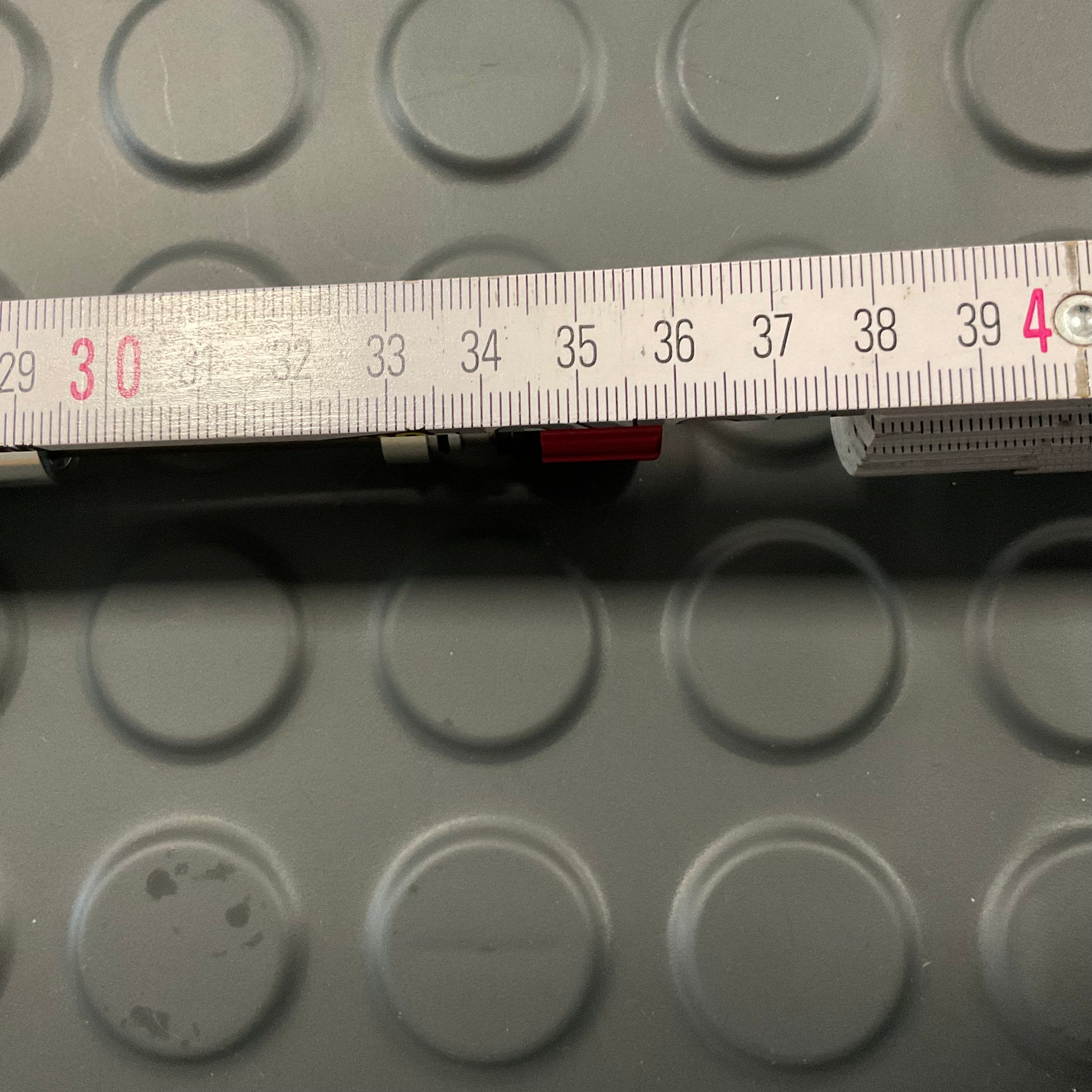

• Minimum overall length: 359 mm
• Thread diameter: 29 mm

These dimensions, the FIT identification and the 120 mm application come from the existing shop information. Measurement reference points, thread pitch and tolerances have not been independently verified. Overall cartridge length is not the same as fork travel.

Identification and compatibility

A direct FOX archive parts-list match for 820-08-054 has not been located during this review. The previous title also used the CTD designation, but CTD functionality has not been established from the available documentation and photos. This item is therefore not advertised as a confirmed CTD cartridge.

Confirm the complete part identification, fork model, model year, damper version, mounting interfaces and remote mechanism before ordering. Do not assume compatibility with every FOX 32 120 mm fork or with CTD, FIT4 and other remote systems.

Supplied equipment and installation

A handlebar remote lever, cable and housing are not specified as included. Confirm the supplied hardware, condition and service history before purchase.

Installation and remote setup should be carried out by an experienced suspension mechanic using the instructions for the identified fork and damper version.
