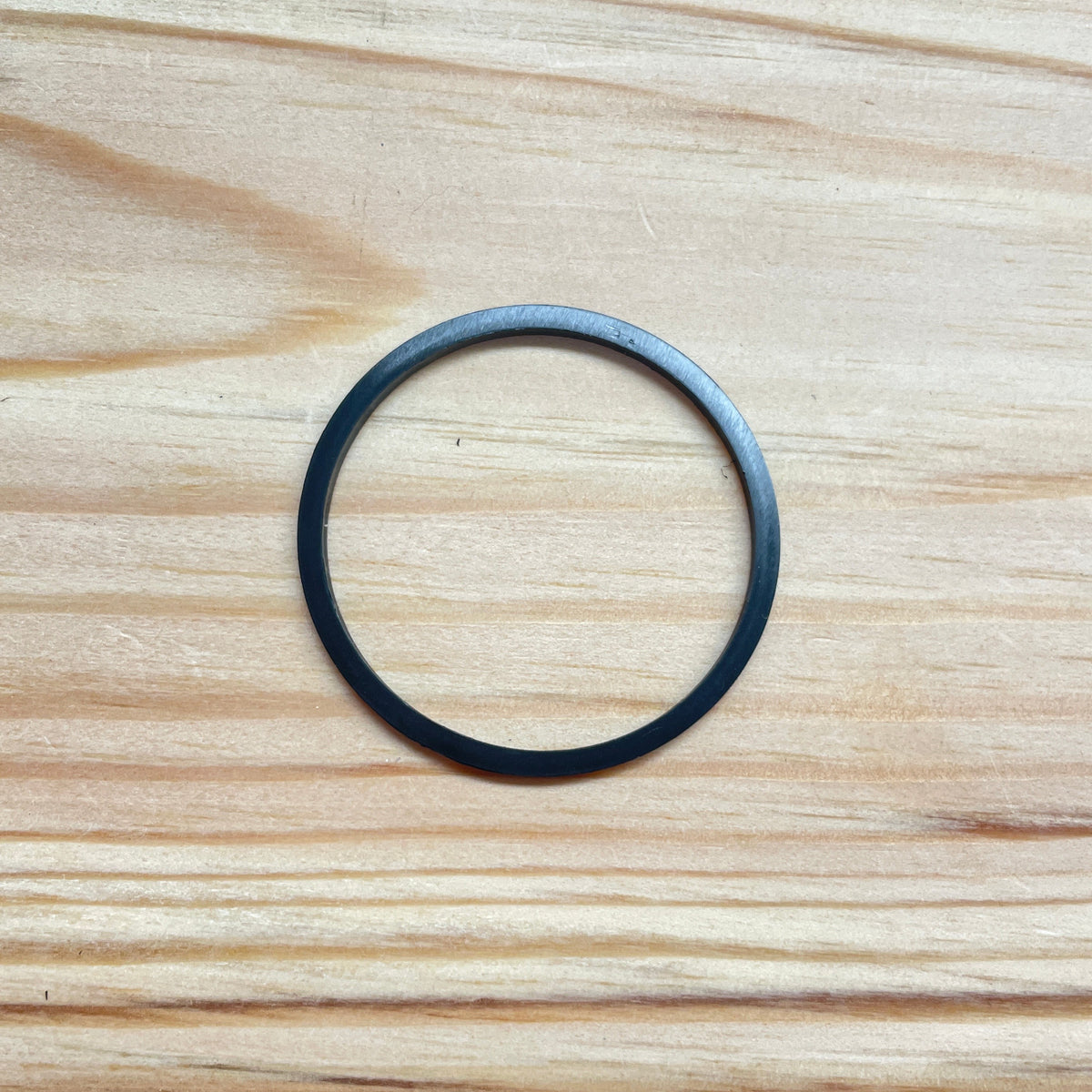

FOX DRCV Eyelet Base Spacer – 233-00-182

FOX DRCV eyelet base spacer for compatible rear shock assemblies. Part number: 233-00-182. This is a replacement spacer ring, not a complete eyelet, mounting bushing or shock.

Documented identification and dimensions

A specialist suspension parts listing identifies 233-00-182 as “Spacer: DrCV Eyelet Base, [1.475 ID, 1.650 OD, .080 TLG], PR Homopolymer”.

• Inside diameter: 1.475 in (approximately 37.47 mm)
• Outside diameter: 1.650 in (approximately 41.91 mm)
• Thickness: 0.080 in (approximately 2.03 mm)
• Material designation in the supplier record: PR Homopolymer

Dimensions are taken from the specialist supplier's listing, not from independent measurement of the stocked item.

Application and compatibility

FOX's 2015 FLOAT CTD DRCV RG service procedure documents a DRCV air sleeve spacer at the eyelet interface. However, the procedure text checked does not explicitly identify that spacer as 233-00-182. It therefore does not establish a confirmed 2015 application or a wider model-year range for this part.

Match part number 233-00-182, dimensions and spacer profile to the parts specification for your exact DRCV shock before ordering. Do not assume compatibility with every DRCV generation or use this component as a generic volume or travel spacer.

Installation should be carried out by an experienced suspension technician following the correct service procedure for the identified shock.
