FOX XV1 Rear Shock Air Sleeve 9.50 × 3.00 – 806-29-072

FOX XV1 rear shock air sleeve assembly, part number 806-29-072. The historical FOX parts list identifies this item as “06 Sleeve Assembly XV1” for a 9.50 × 3.00-inch shock application.

Archived specifications

• Model-year reference in the parts list: 2006
• Version: XV1
• Listed bore: 1.500 in (38.10 mm)
• Listed outside diameter: 1.950 in (49.53 mm)
• Listed overall length: 4.850 in (123.19 mm)
• Listed shock size: 9.50 × 3.00 in (241.3 mm eye-to-eye × 76.2 mm stroke)

These are archived specifications, not independent measurements of the stocked item. The shock-size reference describes the intended application; it is not the sleeve's physical length.

Identification and compatibility

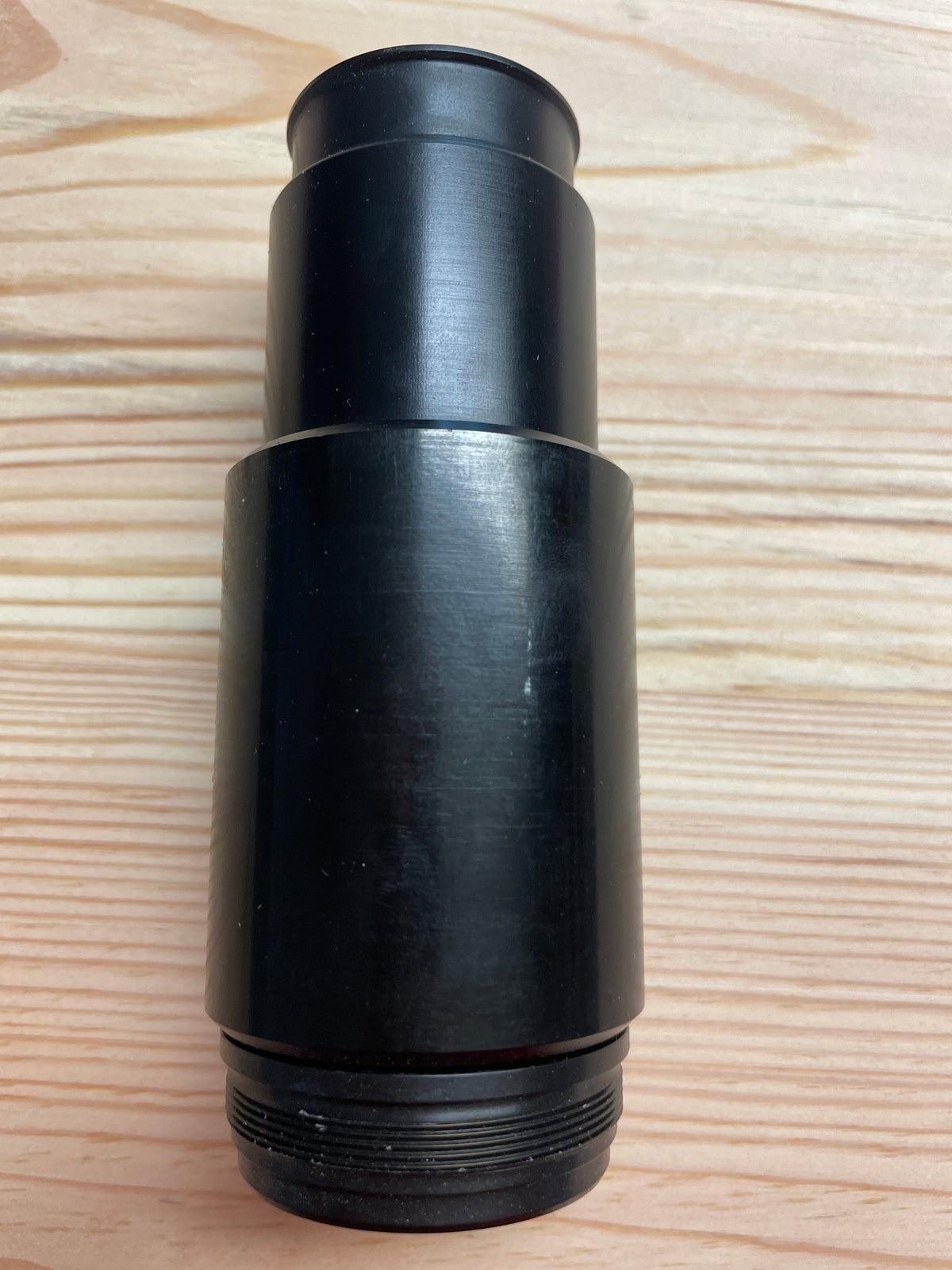

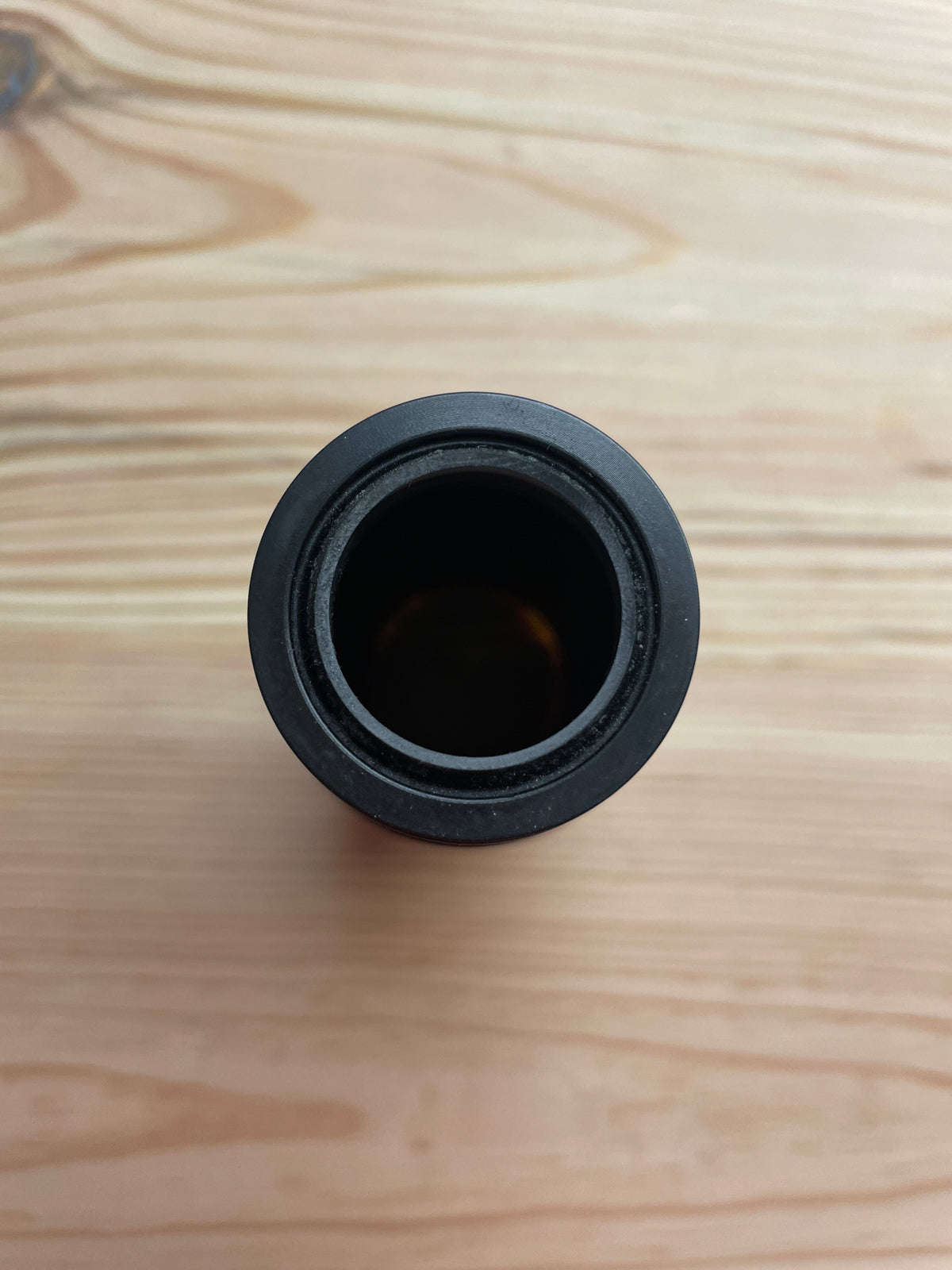

The photographs show a black, stepped cylindrical sleeve with an external threaded end. The exact part-number entry does not name a specific shock model, so no additional model designation or wider model-year range is claimed here.

Match the complete part number, XV1 version, dimensions and interfaces to the service documentation for your exact shock before ordering. Do not assume interchangeability with XV2 or other air sleeves, or compatibility based on shock size alone.

Supplied equipment

This listing is for the pictured air sleeve, not a complete rear shock or fork component. The presence and condition of internal seals, bearings and wipers have not been independently verified. Additional service parts, fluids and hardware are not specified as included.

Installation should be carried out by an experienced suspension technician following the correct service procedure for the identified shock.
