FOX FLOAT Rear Shock Damper Body – 204-54-010

FOX FLOAT rear shock damper body, listed under shop reference 204-54-010. The historical FOX FLOAT BODIES parts list documents this component as 204-54-010-A. The -A suffix was omitted when the shop record was created; it does not indicate a different size for this item.

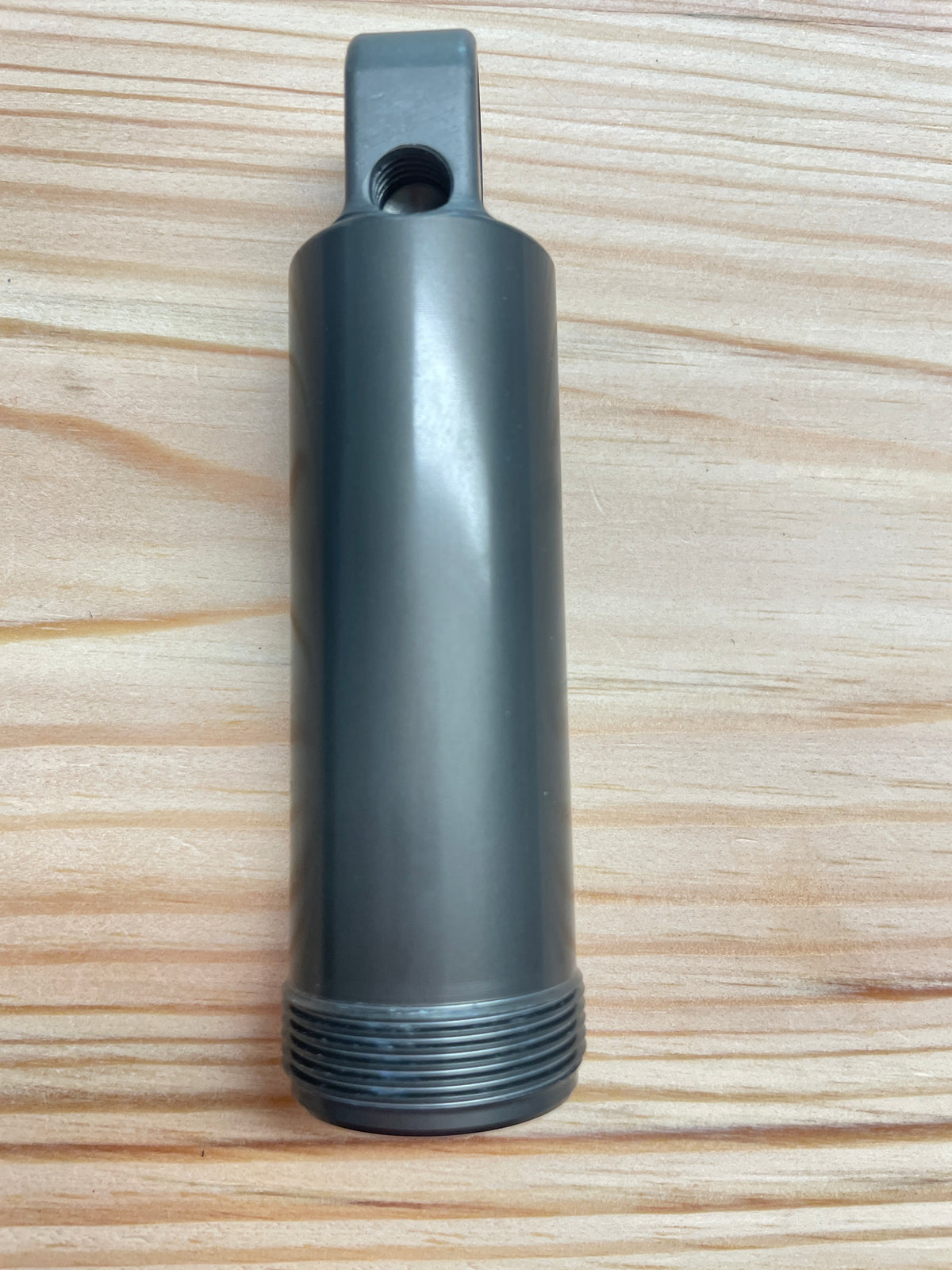

The photograph shows a dark cylindrical body with an externally threaded end and an integral mounting end. This is a replacement body component, not a complete rear shock or an air sleeve.

Archived specifications

• FOX archive reference: 204-54-010-A
• Shop reference: 204-54-010
• Component family: FLOAT damper body
• Bore: 0.940 in (approximately 23.88 mm)
• Outside diameter: 1.060 in (approximately 26.92 mm)
• Overall body length: 4.062 in (approximately 103.17 mm)
• Thread: 1.125-20 UN-2A
• Associated shock eye-to-eye length: 7.63 in (approximately 193.8 mm), as printed in the archive

Dimensions are taken from the historical FOX parts list, not from independent measurements of the stocked item. The eye-to-eye dimension describes the associated complete shock, not the physical length of this body.

Compatibility

Documented as a FOX FLOAT damper body. The archive entry does not establish a specific model-year range or shock stroke. The date coverage of the historical document must not be treated as a compatibility range.

Before ordering, compare the body reference, dimensions, thread and mounting interface with the parts specification for your exact shock. Do not assume universal compatibility across FLOAT, RP-series, CTD, DPS or other FOX shocks.

Supplied component

This listing is for the pictured damper body. Internal piston and shaft assemblies, seals, mounting hardware, fluids and service tools are not specified as included. Confirm item condition and internal bore condition before purchase.

Installation and internal damper service should be carried out by a qualified suspension technician using the correct procedure for the identified shock.
